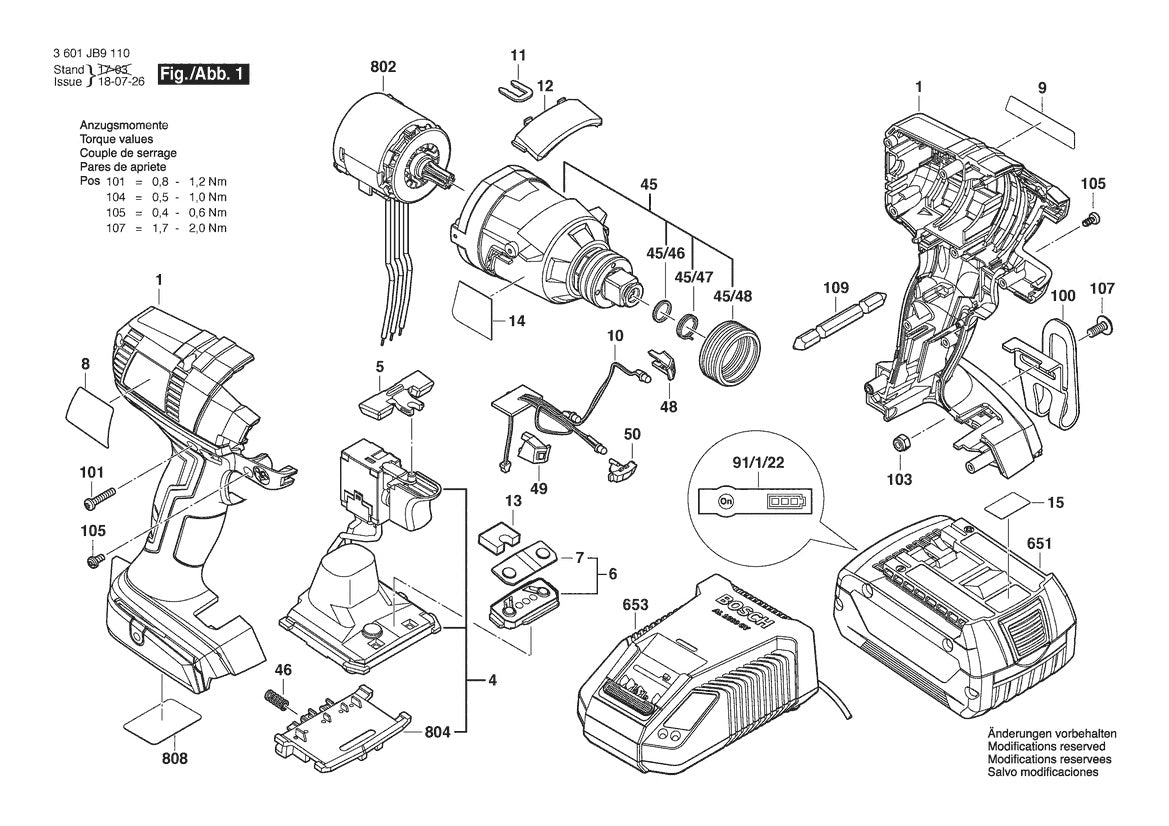

3601JB9110 Bosch Impact Wrench Parts Diagram

3601JB9110 Bosch Impact Wrench Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
101
2609110201 Torx Flat-head Screw by Bosch
$3.91
46
1609280477 Spring | Genuine OEM Bosch Part
$3.91
109
2609110343 Screwdriver Blade by Bosch
$3.91
103
2609110835 Nut | Genuine OEM Bosch Part
$3.91
107
2609110834 Screw | Genuine OEM Bosch Part
$3.91
11
2609110838 Clip | Genuine OEM Bosch Part
$3.91
1
2609101143 Housing | Genuine OEM Bosch Part
$31.58
4
1607233470 Electronics Module by Bosch
$85.41
5
2609101067 Lever | Genuine OEM Bosch Part
$3.91
6
2609101068 Button | Genuine OEM Bosch Part
$3.91
7
2609133596 Label | Genuine OEM Bosch Part
$3.91
8
2609134292 Label | Genuine OEM Bosch Part
$3.91
9
2609134291 Label | Genuine OEM Bosch Part
$3.91
10
2609199465 Electronics Module by Bosch
$12.34
12
2609111415 Cover | Genuine OEM Bosch Part
$14.04
13
2609170193 Protector | Genuine OEM Bosch Part
$3.91
14
1600A01P7G Label | Genuine OEM Bosch Part
$3.91
15
2609134293 Label | Genuine OEM Bosch Part
$3.91
45
2609199372 Gear Box | Genuine OEM Bosch Part
$91.40
45
2609170157 O-ring | Genuine OEM Bosch Part
$3.91
46
2609170157 O-ring | Genuine OEM Bosch Part
$3.91
45
2609111262 Retaining Ring by Bosch
$4.89
47
2609111262 Retaining Ring by Bosch
$4.89
45
2609170185 Sleeve | Genuine OEM Bosch Part
$3.91
48
2609170185 Sleeve | Genuine OEM Bosch Part
$3.91
48
2609101069 Lens | Genuine OEM Bosch Part
$3.91
49
2609101070 Lens | Genuine OEM Bosch Part
$3.91
50
2609101083 Lens | Genuine OEM Bosch Part
$3.91
100
2609111584 Clip | Genuine OEM Bosch Part
$3.91
105
2609111447 Screw | Genuine OEM Bosch Part
$3.91
802
2609199548 Motor | Genuine OEM Bosch Part
$99.23
804
1609280474 Contact | Genuine OEM Bosch Part
$17.61
808
2609133989 Nameplate | Genuine OEM Bosch Part
$3.91
91
2601115537 Label | Genuine OEM Bosch Part
$3.91
1
2601115537 Label | Genuine OEM Bosch Part
$3.91
22
2601115537 Label | Genuine OEM Bosch Part
$3.91
View full details
