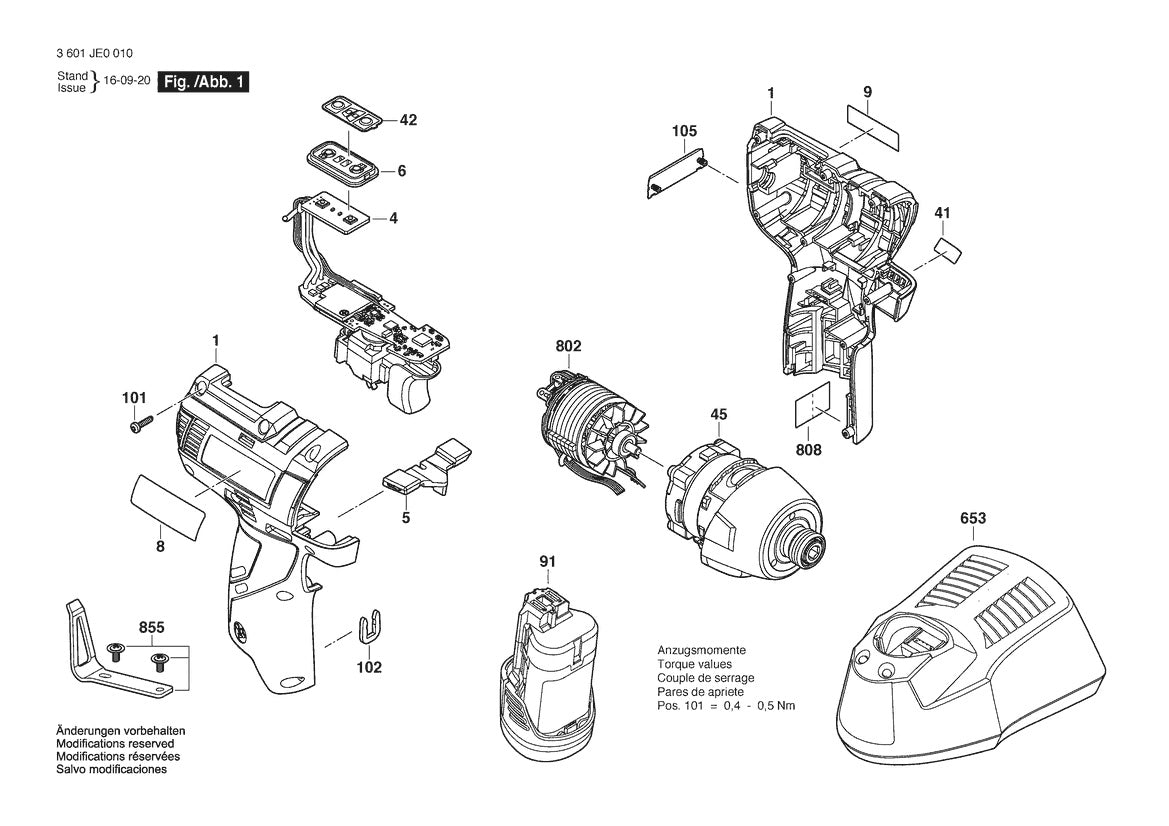

3601JE0010 Bosch Impact Wrench Parts Diagram

3601JE0010 Bosch Impact Wrench Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
653
2607225139 Charger | Genuine OEM Bosch Part
$53.92
102
2609110537 Clip | Genuine OEM Bosch Part
$3.91
101
2609110883 Screw | Genuine OEM Bosch Part
$3.91
653
1607000DH7 Charger | Genuine OEM Bosch Part
$60.81
4
1607233581 Electronics Module by Bosch
$93.23
1
2609101235 Housing | Genuine OEM Bosch Part
$15.77
5
2609101236 Adjusting Lever by Bosch
$3.91
6
2609101237 Button | Genuine OEM Bosch Part
$3.91
105
2609101394 Color Clip | Genuine OEM Bosch Part
$3.91
41
2609134168 Label | Genuine OEM Bosch Part
$3.91
42
2609134169 Label | Genuine OEM Bosch Part
$3.91
808
2609135162 Nameplate | Genuine OEM Bosch Part
$3.91
8
2609135938 Label | Genuine OEM Bosch Part
$3.91
9
2609136080 Label | Genuine OEM Bosch Part
$3.91
802
2609199661 Motor | Genuine OEM Bosch Part
$59.61
45
2609199730 Gear Box | Genuine OEM Bosch Part
$83.73
855
2609199986 Clip | Genuine OEM Bosch Part
$3.91
91
1607a350c8 12v Lithium-ion Battery by Bosch
$44.58
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
