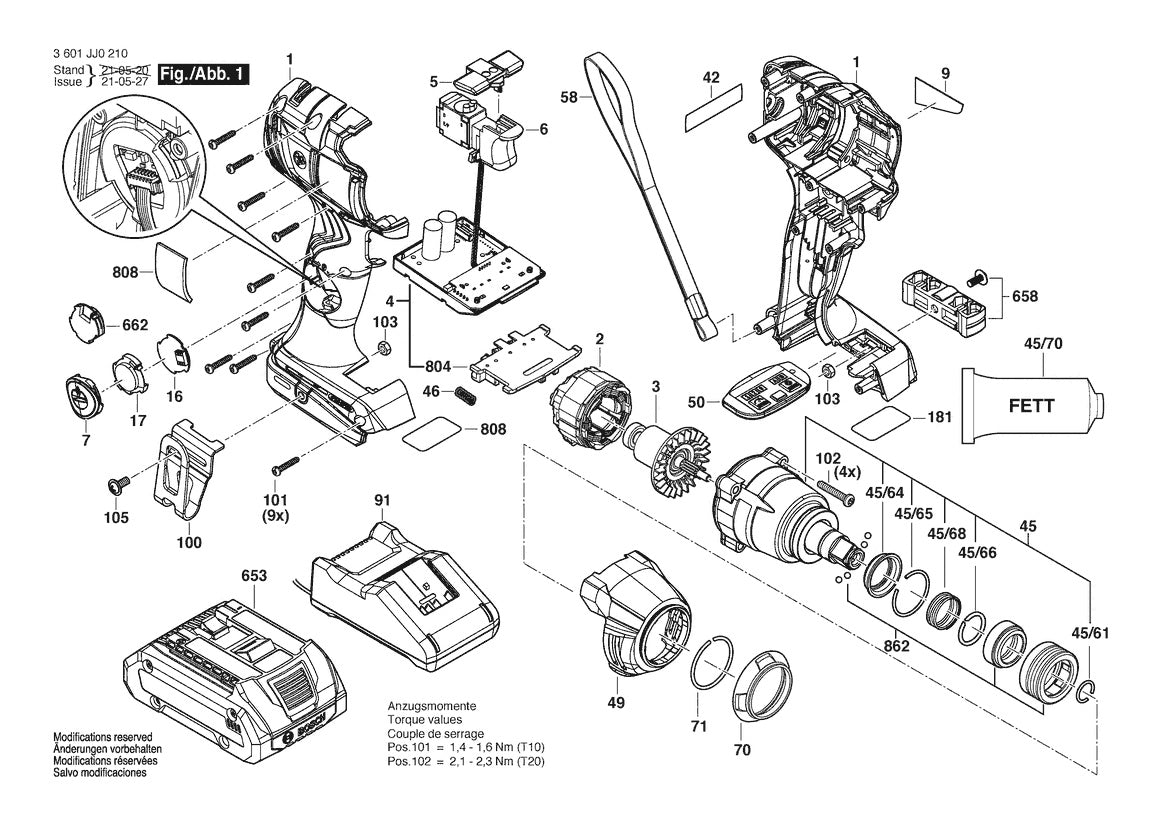

3601JJ0210 Bosch Impact Wrench Parts Diagram

3601JJ0210 Bosch Impact Wrench Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
1600A0144C Housing | Genuine OEM Bosch Part
$21.32
2
1619P15347 Stator | Genuine OEM Bosch Part
$31.26
4
16072335MK Electronics Module by Bosch
$99.23
5
1600A01YF1 Changeover Lever by Bosch
$7.01
6
2607202501 Switch | Genuine OEM Bosch Part
$19.68
7
1600A020BX Cover Unit | Genuine OEM Bosch Part
$8.10
9
160111C3VV Label | Genuine OEM Bosch Part
$3.91
16
1600A016CY Electronic Module by Bosch
$21.32
17
1600A016ML Cover | Genuine OEM Bosch Part
$3.91
42
160111C441 Label | Genuine OEM Bosch Part
$3.91
45
1600A01PG3 Gear Box | Genuine OEM Bosch Part
$69.56
46
1609280477 Spring | Genuine OEM Bosch Part
$3.91
49
1600A01YF5 Cover | Genuine OEM Bosch Part
$6.11
50
1600A01Z0M Separator | Genuine OEM Bosch Part
$9.32
58
2609100301 Strap | Genuine OEM Bosch Part
$3.91
70
1600A01YZ3 Protective Cap by Bosch
$6.23
71
1604601037 Retaining Ring by Bosch
$3.91
91
1607A350CH Gba18v63 Bulk 18v 6.3ah - Core by Bosch
$156.11
100
2609111584 Clip | Genuine OEM Bosch Part
$3.91
101
2609110201 Torx Flat-head Screw by Bosch
$3.91
102
061880004W Torx Flat-head Screw by Bosch
$3.91
103
2609110835 Nut | Genuine OEM Bosch Part
$3.91
105
2609110834 Screw | Genuine OEM Bosch Part
$3.91
181
1600A014J4 Warning Label by Bosch
$3.91
658
2609199748 Bit Holder | Genuine OEM Bosch Part
$4.89
662
1600A013WF Electronic Module by Bosch
$34.04
804
1609280820 Contacts | Genuine OEM Bosch Part
$6.11
808
160111A7ZX Nameplate... by Bosch
Call for Price call for price call for price
862
1600A01N0V Sleeve Assembly by Bosch
$5.33
4561
0618800045 Retaining Ring by Bosch
$3.91
4564
1600A00NR9 Holding Jacket by Bosch
$3.91
4565
1604601032 Retaining Ring by Bosch
$3.91
4566
1604601031 Retaining Ring by Bosch
$3.91
4568
0618800047 Compression Spring by Bosch
$3.91
4570
1600A002NE Grease Tube 45 Ml by Bosch
$21.32
