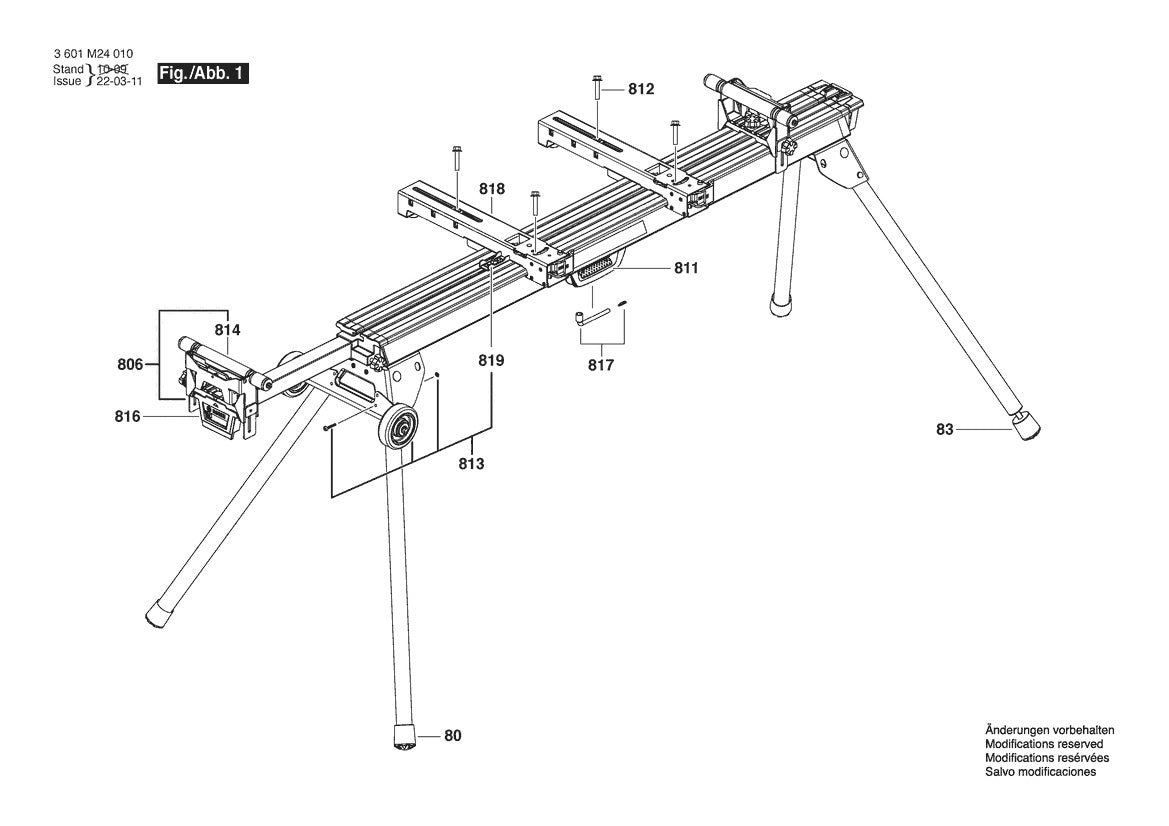

3601M24010 Bosch Miter Saw Parts Diagram

3601M24010 Bosch Miter Saw Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
80
1609B01931 Rubber Bushing by Bosch
$4.89
83
1609B01932 Adjustable Foot by Bosch
$5.38
806
1609B01850 Workpiece Support by Bosch
$48.72
811
1609B01858 Set Of Handles by Bosch
$14.04
812
1609B01859 Hardware Package by Bosch
$4.89
813
1609B01854 Wheel Set | Genuine OEM Bosch Part
$34.71
814
1609B01861 Roller Set | Genuine OEM Bosch Part
$17.96
816
1609B01864 End Cap | Genuine OEM Bosch Part
$14.33
817
1609B01857 Wrench Attachment by Bosch
$9.32
818
1609B02007 Mounting Device by Bosch
$70.27
819
1609B01863 Stop Bracket by Bosch
$8.27
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
