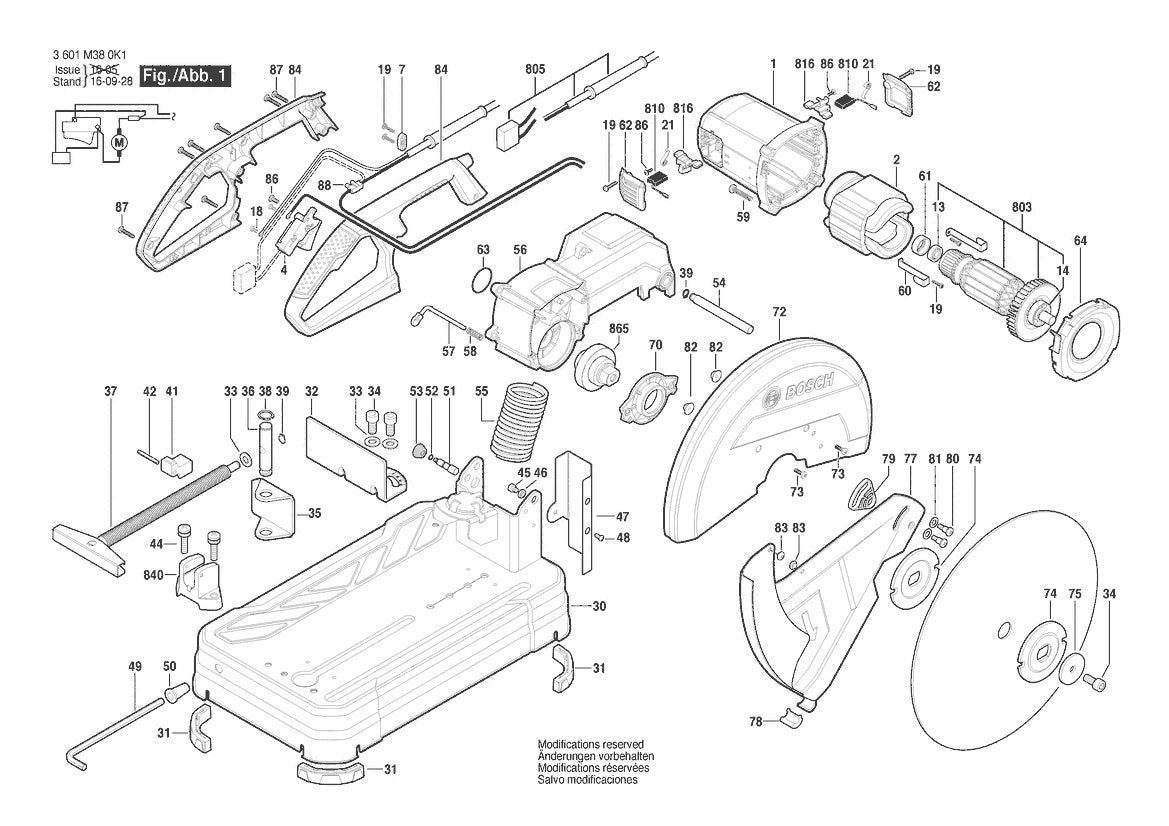

3601M380K1 Bosch Saw Parts Diagram

3601M380K1 Bosch Saw Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
61
1600206030 Rubber Ring | Genuine OEM Bosch Part
$3.91
810
1607014171 Carbon Brush Set by Bosch
$14.18
816
1604336053 Brush Holder by Bosch
$6.23
14
1609B00057 Ball Bearing by Bosch
$8.10
63
1609B00068 O-ring | Genuine OEM Bosch Part
$3.91
46
1609B01654 Nut | Genuine OEM Bosch Part
$3.91
41
1609B03576 Clamping Block by Bosch
$5.28
88
1609BP7059 Connection Block by Bosch
$3.91
38
1619P03755 Retaining Ring by Bosch
$3.91
42
1619P03762 Pin | Genuine OEM Bosch Part
$3.91
59
1619P03835 Screw | Genuine OEM Bosch Part
$3.91
13
1619P03850 Ball Bearing by Bosch
$3.91
73
1609B01483 Screw | Genuine OEM Bosch Part
$3.91
