Description

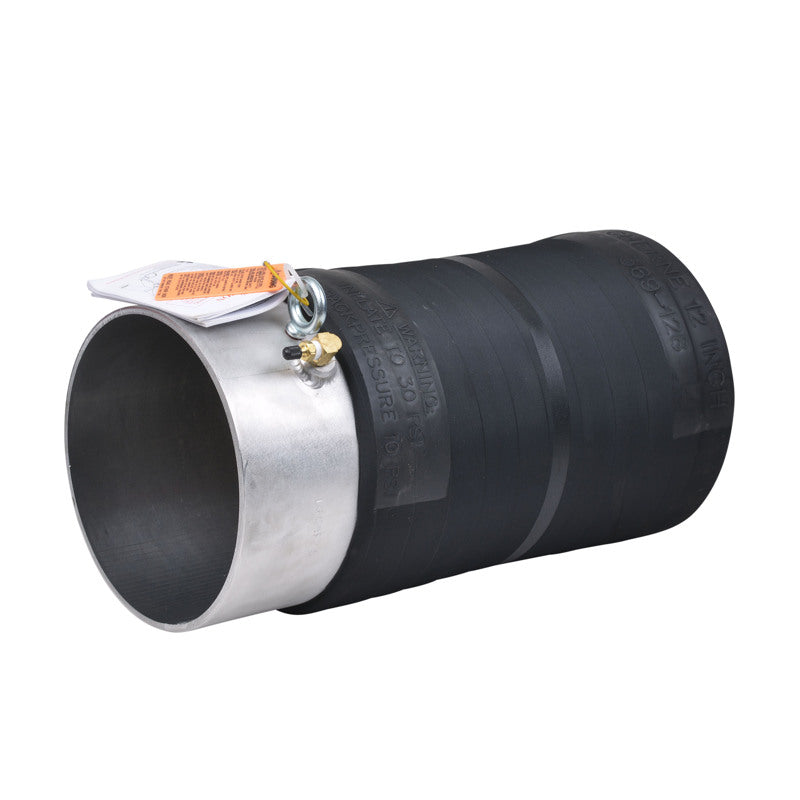

369188 Single-Size Big-Mouth, 18 IN. Large Bypass By Cherne

Cherne Original Big Mouth Flow-Through Plugs are the ideal solution for gravity bypassing or bypass pumping. Their removable tire valve allows for easy replacement, with optional quick disconnect.

Features:

  • Allows for largest bypass by pipe diameter
  • 6 in., 8 in., 10 in. sizes have threaded bypass
  • 12 in., 15 in., 18 in., 21 in., 24 in. have straight tube bypass

Specifications:

Deflated Length: 20 in. (508 mm)
Deflated Diameter: 11.13 in. (283 mm)
Nominal Size: 12 in. (300 mm)
Usage Range: 11.75 in. - 12.52 in. (300 - 318 mm)
Brand: Cherne
Maximum Back Pressure: 11 psi (0,76 bar)/25 ft. (7.6 M)
Inflation Pressure: 30 psi (2,1 bar)
Product Type: Single-Size Big Mouth
Color: Black
Inflation Thread: 1/4 in. (1)
Chain Eye Bolts: 3/8 in. (1)
