5008NB Circular Saw Assembly Parts

5008NB Circular Saw Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2516441 H.F.H. BOLT M8X20, 5007F BY MAKITA
$5.99
2
2242759 OUTER FLANGE, 5007F BY MAKITA
$8.79
3
2241517 INNER FLANGE, 5007FK BY MAKITA
$11.16
4
2858077 BEARING RETAINER 2236, 5008FA BY MAKITA
$5.99
5
3237896 SPINDLE, 5008NB BY MAKITA
$10.58
5
3237896 SPINDLE, 5008NB BY MAKITA
$10.58
6
2540321 WOODRUFF KEY 5, 5037NB BY MAKITA
$3.99
8
2570647 RING 15, 5007F BY MAKITA
$3.99
9
9612014 RETAINING RING S42, 5007NK BY MAKITA
$3.99
10
9111068 P.H. SCREW M4X8, NHP1310 BY MAKITA
$3.99
56
9111068 P.H. SCREW M4X8, NHP1310 BY MAKITA
$3.99
11
3414171 LEVER, 5007FK BY MAKITA
$3.99
12
3153252 SAFETY COVER, 5008FA BY MAKITA
$34.62
13
2317532 TEN. SPRING 5, 5008NBA BY MAKITA
$5.99
14
9111262 P.H. SCREW M4X16, 5402NA BY MAKITA
$3.99
15
3213626 HOUSING W/O BEARING, 5008NBA BY MAKITA
$28.64
16
2216877 H. GEAR, 5008NBA BY MAKITA
$22.08
17
9610559 RETAINING RING S15, 5007F BY MAKITA
$3.99
18
2120521 N. BEARING 1010, 5007F BY MAKITA
$11.16
19
5245360 FIELD ASS'Y, 5008NB BY MAKITA
$63.10
20
9112802 P.H. SCREW M5X55, JR3000V BY MAKITA
$3.99
23
6816255 INS. WASHER, 5007F BY MAKITA
$3.99
24
5148560 ARMATURE, 5008NBA BY MAKITA
$123.27
25
2415134 FAN 92, 5007NB BY MAKITA
$5.99
26
1631139 SHAFT LOCK, 5007F BY MAKITA
$5.99
27
2131025 DUST SEAL 12, 5007F BY MAKITA
$3.99
28
2111061 B. BEARING 6201LLB, 9227C BY MAKITA
$14.23
29
2134594 O RING 32, 5007F BY MAKITA
$3.99
30
3417365 WASHER 25, 5008B, 5008NBA BY MAKITA
$3.99
31
2134120 O RING 29, 5008NBA BY MAKITA
$3.99
32
2512471 P.H. SCREW M6X20, 5007F BY MAKITA
$3.99
33
2625026 RUBBER SLEEVE 6, 5007F BY MAKITA
$3.99
37
6870011 STRAIN RELIEF, 6013BR BY MAKITA
$3.99
39
9111199 P.H. SCREW M4X12, BO6040 BY MAKITA
$3.99
40
6511720 SWITCH, 5007FK BY MAKITA
$16.56
42
6642654 CORD (2X16X8;SJ), 5007NBA BY MAKITA
$18.82
44
9111482 P.H. SCREW M4X25, 5057KB BY MAKITA
$3.99
47
9112739 P.H. SCREW M5X50, HR2400 BY MAKITA
$3.99
48
CB155 CARBON BRUSH SET, 1949877 BY MAKITA
$16.21
50
2526240 KNOB M6, 5007F BY MAKITA
$5.99
53
9512258 SPRING PIN 640, 5007NBA BY MAKITA
$3.99
54
2518582 SCREW M6X15, 5007F BY MAKITA
$5.99
55
2519203 C.S.N. BOLT M6X30, 5007F BY MAKITA
$3.99
57
9314028 HEX NUT M8, 5037NB BY MAKITA
$3.99
58
3414155 LOCK PLATE, 5007F BY MAKITA
$3.99
59
3414163 LEVER PLATE, 5007F BY MAKITA
$5.99
60
9412010 F. WASHER 8, 5007NK BY MAKITA
$3.99
61
2670966 FLAT WASHER 8, 5008FA BY MAKITA
$3.99
62
1632509 BASE, 5008FA BY MAKITA
$63.50
63
2659655 C.S.N. BOLT M8X24, 5007N & 5477NB BY MAKITA
$3.99
64
9122122 C.S.H. SCREW M5X12, 5007NK BY MAKITA
$3.99
65
1632533 ANGULAR PLATE, 5008NB (TYPE 2) BY MAKITA
$25.58
66
2662135 H.S.H. SCREW M5X12, 5007F BY MAKITA
$3.99
7
2112067 B. BEARING 6202LLB, 5007F BY MAKITA
$12.24
22
2630029 RUBBER PIN 4, 5007MG BY MAKITA
$3.99
36
9111335 P.H. SCREW M4X18, N9501B BY MAKITA
$3.99
41
6825058 CORD GUARD, 2414NB BY MAKITA
$5.99
45
9531062 RIVET 05, HM1500 BY MAKITA
$3.99
49
6436504 BRUSH HOLDER CAP, 5007F BY MAKITA
$3.99
52
9411519 F. WASHER 6, 5007NB BY MAKITA
$3.99
34
1548881 BLADE CASE CPL.,5008FA BY MAKITA
$122.77
34A
2625018 RUBBER SLEEVE 6, 5005BA BY MAKITA
$3.99
34B
2512243 C.H. SCREW M6X28, 5005BA BY MAKITA
$3.99
901
4156031 FAN GUIDE, 5007NBA BY MAKITA
$3.99
21
2110316 BALL BEARING 608LLB, 9227C BY MAKITA
$11.91
43
1529289 MOTOR HOUSING COMPLETE, 5007NBA BY MAKITA
$21.85
51
Call for Price call for price call for price
46
Call for Price call for price call for price
400
Call for Price call for price call for price
402
Call for Price call for price call for price
900
Call for Price call for price call for price
View full details

Frequently asked questions

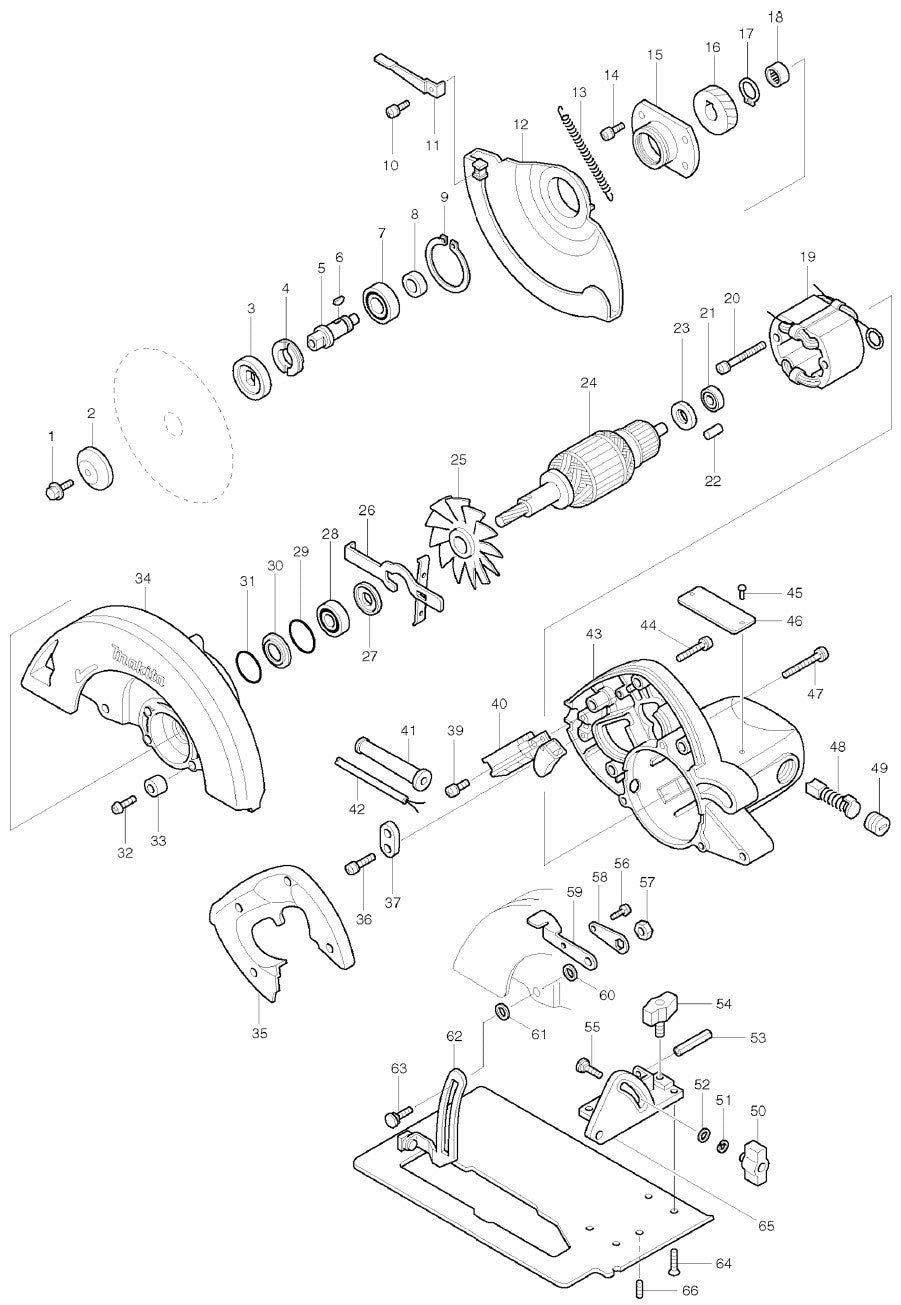

How do I use this diagram?
