Description

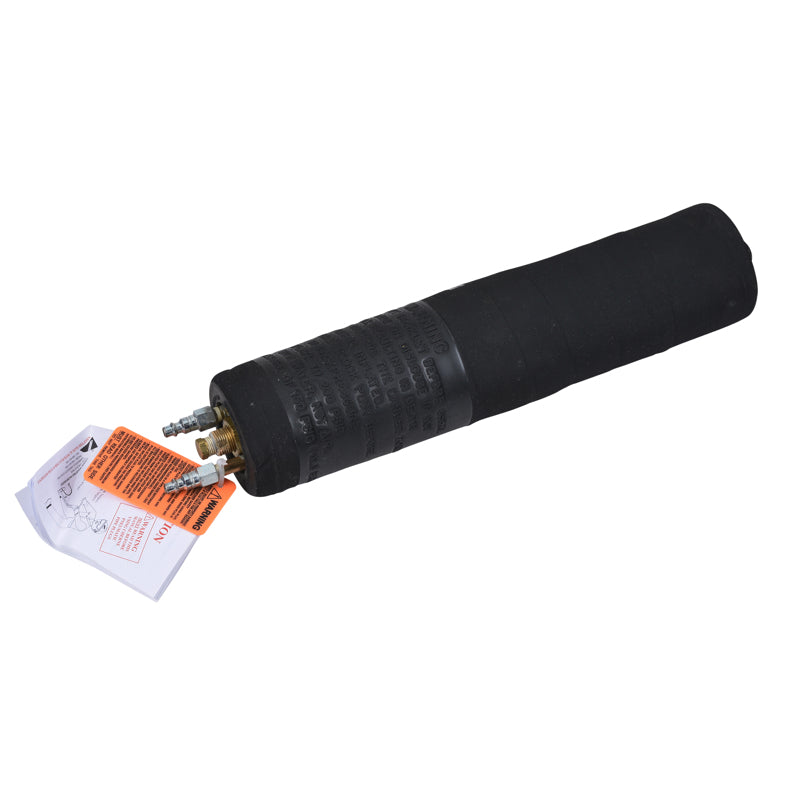

511088 4 in. - 8 in. High Pressure Plug By Cherne

Cherne® Multi-Size High Pressure Plugs are designed to handle 150 psi backpressure in applications such as water mains, force mains and industrial lines. Bonded rubber and metal eliminate separation resulting from high backpressures


Features:

  • Multi-size range use (6 plugs will cover pipe sizes from 4 in. to 42 in.)
  • The rubber and metal is bonded, eliminating fears of separation or rolling off resulting from high back pressures
  • Optimized design using steel, aramid and natural rubber to ensure longevity and robust construction
  • Water must be used to pressurize these plugs due to high working pressure
  • Removable and field repairable hardware
  • Safety/Over-inflation device
  • Made in USA
  • Air is purged from the plug during inflation
  • Air is purged from the test area (8 in.–12 in. to 38 in.–42 in. sizes)

Specification:

Usage Range: 3.8-8.2 in.
Deflated Length: 16 in.
Color: Black
Inflation Thread: 0.25 in.
Nominal Size: 4 in. - 8 in. (100 - 200 mm)
Product Group Primary Sku: Yes
Deflated Diameter: 3.8 in.
Brand: Cherne
Maximum Back Pressure: 150 PSI / 346 ft.
Inflation Pressure: 200 PSI / 13.8 bar
Product Type: Multi-Size High Pressure
