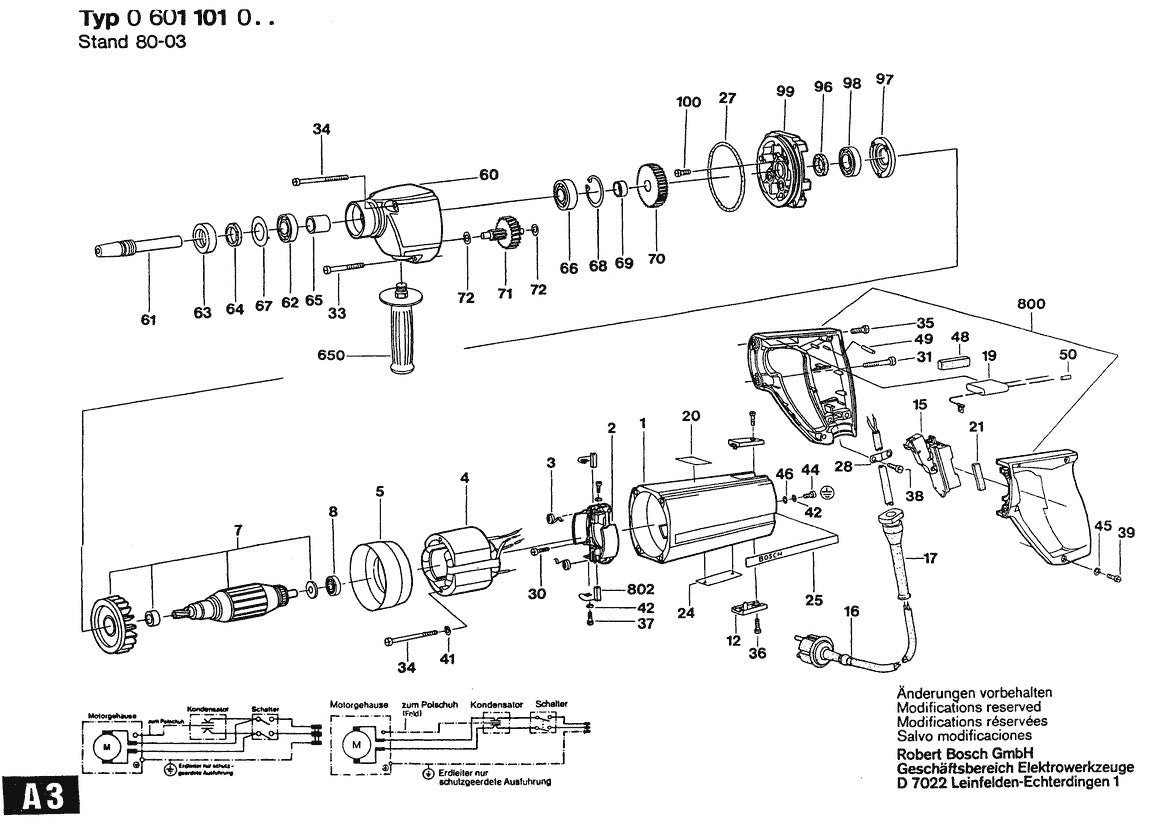

601101004 Bosch Electric Drill Parts Diagram

601101004 Bosch Electric Drill Parts Diagram

  • 601101004 Bosch Electric Drill Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
7
1900905018 Deep Groove Ball Bearing by Bosch
$21.54
29
1900905018 Deep Groove Ball Bearing by Bosch
$21.54
8
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
15
1607200037 Switch | Genuine OEM Bosch Part
$53.92
17
3600703011 Cord Protector by Bosch
$4.89
20
1601110058 Reference Plate by Bosch
$3.91
24
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
27
1600210006 O-ring | Genuine OEM Bosch Part
$3.91
28
1601302014 Fastening Clamp by Bosch
$3.91
30
2910211019 Sheet Metal Screw by Bosch
$4.89
31
2910021154 Screw | Genuine OEM Bosch Part
$3.91
34
2910021174 Screw | Genuine OEM Bosch Part
$3.91
34
1613412001 Sheet Metal Screw by Bosch
$3.91
36
2910021126 Cheese Head Screw by Bosch
$3.91
37
2910021118 Cheese Head Screw by Bosch
$4.89
38
2910001116 Cheese Head Screw by Bosch
$4.89
39
2910011128 Cheese Head Screw by Bosch
$3.91
39
2910611020 Sheet Metal Screw by Bosch
$4.89
44
2910110116 Slotted Pan-head Screw by Bosch
$3.91
45
2916681005 Spring Lock Washer by Bosch
$4.89
68
2916660014 C-clip | Genuine OEM Bosch Part
$3.91
72
1600100631 Shim | Genuine OEM Bosch Part
$3.91
100
1602025030 Auxiliary Handle by Bosch
$19.68
650
1607014101 Brush Set | Genuine OEM Bosch Part
$10.73
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
