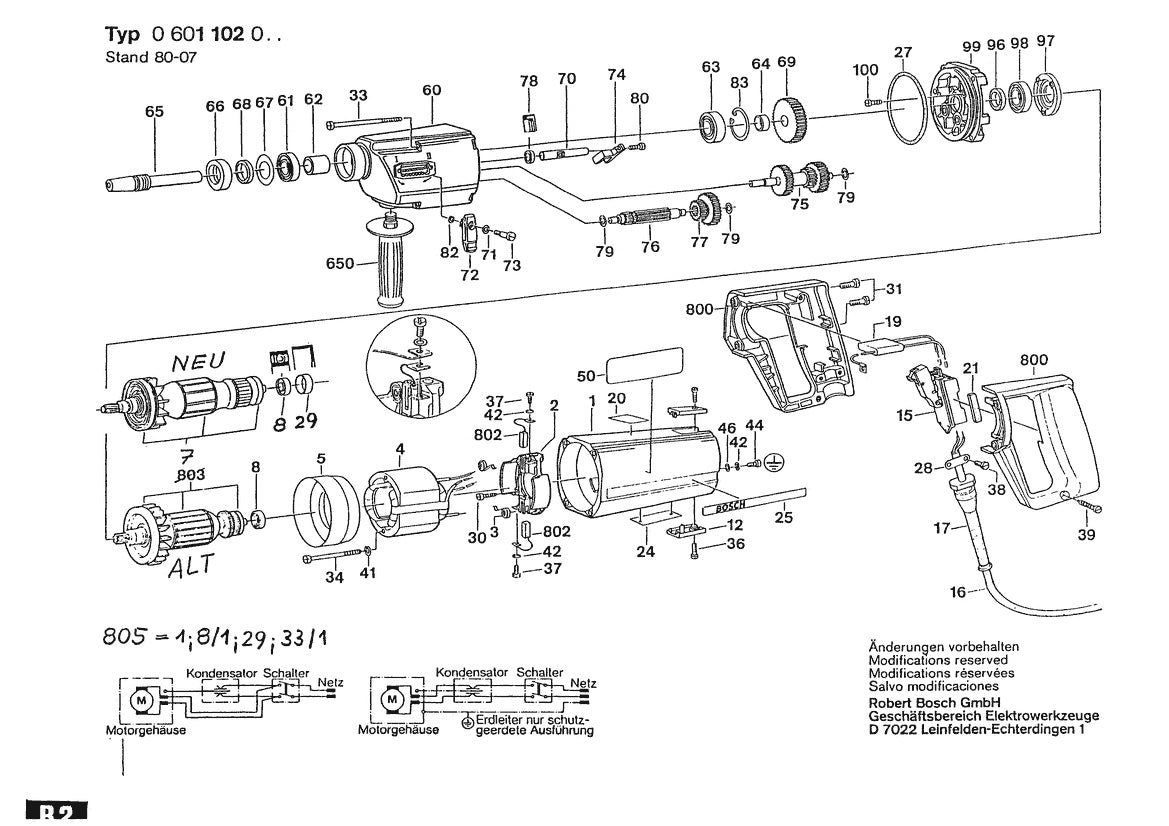

601102004 Bosch Electric Drill Parts Diagram

601102004 Bosch Electric Drill Parts Diagram

Skip to product information
1 of 1
Ref. Details
8
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
8
1607200037 Switch | Genuine OEM Bosch Part
$53.92
15
3600703011 Cord Protector by Bosch
$4.89
17
1601110058 Reference Plate by Bosch
$3.91
20
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
24
1600210006 O-ring | Genuine OEM Bosch Part
$3.91
27
1601302014 Fastening Clamp by Bosch
$3.91
28
2910211019 Sheet Metal Screw by Bosch
$4.89
30
2910021154 Screw | Genuine OEM Bosch Part
$3.91
31
2910021174 Screw | Genuine OEM Bosch Part
$3.91
34
2910021126 Cheese Head Screw by Bosch
$3.91
36
2910021118 Cheese Head Screw by Bosch
$4.89
37
2910611020 Sheet Metal Screw by Bosch
$4.89
39
2910110116 Slotted Pan-head Screw by Bosch
$3.91
44
1600100631 Shim | Genuine OEM Bosch Part
$3.91
79
2910021122 Cheese Head Screw by Bosch
$3.91
80
2916690002 Lock Washer | Genuine OEM Bosch Part
$4.89
82
2916660014 C-clip | Genuine OEM Bosch Part
$3.91
83
1602025030 Auxiliary Handle by Bosch
$19.68
100
1607014101 Brush Set | Genuine OEM Bosch Part
$10.73
View full details
