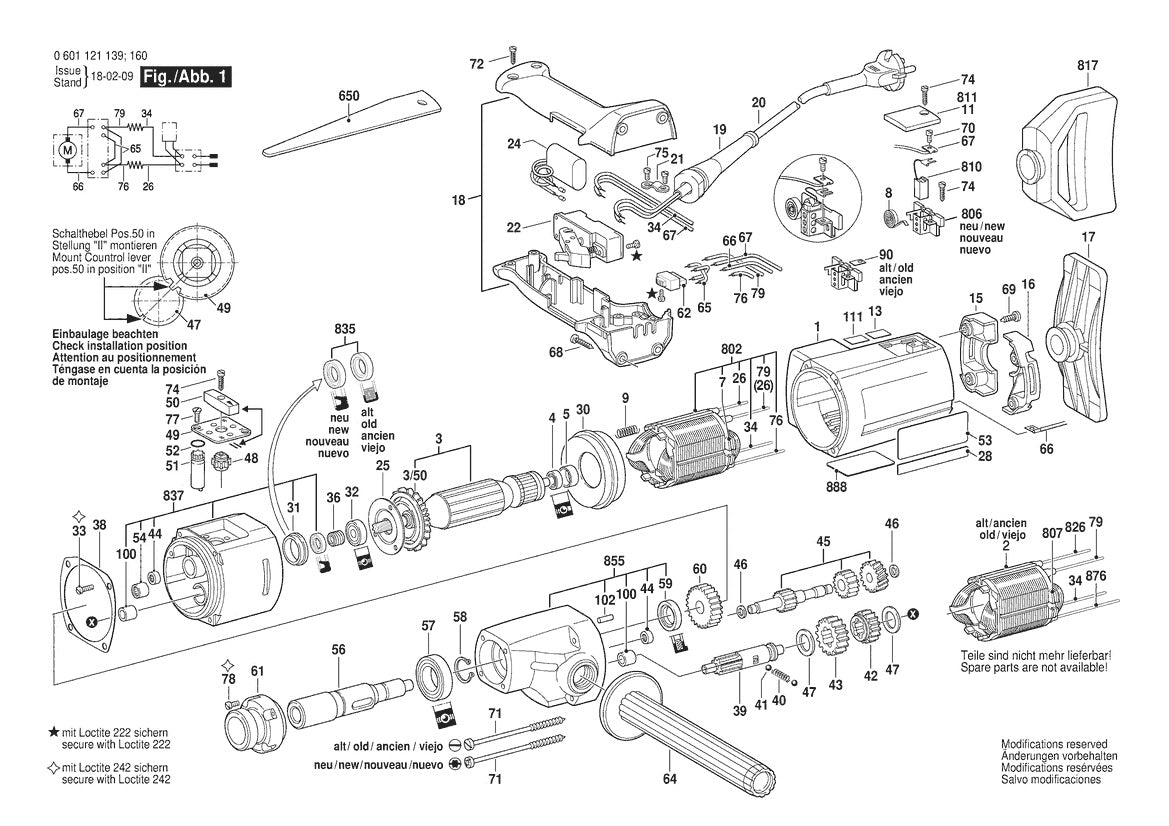

601121139 Bosch Electric Drill Parts Diagram

601121139 Bosch Electric Drill Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3605108091 Motor Housing by Bosch
$37.75
3
1606610122 Fan | Genuine OEM Bosch Part
$3.91
50
1606610122 Fan | Genuine OEM Bosch Part
$3.91
4
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
8
1604652006 Spiral Spring by Bosch
$3.91
9
1604613006 Compression Spring by Bosch
$3.91
11
3605500063 Locking Cover by Bosch
$4.89
13
1601110058 Reference Plate by Bosch
$3.91
16
3605500059 Cover | Genuine OEM Bosch Part
$17.61
19
3600703011 Cord Protector by Bosch
$4.89
20
1604460092 Power Cord | Genuine OEM Bosch Part
$17.80
21
1601302014 Fastening Clamp by Bosch
$3.91
30
1600502019 Air-deflector Ring by Bosch
$3.91
31
1600221003 Intermediate Ring by Bosch
$3.91
32
1619P00290 Deep-groove Ball Bearing by Bosch
$7.14
33
2910021118 Cheese Head Screw by Bosch
$4.89
34
1604438012 Cable 330mm | Genuine OEM Bosch Part
$5.28
35
1600290016 Radial-lip-type Oil Seal by Bosch
$3.91
36
1600300090 Intermediate Ring by Bosch
$3.91
38
1601015013 Plate | Genuine OEM Bosch Part
$3.91
41
1903230009 Ball | Genuine OEM Bosch Part
$3.91
44
1600910013 Needle Bearing by Bosch
$6.11
46
1600100631 Shim | Genuine OEM Bosch Part
$3.91
54
2600910001 Needle Bushing by Bosch
$3.91
58
2916650014 C-clip | Genuine OEM Bosch Part
$3.91
62
3607200025 Switch Rev. | Genuine OEM Bosch Part
$31.89
66
3604460011 Cable 330mm | Genuine OEM Bosch Part
$3.91
67
3604460012 Cable 75mm | Genuine OEM Bosch Part
$3.91
68
2912401037 Sheet Metal Screw by Bosch
$3.91
69
2910211236 Sheet Metal Screw by Bosch
$3.91
70
2610912760 Sheet Metal Screw by Bosch
$3.91
72
2910211019 Sheet Metal Screw by Bosch
$4.89
74
2910021154 Screw | Genuine OEM Bosch Part
$3.91
75
1607000189 Brush Holder by Bosch
$9.32
78
1601025001 Wire Guide | Genuine OEM Bosch Part
$3.91
806
3607014012 Brush Set | Genuine OEM Bosch Part
$27.97
807
3604460009 Cable 450mm | Genuine OEM Bosch Part
$3.91
810
1604438013 Cable 70mm | Genuine OEM Bosch Part
$8.10
826
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
