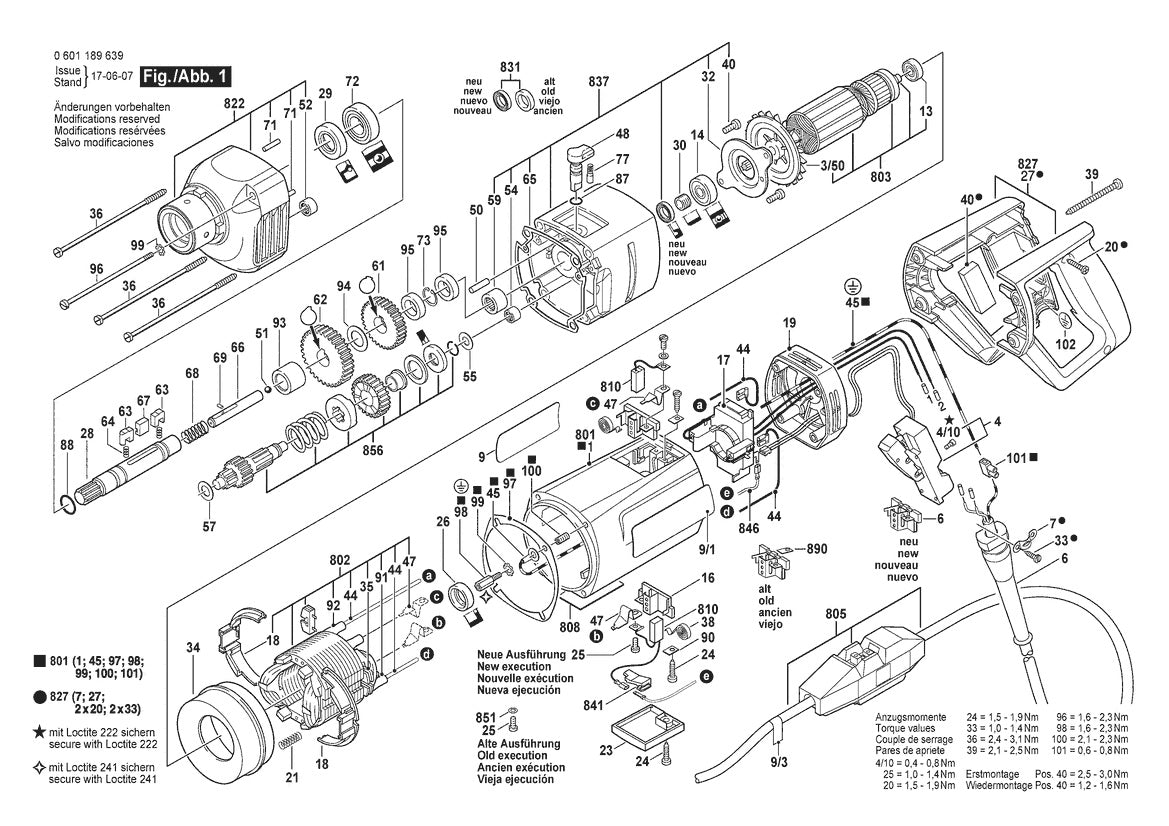

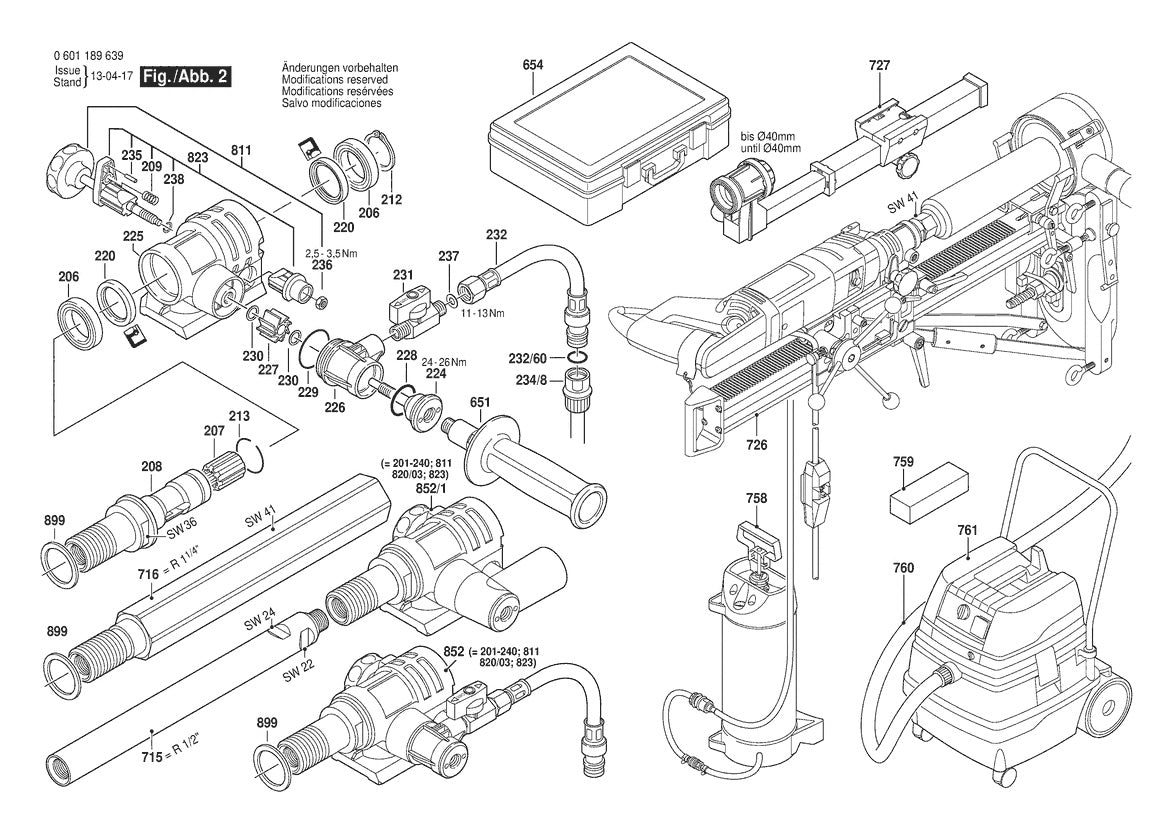

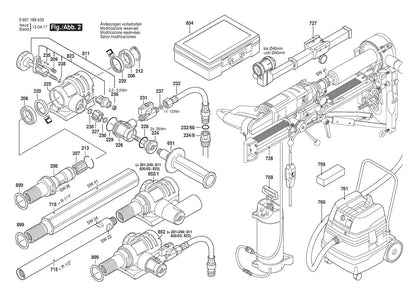

601189639 Bosch Electric Drill Parts Diagram

601189639 Bosch Electric Drill Parts Diagram

  • 601189639 Bosch Electric Drill Parts Diagram
  • 601189639 Bosch Electric Drill Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
2910011082 Cheese Head Screw by Bosch
$3.91
10
2910011082 Cheese Head Screw by Bosch
$3.91
6
3600703011 Cord Protector by Bosch
$4.89
7
1601302013 Fastening Clamp by Bosch
$3.91
13
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
14
3600905131 Ball Bearing by Bosch
$12.34
21
1604613006 Compression Spring by Bosch
$3.91
23
3605500063 Locking Cover by Bosch
$4.89
24
2910211019 Sheet Metal Screw by Bosch
$4.89
25
2910021118 Cheese Head Screw by Bosch
$4.89
30
1600300090 Intermediate Ring by Bosch
$3.91
38
3604652001 Brush Spring by Bosch
$3.91
47
1604477001 Blade Terminal by Bosch
$3.91
50
2917550099 Straight Pin by Bosch
$3.91
51
1903230013 Ball | Genuine OEM Bosch Part
$3.91
52
2600910001 Needle Bushing by Bosch
$3.91
54
1600910018 Needle Bushing by Bosch
$3.91
55
1600100617 Washer | Genuine OEM Bosch Part
$3.91
59
1610910088 Needle Bushing by Bosch
$6.11
73
2916650008 C-clip | Genuine OEM Bosch Part
$3.91
77
2600590006 Ratchet Cap | Genuine OEM Bosch Part
$4.89
212
2916650017 C-clip | Genuine OEM Bosch Part
$3.91
808
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
831
3600290070 Rotary Shaft Lip Seal by Bosch
$14.04
View full details
