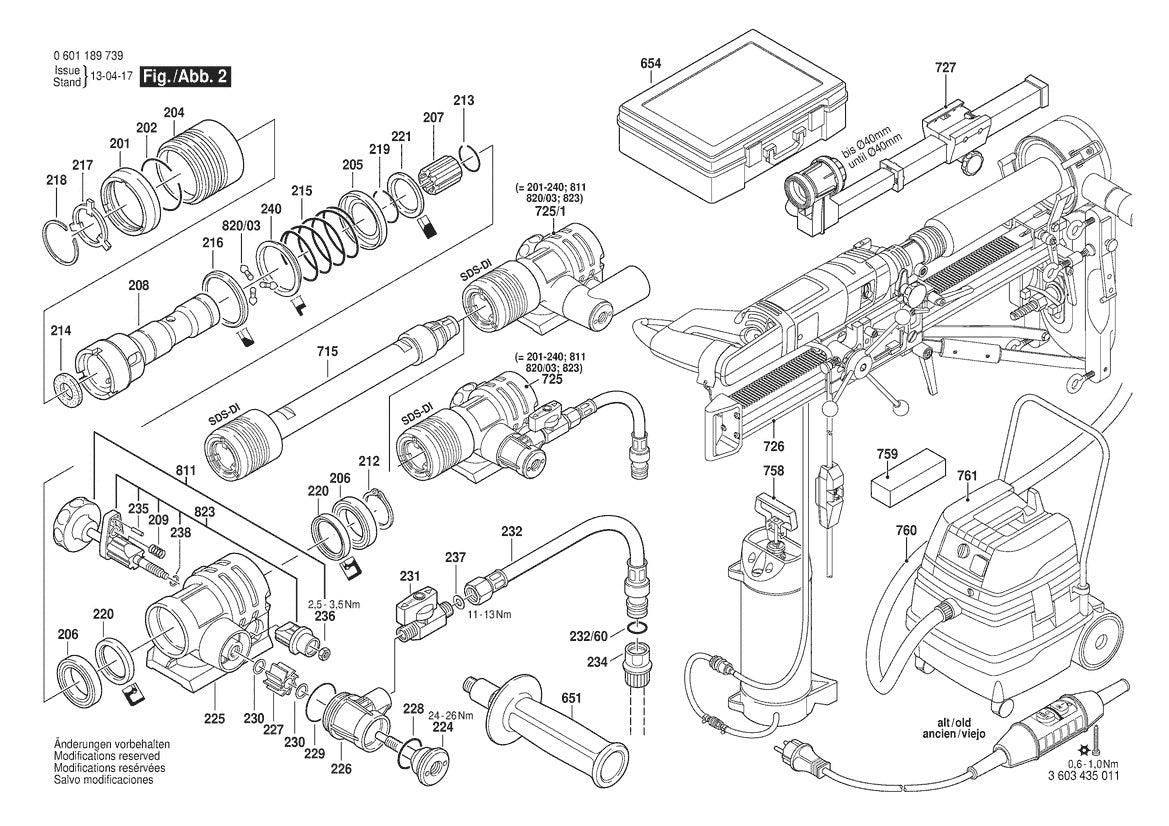

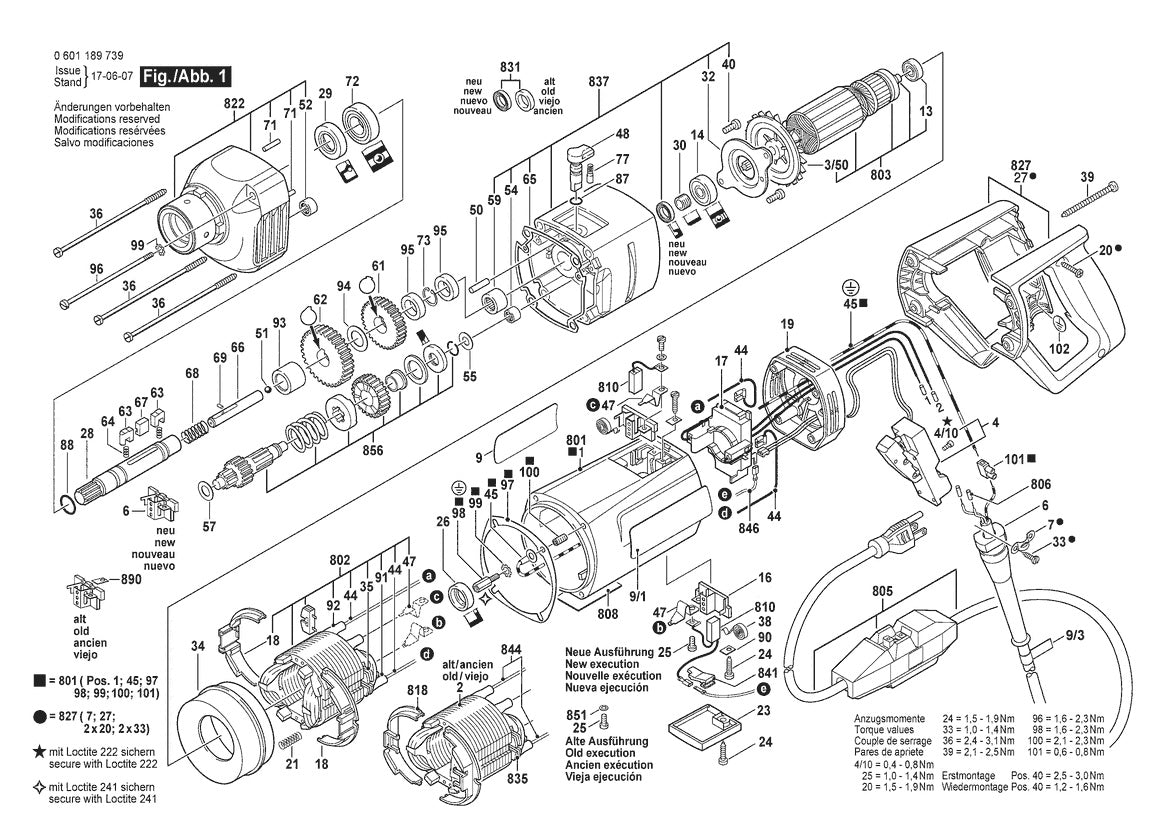

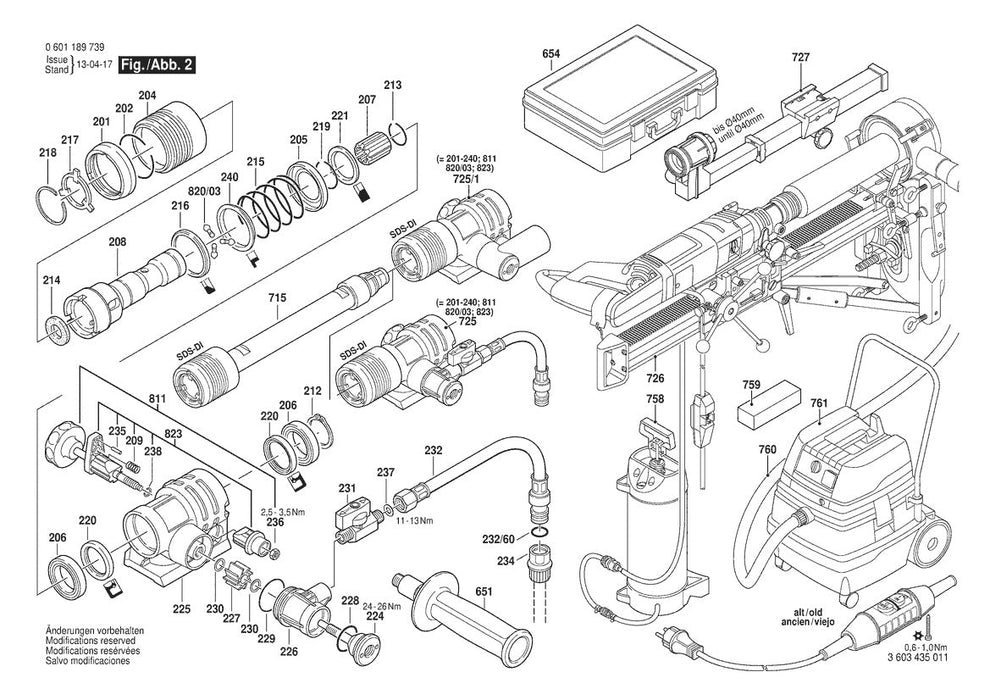

601189739 Bosch Electric Drill Parts Diagram

601189739 Bosch Electric Drill Parts Diagram

  • 601189739 Bosch Electric Drill Parts Diagram
  • 601189739 Bosch Electric Drill Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
13
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
54
1600910018 Needle Bushing by Bosch
$3.91
77
2600590006 Ratchet Cap | Genuine OEM Bosch Part
$4.89
73
2916650008 C-clip | Genuine OEM Bosch Part
$3.91
52
2600910001 Needle Bushing by Bosch
$3.91
6
3600703011 Cord Protector by Bosch
$4.89
7
1601302013 Fastening Clamp by Bosch
$3.91
25
2910021118 Cheese Head Screw by Bosch
$4.89
24
2910211019 Sheet Metal Screw by Bosch
$4.89
23
3605500063 Locking Cover by Bosch
$4.89
47
1604477001 Blade Terminal by Bosch
$3.91
835
1601025001 Wire Guide | Genuine OEM Bosch Part
$3.91
30
1600300090 Intermediate Ring by Bosch
$3.91
50
2917550099 Straight Pin by Bosch
$3.91
51
1903230013 Ball | Genuine OEM Bosch Part
$3.91
4
2910011082 Cheese Head Screw by Bosch
$3.91
10
2910011082 Cheese Head Screw by Bosch
$3.91
59
1610910088 Needle Bushing by Bosch
$6.11
21
1604613006 Compression Spring by Bosch
$3.91
14
3600905131 Ball Bearing by Bosch
$12.34
55
1600100617 Washer | Genuine OEM Bosch Part
$3.91
38
3604652001 Brush Spring by Bosch
$3.91
831
3600290070 Rotary Shaft Lip Seal by Bosch
$14.04
212
2916650017 C-clip | Genuine OEM Bosch Part
$3.91
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
