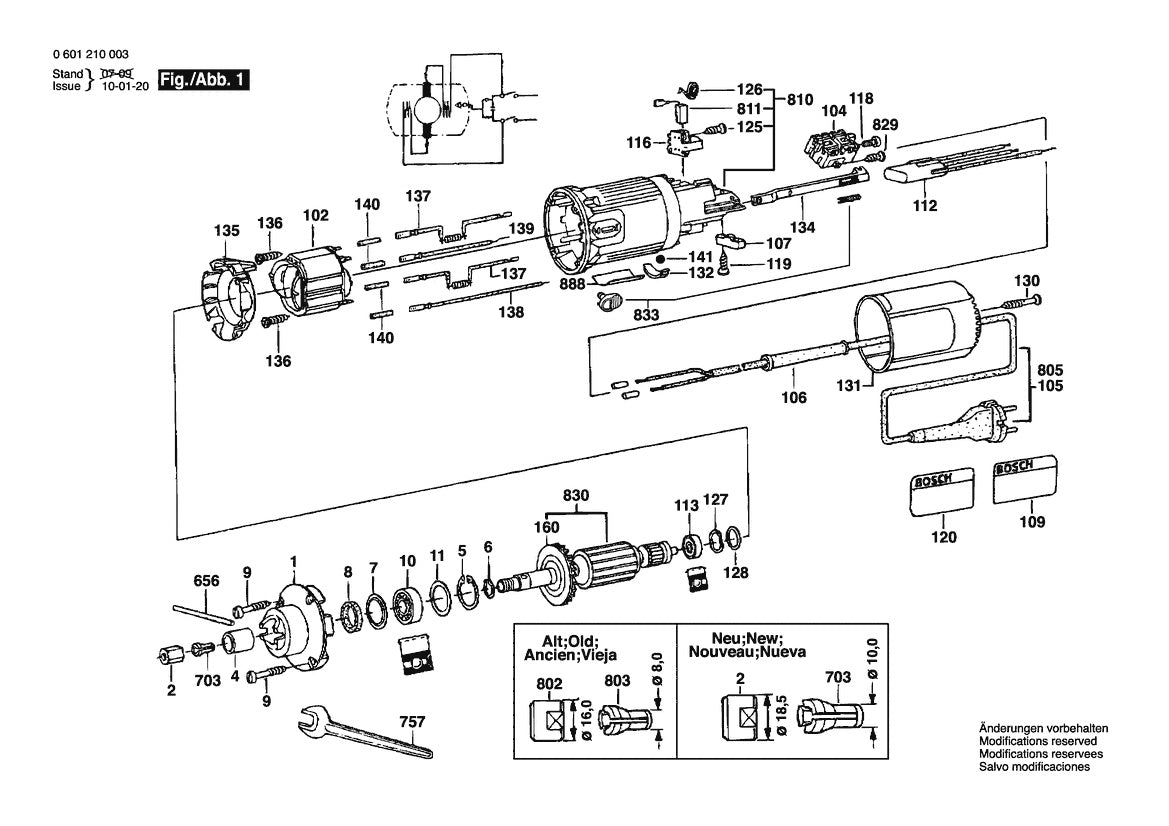

601210003 Bosch Grinder Parts Diagram

601210003 Bosch Grinder Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2605806375 Flange | Genuine OEM Bosch Part
$22.66
2
2603312006 Collet Nut 17mm (new) by Bosch
$7.14
4
2600300073 Bushing | Genuine OEM Bosch Part
$6.23
5
2916660013 C-clip | Genuine OEM Bosch Part
$3.91
6
2916650006 C-clip | Genuine OEM Bosch Part
$4.89
7
2600500033 Washer | Genuine OEM Bosch Part
$3.91
8
2600108033 Felt Seal | Genuine OEM Bosch Part
$3.91
9
2603490023 Torx Oval-head Screw by Bosch
$4.89
10
2600905017 Ball Bearing by Bosch
$10.95
11
1600102626 Shim 0.1mm | Genuine OEM Bosch Part
$3.91
102
2604220445 Field | Genuine OEM Bosch Part
$31.26
104
2607200674 On-off Switch by Bosch
$17.80
113
2600905088 Deep-groove Ball Bearing by Bosch
$12.57
116
2601323021 Brush Holder by Bosch
$3.91
118
2603410001 Cheese Head Screw by Bosch
$4.89
125
2603490017 Screw | Genuine OEM Bosch Part
$3.91
128
2600101023 Shim Ring | Genuine OEM Bosch Part
$3.91
128
2600101667 Shim Ring | Genuine OEM Bosch Part
$3.91
130
2910601321 Tap. Screw W.sunk Ct. Head by Bosch
$3.91
131
2600508036 Housing Cover by Bosch
$10.73
133
2602026015 Switch Handle by Bosch
$3.91
134
2602319005 Control Lever by Bosch
$3.91
135
2601328045 Cover Disc | Genuine OEM Bosch Part
$3.91
136
2603435086 Sheet Metal Screw by Bosch
$3.91
137
2604448034 Connecting Cable by Bosch
$3.91
139
2604448044 Connecting Cable by Bosch
$3.91
140
1610712034 Shrinkable Tube by Bosch
$3.91
141
2603230002 Ball | Genuine OEM Bosch Part
$3.91
656
2603101035 Locking Pin | Genuine OEM Bosch Part
$3.91
703
2608570048 Collet 1/4 Inch (new) by Bosch
$38.50
703
2608570049 Collet | Genuine OEM Bosch Part
$24.90
757
2607950511 Wrench | Genuine OEM Bosch Part
$4.89
803
2608570066 Collet Chuck by Bosch
$38.50
805
1607000385 Cord | Genuine OEM Bosch Part
$12.34
810
2605108904 Motor Housing by Bosch
$31.26
811
2604320910 Carbon Brush Set by Bosch
$9.41
829
2910611006 Sheet Metal Screw by Bosch
$3.91
830
2604010915 Armature | Genuine OEM Bosch Part
$143.24
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
