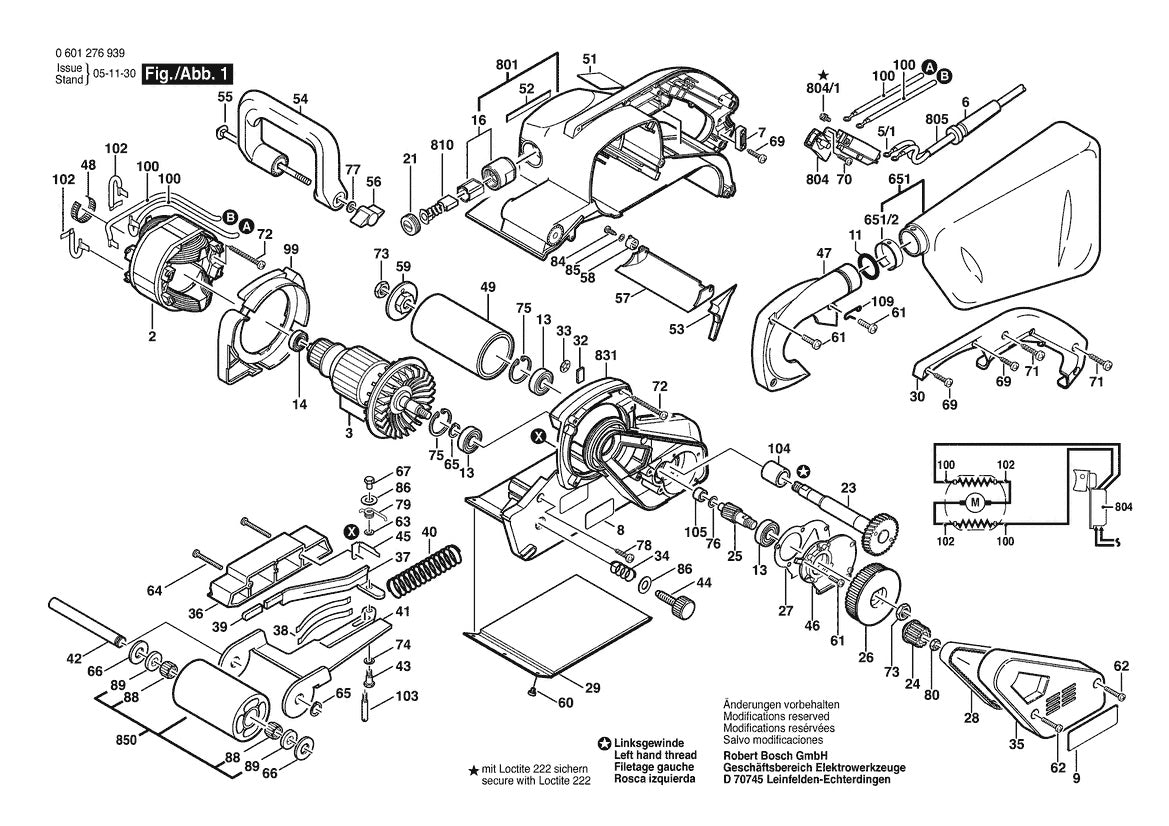

601276939 Bosch Sander Parts Diagram

601276939 Bosch Sander Parts Diagram

Skip to product information
1 of 1
Ref. Details
6
3600707503 Grommet | Genuine OEM Bosch Part
$4.89
9
2610911727 Manufacturers Nameplate by Bosch
$3.91
13
1900905161 Deep-groove Ball Bearing by Bosch
$5.33
14
1619P01511 Ball Bearing by Bosch
$4.89
23
2610908618 Spindle With Gear by Bosch
$34.38
24
2610993575 Toothed Belt Wheel by Bosch
$21.32
25
2610908621 Pinion | Genuine OEM Bosch Part
$25.15
26
2610994443 Gear | Genuine OEM Bosch Part
$37.75
29
2610908625 Sander Support Plate by Bosch
$27.97
31
2610907550 Housing | Genuine OEM Bosch Part
$112.83
32
2610908628 Ceramic Plate by Bosch
$3.91
34
2610990029 Compression Spring by Bosch
$3.91
35
2610990025 Gear Cover | Genuine OEM Bosch Part
$6.23
37
3601923502 Tensioning Lever by Bosch
$19.87
41
2610908632 Support Frame by Bosch
$14.33
43
3603453500 Guide Pin | Genuine OEM Bosch Part
$4.89
44
2610908637 Adjusting Screw by Bosch
$5.38
45
2610908638 Plate Strap | Genuine OEM Bosch Part
$3.91
47
3605500579 Fan Housing | Genuine OEM Bosch Part
$7.14
49
2610908642 Pulley | Genuine OEM Bosch Part
$38.50
53
2610908651 Dust Cap | Genuine OEM Bosch Part
$3.91
54
2610908652 Auxiliary Handle by Bosch
$16.08
55
2610908653 Round-head Bolt by Bosch
$4.89
60
2610911095 Cheese Head Screw by Bosch
$4.89
61
3603415540 Cheese Head Screw by Bosch
$3.91
62
3603429514 Cheese Head Screw by Bosch
$3.91
63
2916011010 Plain Washer by Bosch
$3.91
64
3603429513 Cheese Head Screw by Bosch
$3.91
65
2916650003 C-clip | Genuine OEM Bosch Part
$3.91
66
2610908658 Washer | Genuine OEM Bosch Part
$3.91
67
3603315500 Hexagon Screw by Bosch
$3.91
69
2610910566 Sheet Metal Screw by Bosch
$3.91
70
2910611424 Sheet Metal Screw by Bosch
$3.91
74
3600150505 Spring Washer by Bosch
$4.89
75
2610908661 Retaining Ring by Bosch
$3.91
77
2916011014 Plain Washer by Bosch
$3.91
79
2610990039 Retaining Ring by Bosch
$5.28
80
2610908663 Hexagon Nut | Genuine OEM Bosch Part
$3.91
86
2610992475 Shim | Genuine OEM Bosch Part
$3.91
89
1600290016 Radial-lip-type Oil Seal by Bosch
$3.91
99
2610908665 Baffle | Genuine OEM Bosch Part
$7.01
103
3603405509 Stud | Genuine OEM Bosch Part
$3.91
104
3600301501 Bushing | Genuine OEM Bosch Part
$3.91
105
3600301502 Bushing | Genuine OEM Bosch Part
$3.91
109
3604680500 Coiled Spring by Bosch
$3.91
804
3603433506 Cheese Head Screw by Bosch
$3.91
1
3603433506 Cheese Head Screw by Bosch
$3.91
805
3604460514 Power Cord | Genuine OEM Bosch Part
$14.18
810
2610908677 Carbon-brush Set by Bosch
$31.58
850
2610908644 Tensioning Roller by Bosch
$48.23
View full details
