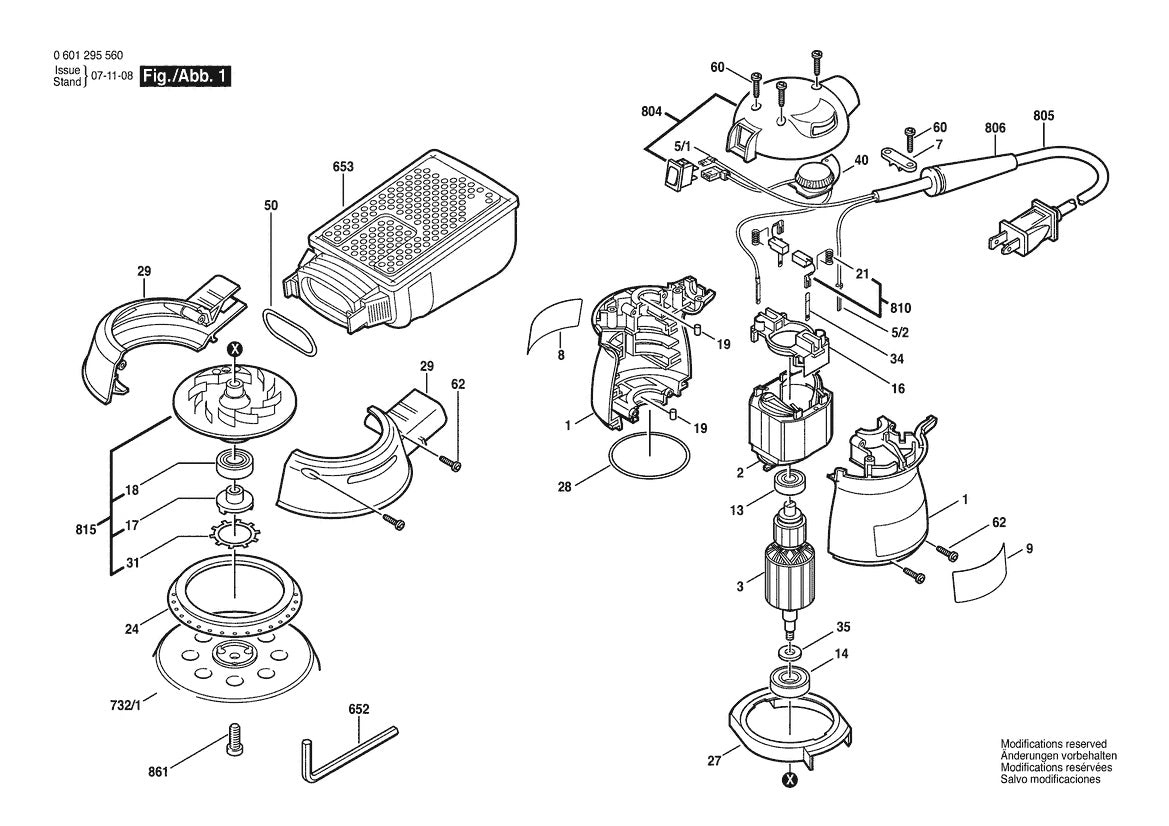

601295560 Bosch Sander Parts Diagram

601295560 Bosch Sander Parts Diagram

  • 601295560 Bosch Sander Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
2610911955 Pole Shoe | Genuine OEM Bosch Part
$27.69
5
2610932258 Terminal | Genuine OEM Bosch Part
$3.91
1
2610932258 Terminal | Genuine OEM Bosch Part
$3.91
5
2601355008 Blade Terminal by Bosch
$3.91
2
2601355008 Blade Terminal by Bosch
$3.91
13
1619P01511 Ball Bearing by Bosch
$4.89
14
2610911985 Deep-groove Ball Bearing by Bosch
$3.91
16
2610911975 Brush Holder by Bosch
$4.89
24
2610911970 Friction Ring by Bosch
$5.33
29
2610911962 Suction Hood by Bosch
$7.01
34
2610911982 Terminal | Genuine OEM Bosch Part
$3.91
60
2610323769 Screw | Genuine OEM Bosch Part
$3.91
61
2603414062 Hex Socket Head Cap Screw by Bosch
$4.89
652
2610364015 Allen Wrench by Bosch
$4.89
732
2610917408 Hook And Loop Sander Pad by Bosch
$25.15
804
2610917105 On-off Switch by Bosch
$12.57
805
3604460555 Cord | Genuine OEM Bosch Part
$10.84
806
2600703018 Grommet | Genuine OEM Bosch Part
$4.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
