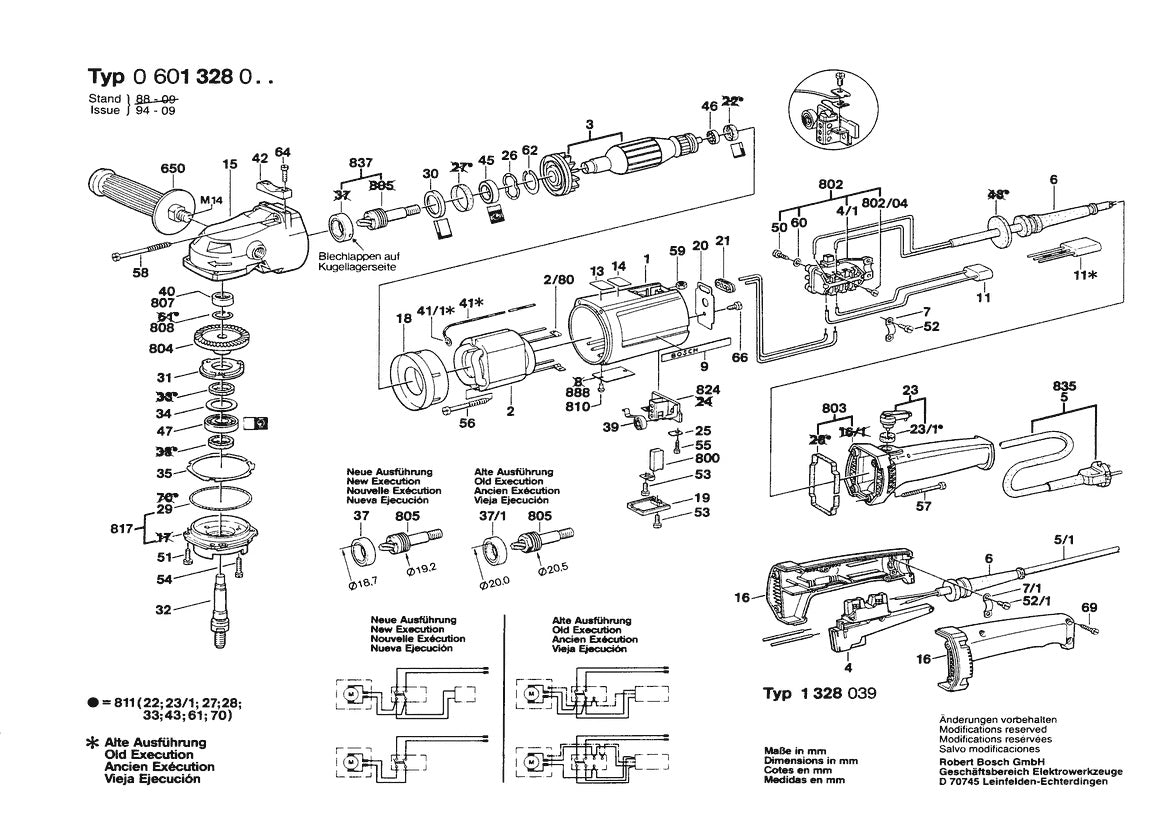

601328039 Bosch Grinder Parts Diagram

601328039 Bosch Grinder Parts Diagram

  • 601328039 Bosch Grinder Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
1607200064 On-off Switch by Bosch
$60.81
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
3600703011 Cord Protector by Bosch
$4.89
7
1601302014 Fastening Clamp by Bosch
$3.91
14
1601110058 Reference Plate by Bosch
$3.91
16
3605132054 Handle | Genuine OEM Bosch Part
$24.90
19
3605500063 Locking Cover by Bosch
$4.89
29
1600210033 O-ring | Genuine OEM Bosch Part
$3.91
39
1604652006 Spiral Spring by Bosch
$3.91
40
2600910001 Needle Bushing by Bosch
$3.91
46
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
46
3600905134 Deep-groove Ball Bearing by Bosch
$12.57
47
2910211006 Screw | Genuine OEM Bosch Part
$3.91
50
2610912760 Sheet Metal Screw by Bosch
$3.91
50
2910021157 Cheese Head Screw by Bosch
$3.91
51
2910011120 Screw | Genuine OEM Bosch Part
$3.91
52
2910021118 Cheese Head Screw by Bosch
$4.89
53
2910211011 Sheet Metal Screw by Bosch
$4.89
55
2910211038 Sheet Metal Screw by Bosch
$3.91
57
2916660014 C-clip | Genuine OEM Bosch Part
$3.91
62
1602025030 Auxiliary Handle by Bosch
$19.68
69
1607014126 Carbon-brush Set by Bosch
$19.87
650
2910091118 Slotted Pan-head Screw by Bosch
$3.91
800
1600910010 Needle Bearing by Bosch
$31.26
802
1604336017 Brush Holder by Bosch
$7.01
04
1604336017 Brush Holder by Bosch
$7.01
807
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
View full details
