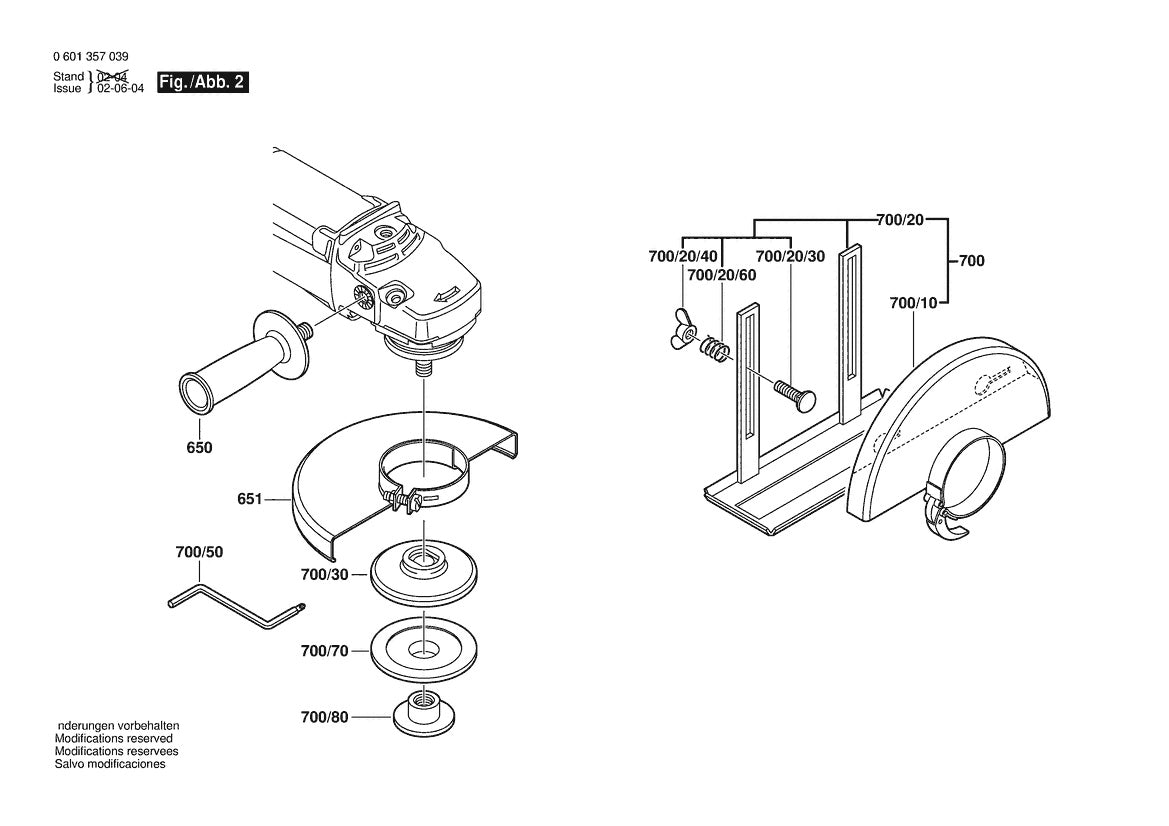

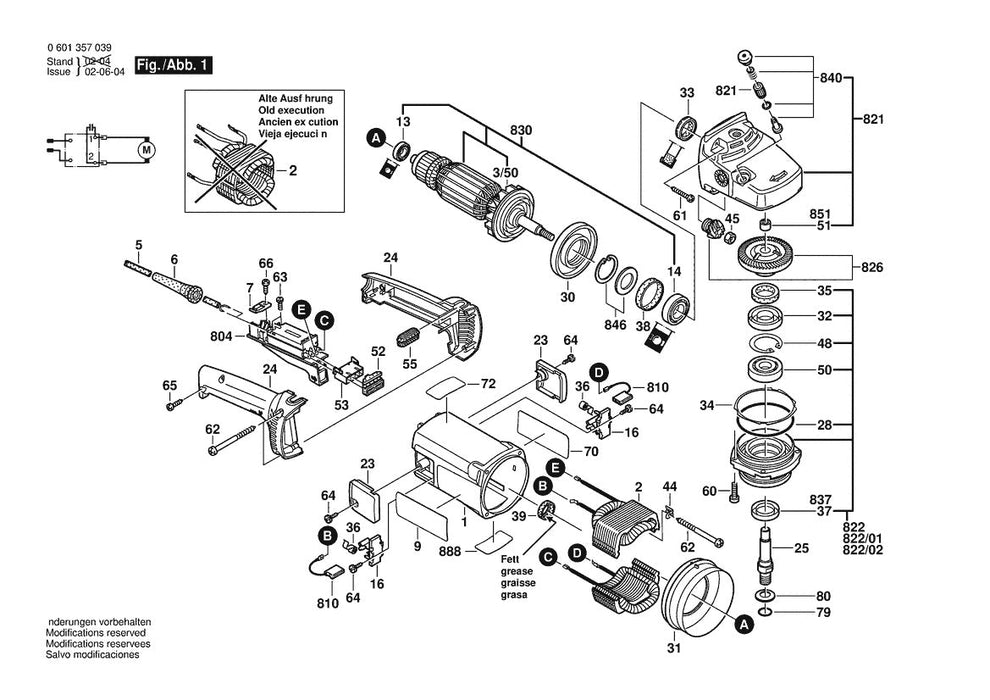

601357039 Bosch Grinder Parts Diagram

601357039 Bosch Grinder Parts Diagram

Skip to product information
1 of 2
Ref. Details
2
160422057P Field | Genuine OEM Bosch Part
$49.20
3
1606610127 Fan | Genuine OEM Bosch Part
$3.91
50
1606610127 Fan | Genuine OEM Bosch Part
$3.91
4
1607200103 On-off Switch by Bosch
$27.97
5
1604460092 Power Cord | Genuine OEM Bosch Part
$17.80
6
1600703023 Grommet | Genuine OEM Bosch Part
$4.89
7
1601302018 Fastening Clamp by Bosch
$4.89
13
1619P01511 Ball Bearing by Bosch
$4.89
14
1600905023 Deep-groove Ball Bearing by Bosch
$12.57
16
1604336021 Brush Holder by Bosch
$3.91
23
1605500165 Locking Cover by Bosch
$4.89
24
1605132117 Handle | Genuine OEM Bosch Part
$12.34
25
1603523109 Grinding Spindle by Bosch
$37.75
28
1600210033 O-ring | Genuine OEM Bosch Part
$3.91
30
1600591010 Air-deflector Ring by Bosch
$3.91
31
1600591011 Air-deflector Ring by Bosch
$3.91
32
1600290019 Retaining Ring by Bosch
$3.91
33
1600290013 Radial-lip-type Oil Seal by Bosch
$3.91
34
1600190020 Shim | Genuine OEM Bosch Part
$3.91
34
1600190021 Shim | Genuine OEM Bosch Part
$3.91
34
1600190022 Shim | Genuine OEM Bosch Part
$3.91
35
1600205034 Felt Washer | Genuine OEM Bosch Part
$3.91
36
1604652015 Spiral Spring by Bosch
$4.89
37
1600290036 Seal Ring | Genuine OEM Bosch Part
$3.91
38
1600206020 Rubber Ring | Genuine OEM Bosch Part
$4.89
39
1600206030 Rubber Ring | Genuine OEM Bosch Part
$3.91
44
1601334008 Holding Bracket by Bosch
$3.91
45
1603300019 Hexagon Nut | Genuine OEM Bosch Part
$3.91
48
1600119010 C-clip | Genuine OEM Bosch Part
$3.91
50
3600905134 Deep-groove Ball Bearing by Bosch
$12.57
51
1600200031 Friction Bearing by Bosch
$4.89
52
1602388027 Cable Run | Genuine OEM Bosch Part
$3.91
53
1605190038 Socket Housing by Bosch
$3.91
55
1602388029 Storage Ledge by Bosch
$3.91
60
1603435023 Threaded-furrow Screw by Bosch
$3.91
61
2912401038 Sheet Metal Screw by Bosch
$3.91
62
1603435024 Sheet Metal Screw by Bosch
$3.91
63
1603410014 Slotted Pan-head Screw by Bosch
$3.91
64
1603435042 Self-cutting Screw by Bosch
$3.91
65
2910611020 Sheet Metal Screw by Bosch
$4.89
66
2910211019 Sheet Metal Screw by Bosch
$4.89
79
1900210111 O-ring | Genuine OEM Bosch Part
$3.91
80
1600171001 Locking Washer by Bosch
$3.91
700
1603340001 Round Nut | Genuine OEM Bosch Part
$25.39
80
1603340001 Round Nut | Genuine OEM Bosch Part
$25.39
700
1604643003 Compression Spring by Bosch
$7.01
20
1604643003 Compression Spring by Bosch
$7.01
60
1604643003 Compression Spring by Bosch
$7.01
700
2915191007 Wing Nut | Genuine OEM Bosch Part
$3.91
20
2915191007 Wing Nut | Genuine OEM Bosch Part
$3.91
40
2915191007 Wing Nut | Genuine OEM Bosch Part
$3.91
751
1605510343 Protective Cover 9 by Bosch
$38.13
803
1604011147 Armature | Genuine OEM Bosch Part
$209.32
804
1607014171 Carbon Brush Set by Bosch
$14.18
810
1605805592 Gear Housing by Bosch
$74.45
821
1607000922 Bearing Flange by Bosch
$43.33
822
1607000985 Bearing Flange by Bosch
$31.26
02
1607000985 Bearing Flange by Bosch
$31.26
822
1607000384 Bevel Gear Set by Bosch
$60.81
826
1600290020 Seal Ring | Genuine OEM Bosch Part
$3.91
837
1607000206 Push-button | Genuine OEM Bosch Part
$6.16
840
1607000342 Retaining Washer by Bosch
$3.91
846
2600910001 Needle Bushing by Bosch
$3.91
851
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
