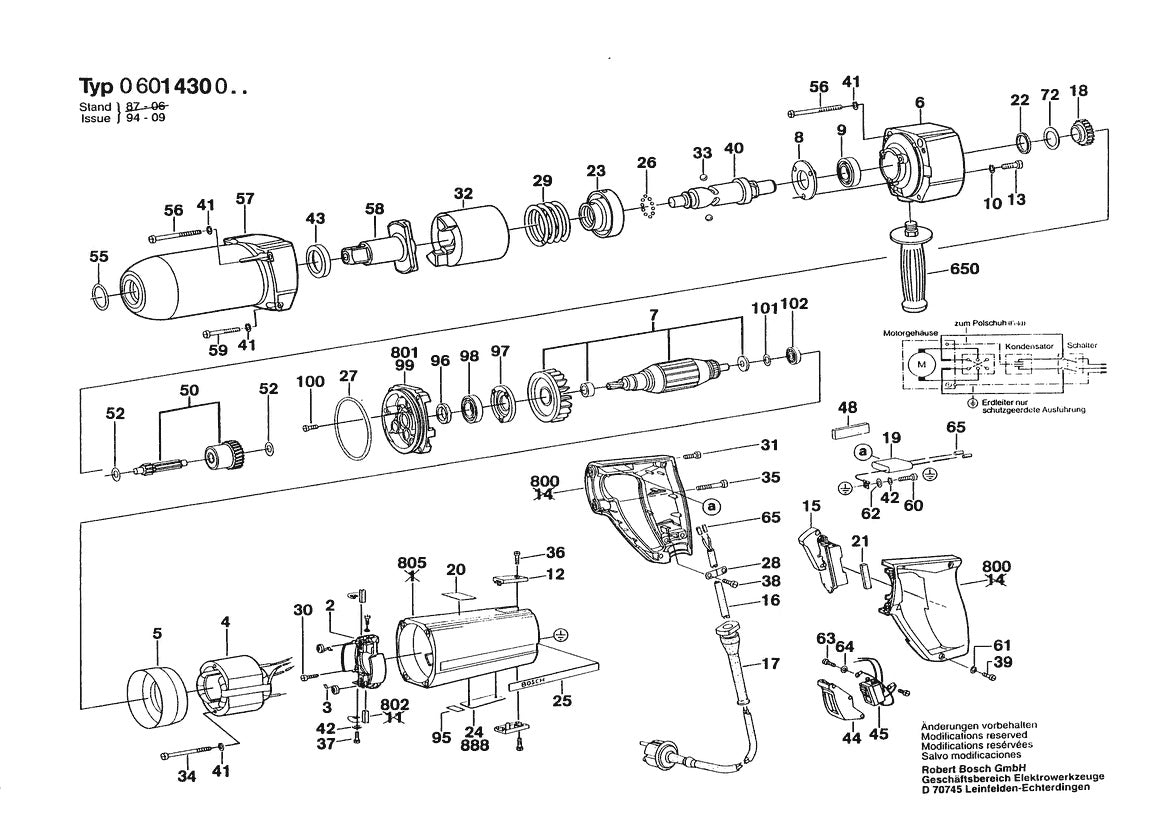

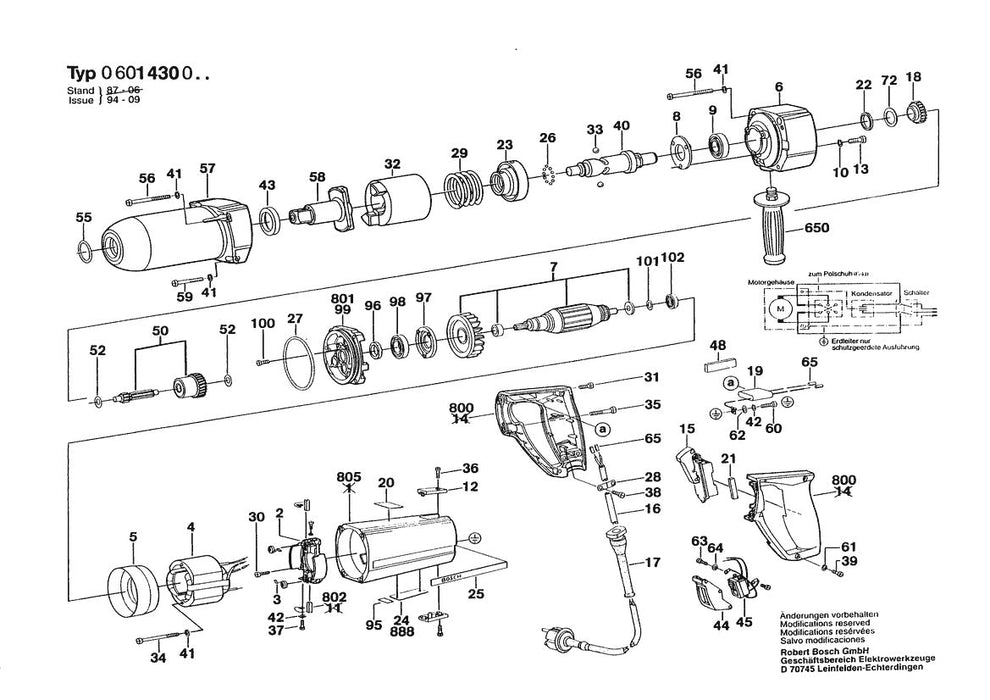

601430006 Bosch Impact Wrench Parts Diagram

601430006 Bosch Impact Wrench Parts Diagram

  • 601430006 Bosch Impact Wrench Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
10
2916681005 Spring Lock Washer by Bosch
$4.89
13
2910021126 Cheese Head Screw by Bosch
$3.91
17
3600703011 Cord Protector by Bosch
$4.89
20
1601110058 Reference Plate by Bosch
$3.91
26
1903230007 Ball | Genuine OEM Bosch Part
$4.89
27
1600210006 O-ring | Genuine OEM Bosch Part
$3.91
28
1601302014 Fastening Clamp by Bosch
$3.91
30
2910211019 Sheet Metal Screw by Bosch
$4.89
31
2910021154 Screw | Genuine OEM Bosch Part
$3.91
32
1608710018 Striker | Genuine OEM Bosch Part
$325.40
33
1903230014 Ball | Genuine OEM Bosch Part
$3.91
34
2910021174 Screw | Genuine OEM Bosch Part
$3.91
35
3603414028 Hex-socket-head Cap Screw by Bosch
$3.91
36
2910021118 Cheese Head Screw by Bosch
$4.89
37
2910001116 Cheese Head Screw by Bosch
$4.89
38
2610912760 Sheet Metal Screw by Bosch
$3.91
39
2910011128 Cheese Head Screw by Bosch
$3.91
39
1603124077 Drive Shaft | Genuine OEM Bosch Part
$209.32
40
1900210129 O-ring | Genuine OEM Bosch Part
$3.91
55
2910011170 Cheese Head Screw by Bosch
$3.91
56
1606455031 Drive Coupling by Bosch
$209.32
58
2910110116 Slotted Pan-head Screw by Bosch
$3.91
60
1900452002 End Splice | Genuine OEM Bosch Part
$3.91
61
1600100631 Shim | Genuine OEM Bosch Part
$3.91
65
1600100632 Shim | Genuine OEM Bosch Part
$3.91
72
1602025030 Auxiliary Handle by Bosch
$19.68
100
3605133009 Handle | Genuine OEM Bosch Part
$37.75
101
1607014101 Brush Set | Genuine OEM Bosch Part
$10.73
650
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

View the Bosch 601430006 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
