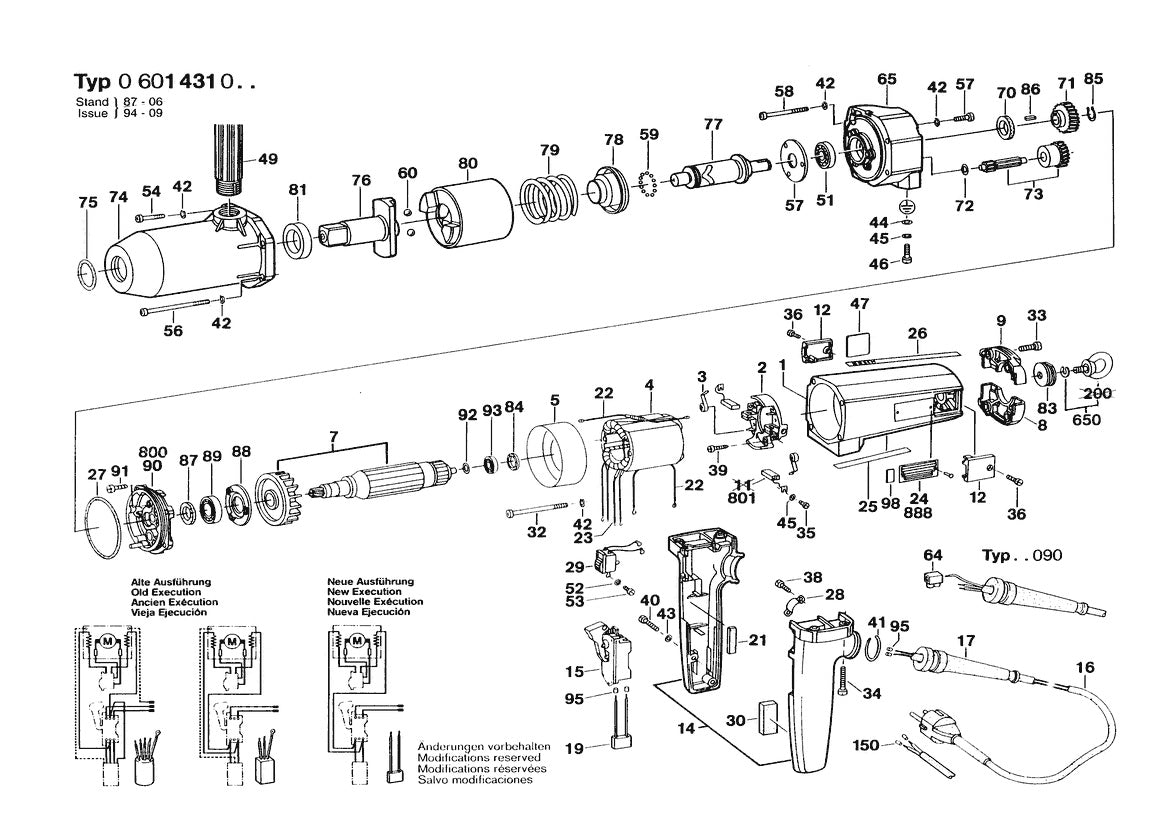

601431034 Bosch Impact Wrench Parts Diagram

601431034 Bosch Impact Wrench Parts Diagram

  • 601431034 Bosch Impact Wrench Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
1604652015 Spiral Spring by Bosch
$4.89
9
3605500059 Cover | Genuine OEM Bosch Part
$17.61
16
3604460555 Cord | Genuine OEM Bosch Part
$10.84
17
3600703011 Cord Protector by Bosch
$4.89
27
1600210006 O-ring | Genuine OEM Bosch Part
$3.91
28
1601302014 Fastening Clamp by Bosch
$3.91
29
1607200046 Switch | Genuine OEM Bosch Part
$43.33
34
3603414028 Hex-socket-head Cap Screw by Bosch
$3.91
35
2910021118 Cheese Head Screw by Bosch
$4.89
36
2910021126 Cheese Head Screw by Bosch
$3.91
38
2910001116 Cheese Head Screw by Bosch
$4.89
39
2910211019 Sheet Metal Screw by Bosch
$4.89
40
2910021122 Cheese Head Screw by Bosch
$3.91
43
2916681005 Spring Lock Washer by Bosch
$4.89
46
2910110116 Slotted Pan-head Screw by Bosch
$3.91
47
1601110058 Reference Plate by Bosch
$3.91
54
2910151164 Screw | Genuine OEM Bosch Part
$3.91
57
2910021157 Cheese Head Screw by Bosch
$3.91
59
1903230009 Ball | Genuine OEM Bosch Part
$3.91
60
1903230015 Ball 9mm | Genuine OEM Bosch Part
$3.91
72
1600100631 Shim | Genuine OEM Bosch Part
$3.91
75
3600210131 O-ring | Genuine OEM Bosch Part
$3.91
76
1606455054 Drive Coupling by Bosch
$266.24
85
2916650006 C-clip | Genuine OEM Bosch Part
$4.89
91
1600100632 Shim | Genuine OEM Bosch Part
$3.91
92
1900452002 End Splice | Genuine OEM Bosch Part
$3.91
95
2916690007 Lock Washer | Genuine OEM Bosch Part
$3.91
651
1607014102 Brush Set | Genuine OEM Bosch Part
$12.34
801
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
View full details
