601534139 Bosch Nibbler Parts Diagram

601534139 Bosch Nibbler Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2916640006 C-clip | Genuine OEM Bosch Part
$3.91
8
3601015020 Seal | Genuine OEM Bosch Part
$3.91
9
2600400008 Sleeve-type Terminal by Bosch
$3.91
10
2600500002 Plate Washer by Bosch
$3.91
11
2600905021 Deep-groove Ball Bearing by Bosch
$10.84
12
2916660008 C-clip | Genuine OEM Bosch Part
$3.91
13
2600108077 Felt Washer | Genuine OEM Bosch Part
$3.91
14
2910211022 Sheet Metal Screw by Bosch
$3.91
17
2917510094 Straight Pin by Bosch
$3.91
101
1605108151 Motor Housing by Bosch
$19.48
102
2604220428 Field | Genuine OEM Bosch Part
$31.26
103
2606610049 Fan | Genuine OEM Bosch Part
$3.91
60
2606610049 Fan | Genuine OEM Bosch Part
$3.91
104
1607200086 On/off Switch by Bosch
$15.93
105
3604460555 Cord | Genuine OEM Bosch Part
$10.84
106
2600703013 Grommet | Genuine OEM Bosch Part
$4.89
107
1601302017 Fastening Clamp by Bosch
$3.91
113
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
117
2610906874 Reference Plate by Bosch
$5.28
122
1602319002 Adjusting Slide by Bosch
$3.91
123
1602026057 Switch Handle by Bosch
$4.89
125
3600508025 Housing Cover by Bosch
$15.77
129
1601328005 Air-deflector Ring by Bosch
$3.91
148
2610914920 Sheet Metal Screw by Bosch
$3.91
149
2610912760 Sheet Metal Screw by Bosch
$3.91
151
1604477011 Blade Terminal by Bosch
$3.91
152
1601008003 Insulating Plate by Bosch
$3.91
153
1604448005 Connecting Cable by Bosch
$3.91
154
1604448006 Connecting Cable by Bosch
$3.91
208
3609201330 Deep-groove Ball Bearing by Bosch
$17.61
217
3609201338 Plunger Guide by Bosch
$182.82
220
3609201341 Guide Plate | Genuine OEM Bosch Part
$24.90
222
3609201343 Adjusting Screw by Bosch
$14.04
226
3600210099 O-ring | Genuine OEM Bosch Part
$5.28
721
2608639023 Lower Die | Genuine OEM Bosch Part
$122.05
816
2601323021 Brush Holder by Bosch
$3.91
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
View full details

Frequently asked questions

How do I use this diagram?

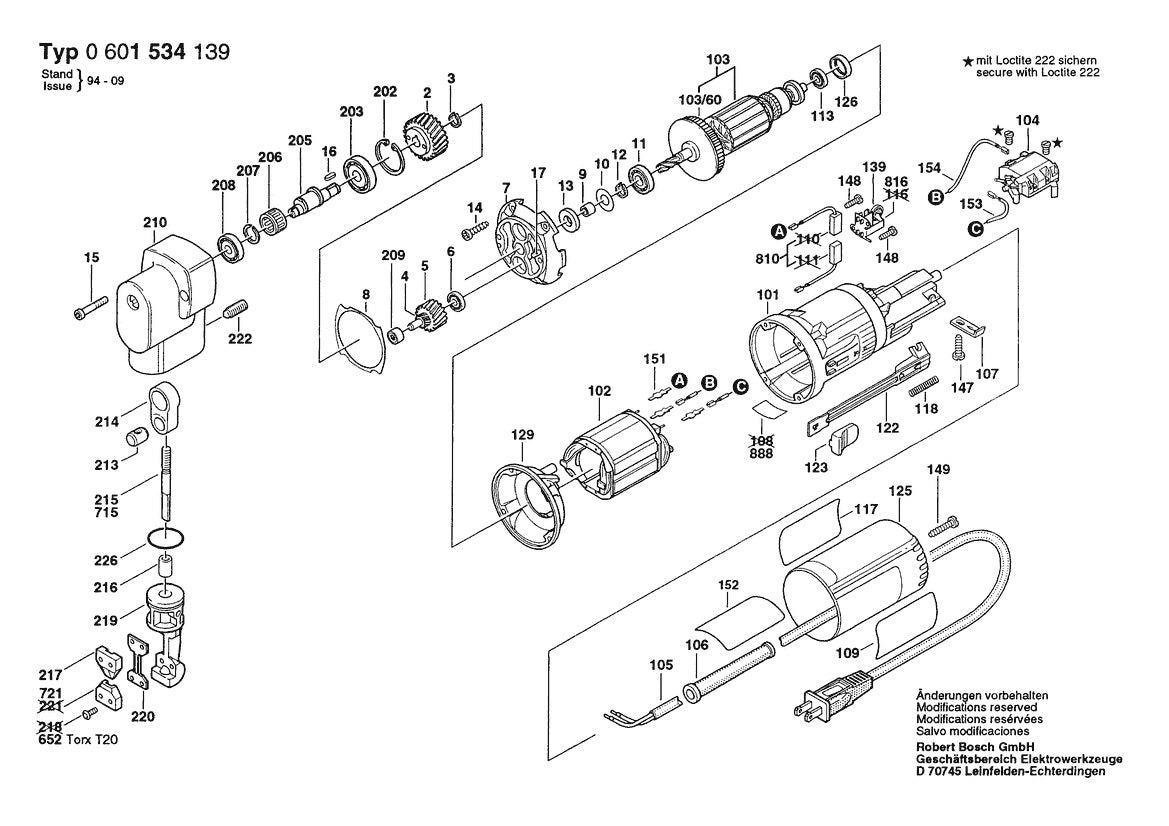

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
