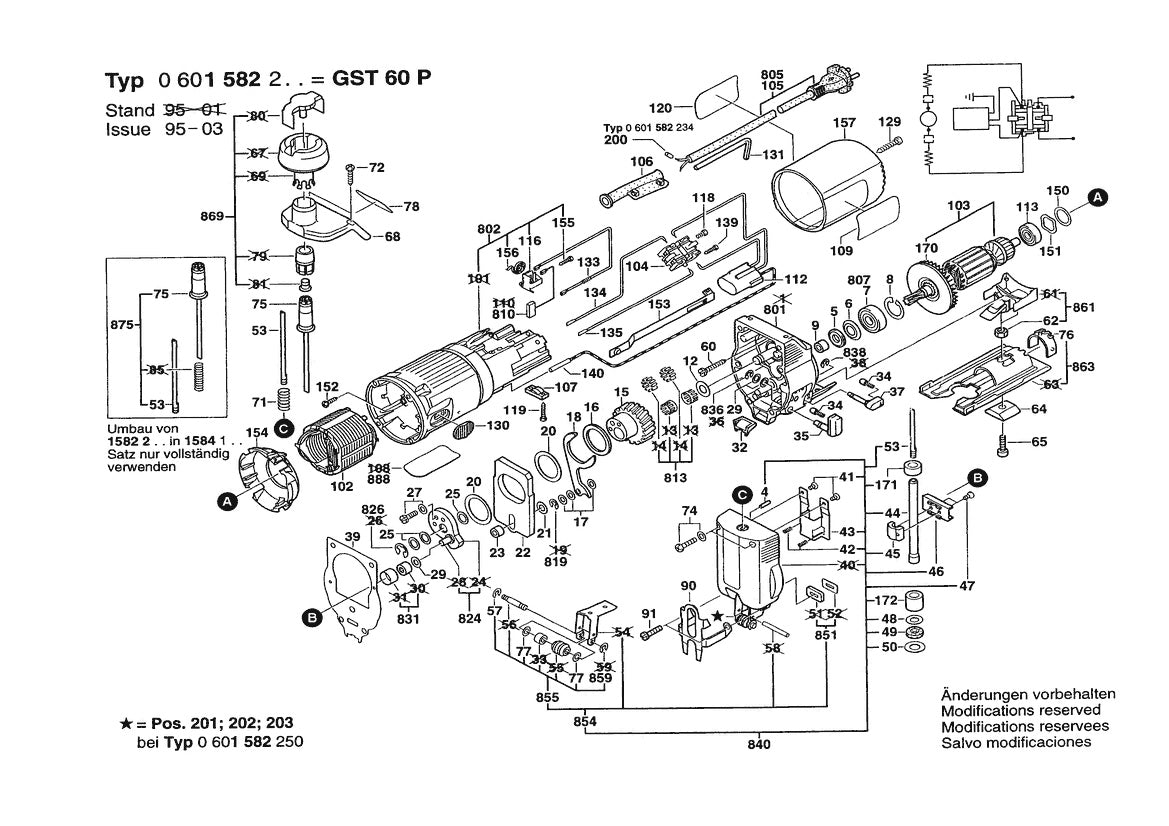

601582234 Bosch Jig Saw Parts Diagram

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.
