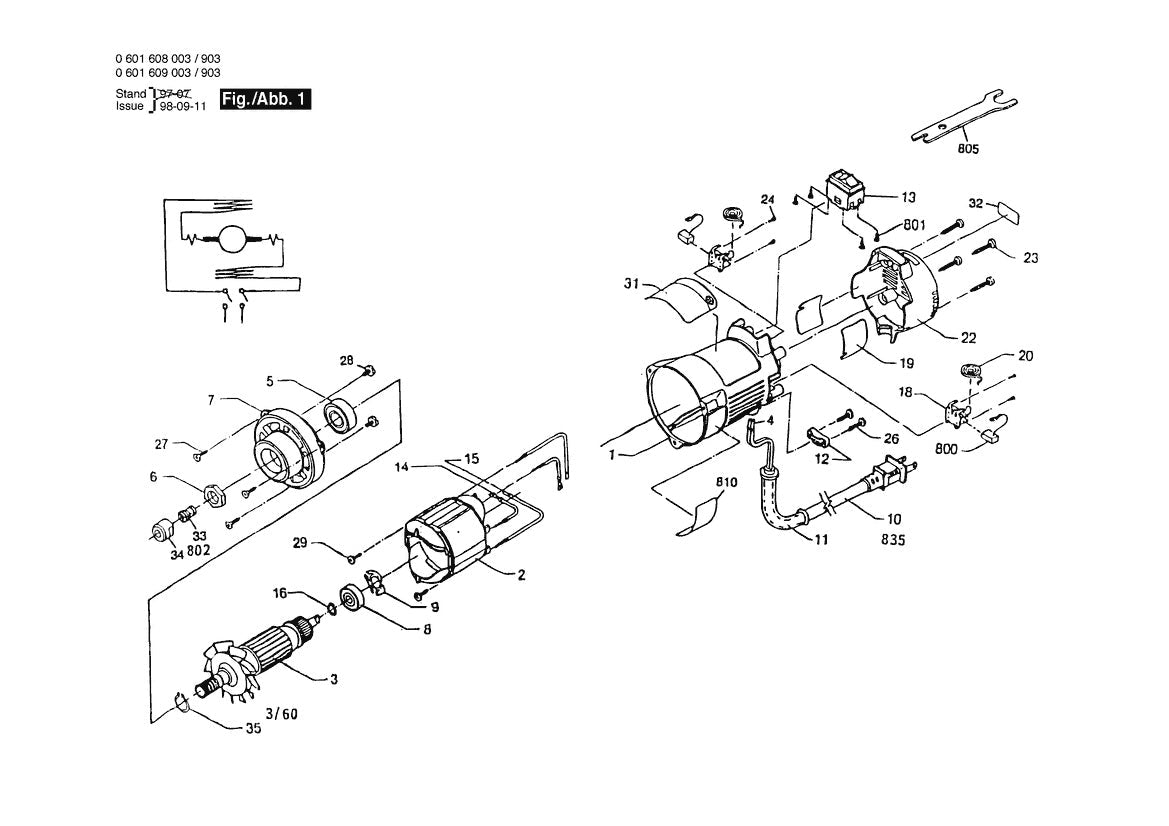

601608434 Bosch Laminate Trimmer Parts Diagram

601608434 Bosch Laminate Trimmer Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
3605108573 Motor Housing by Bosch
$21.32
6
3603311521 Hexagon Nut | Genuine OEM Bosch Part
$3.91
8
1900905018 Deep Groove Ball Bearing by Bosch
$21.54
9
3600150501 Spring Lock Washer by Bosch
$4.89
10
3604460555 Cord | Genuine OEM Bosch Part
$10.84
11
2600703013 Grommet | Genuine OEM Bosch Part
$4.89
16
2916640004 C-clip | Genuine OEM Bosch Part
$3.91
18
2601323021 Brush Holder by Bosch
$3.91
22
3605500580 Housing Cover by Bosch
$10.73
26
2910211019 Sheet Metal Screw by Bosch
$4.89
35
2916650003 C-clip | Genuine OEM Bosch Part
$3.91
703
3601039503 Cover Plate | Genuine OEM Bosch Part
$10.84
704
3603481516 Screw | Genuine OEM Bosch Part
$4.89
705
2911001166 Hexagon Screw by Bosch
$3.91
707
3603345508 Knurled Button by Bosch
$4.89
708
2910021122 Cheese Head Screw by Bosch
$3.91
709
3603415562 Screw | Genuine OEM Bosch Part
$3.91
711
3601032522 Plate | Genuine OEM Bosch Part
$9.32
712
3600132505 Screw | Genuine OEM Bosch Part
$9.32
714
3603415565 Screw | Genuine OEM Bosch Part
$3.91
717
2610921483 Wrench | Genuine OEM Bosch Part
$4.89
723
3603481512 Knurled Button by Bosch
$4.89
726
2910001126 Cheese Head Screw by Bosch
$3.91
732
3602386504 Guide Piece | Genuine OEM Bosch Part
$6.23
734
2915011006 Hexagon Nut | Genuine OEM Bosch Part
$3.91
745
2910091152 Slotted Pan-head Screw by Bosch
$3.91
749
3606100504 Screw | Genuine OEM Bosch Part
$12.34
751
3600119508 Retaining Ring by Bosch
$3.91
752
3605510542 Dust-protection Cover by Bosch
$3.91
766
3601071500 Base Plate | Genuine OEM Bosch Part
$8.27
768
1907950002 Offset Screwdriver by Bosch
$5.28
770
2608570066 Collet Chuck by Bosch
$38.50
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
