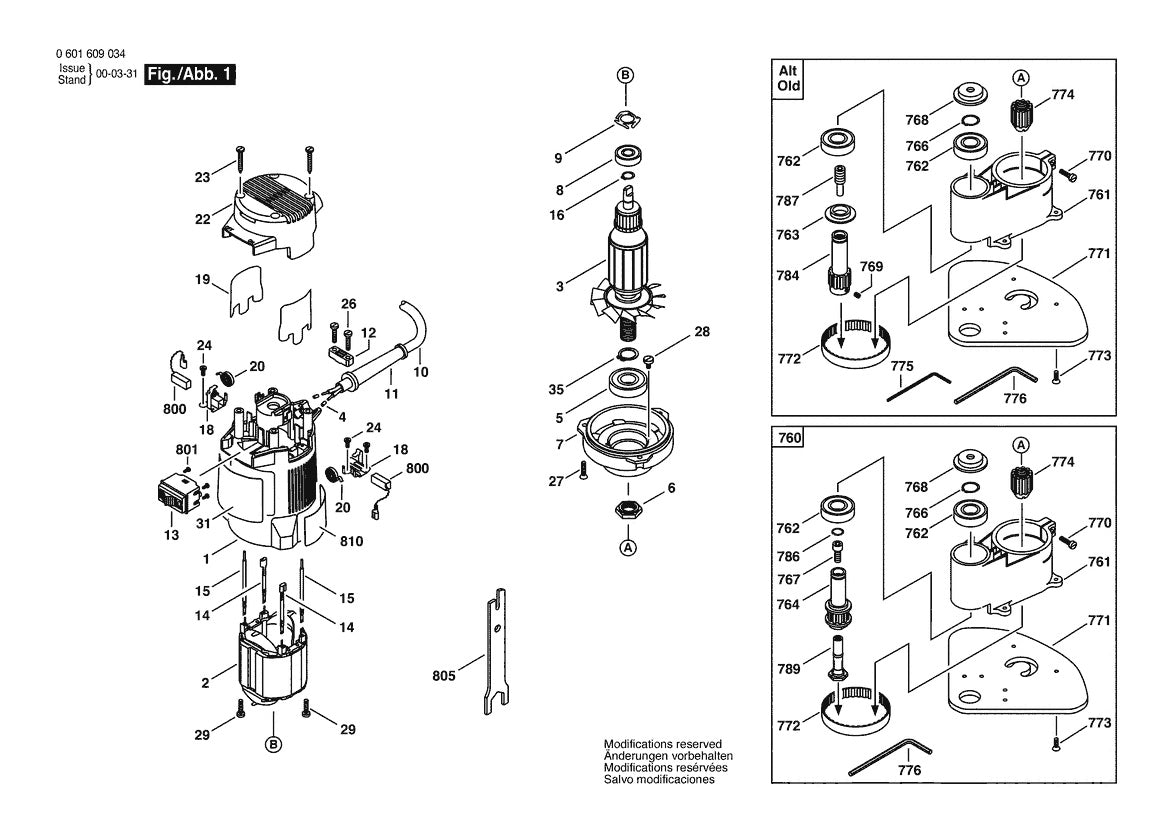

601609034 Bosch Laminate Trimmer Parts Diagram

601609034 Bosch Laminate Trimmer Parts Diagram

  • 601609034 Bosch Laminate Trimmer Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
3605108573 Motor Housing by Bosch
$21.32
4
1900452012 End Splice | Genuine OEM Bosch Part
$4.89
6
3603311521 Hexagon Nut | Genuine OEM Bosch Part
$3.91
8
1900905018 Deep Groove Ball Bearing by Bosch
$21.54
9
3600150501 Spring Lock Washer by Bosch
$4.89
10
3604460555 Cord | Genuine OEM Bosch Part
$10.84
11
2600703013 Grommet | Genuine OEM Bosch Part
$4.89
16
2916640004 C-clip | Genuine OEM Bosch Part
$3.91
18
2601323021 Brush Holder by Bosch
$3.91
22
3605500580 Housing Cover by Bosch
$10.73
26
2910211019 Sheet Metal Screw by Bosch
$4.89
35
2916650003 C-clip | Genuine OEM Bosch Part
$3.91
766
3600119508 Retaining Ring by Bosch
$3.91
767
2910141154 Hex-socket-head Cap Screw by Bosch
$3.91
768
3605510542 Dust-protection Cover by Bosch
$3.91
770
2910021122 Cheese Head Screw by Bosch
$3.91
771
3601071500 Base Plate | Genuine OEM Bosch Part
$8.27
773
3603415562 Screw | Genuine OEM Bosch Part
$3.91
775
1907950002 Offset Screwdriver by Bosch
$5.28
786
2916660042 Retaining Ring by Bosch
$3.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

View the Bosch 601609034 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
