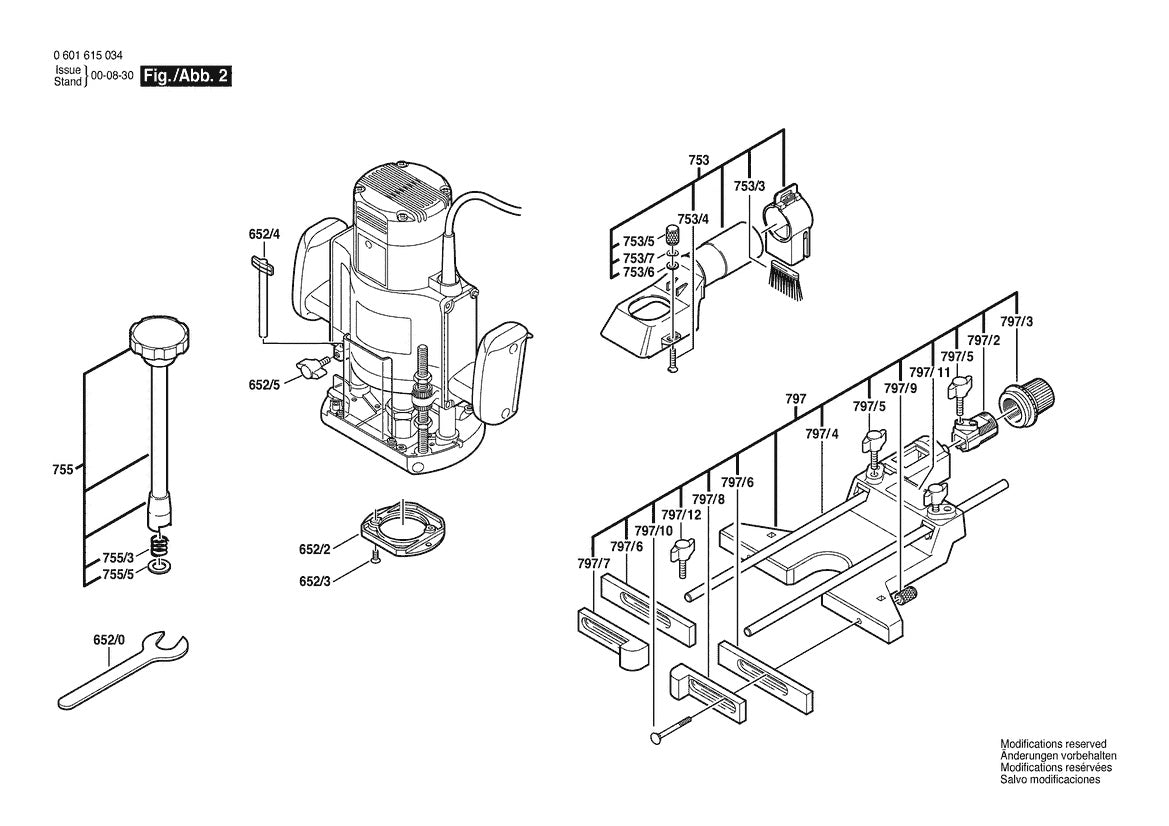

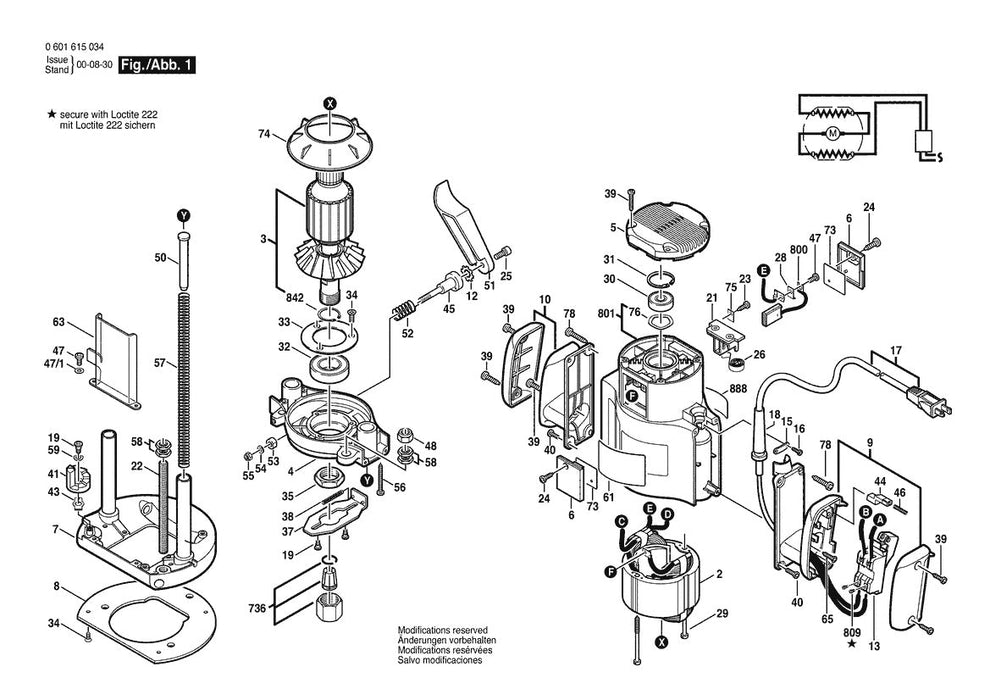

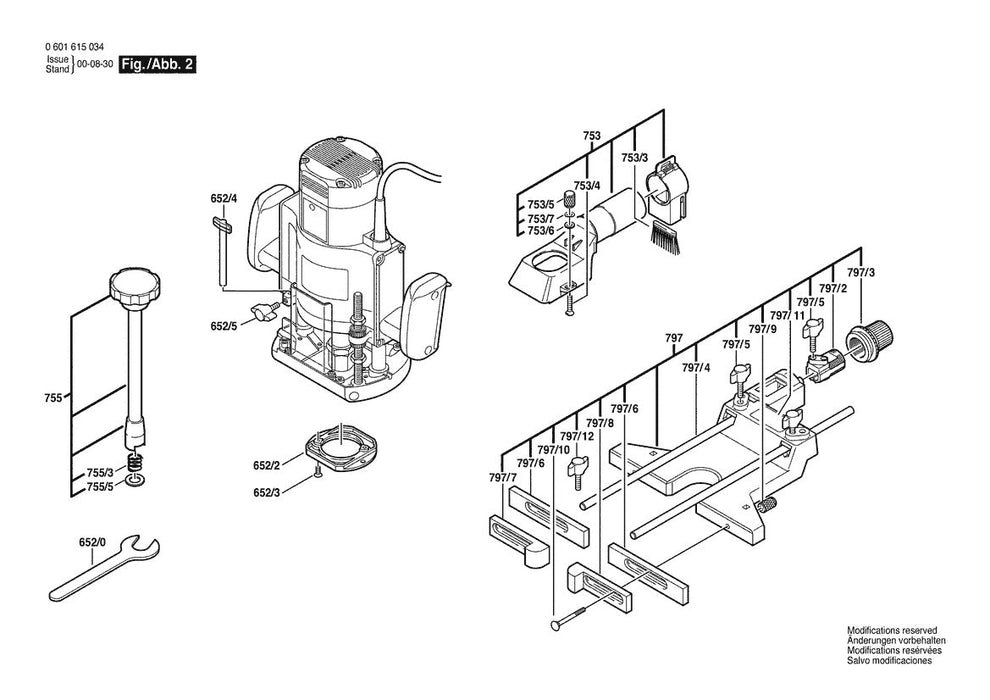

601615034 Bosch Router Parts Diagram

601615034 Bosch Router Parts Diagram

Skip to product information
1 of 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
3604011626 Armature | Genuine OEM Bosch Part
$157.65
3
2916650014 C-clip | Genuine OEM Bosch Part
$3.91
14
2916650014 C-clip | Genuine OEM Bosch Part
$3.91
4
3605702592 Fan Housing | Genuine OEM Bosch Part
$48.23
13
2603410001 Cheese Head Screw by Bosch
$4.89
1
2603410001 Cheese Head Screw by Bosch
$4.89
16
2910211211 Sheet Metal Screw by Bosch
$3.91
18
3600707503 Grommet | Genuine OEM Bosch Part
$4.89
19
3603415556 Slotted Pan-head Screw by Bosch
$3.91
21
1604336008 Brush Holder by Bosch
$31.89
25
2910141197 Hex Socket Head Cap Screw by Bosch
$5.09
26
1614652001 Spiral Spring by Bosch
$5.09
29
1613412001 Sheet Metal Screw by Bosch
$3.91
30
1900905276 Deep-groove Ball Bearing by Bosch
$8.18
32
3600900526 Deep-groove Ball Bearing by Bosch
$9.41
35
3603301522 Hexagon Nut | Genuine OEM Bosch Part
$24.90
40
3603415540 Cheese Head Screw by Bosch
$3.91
41
3600232503 Depth-gauge | Genuine OEM Bosch Part
$14.04
44
3602033501 Locking Lever by Bosch
$3.91
46
3604613503 Compression Spring by Bosch
$3.91
47
2910951118 Oval-head Screw by Bosch
$3.91
47
2916011010 Plain Washer by Bosch
$3.91
1
2916011010 Plain Washer by Bosch
$3.91
54
3604619502 Compression Spring by Bosch
$3.91
57
2915055108 Hexagon Nut | Genuine OEM Bosch Part
$3.91
58
3916060500 Spring Washer by Bosch
$3.91
59
2910211236 Sheet Metal Screw by Bosch
$3.91
78
3603415553 Cheese Head Screw by Bosch
$3.91
652
1613480008 Wing Screw 6x20 by Bosch
$4.89
3
1613480008 Wing Screw 6x20 by Bosch
$4.89
652
2916011012 Plain Washer by Bosch
$3.91
5
2916011012 Plain Washer by Bosch
$3.91
652
2607950511 Wrench | Genuine OEM Bosch Part
$4.89
5
2607950511 Wrench | Genuine OEM Bosch Part
$4.89
753
RA1054 Router Guide | Genuine OEM Bosch Part
$110.55
6
RA1054 Router Guide | Genuine OEM Bosch Part
$110.55
809
3600360508 Adjustment Knob by Bosch
$6.11
652
3603001518 Guide Rod | Genuine OEM Bosch Part
$10.73
0
3603001518 Guide Rod | Genuine OEM Bosch Part
$10.73
797
1607014103 Carbon-brush Set by Bosch
$17.80
