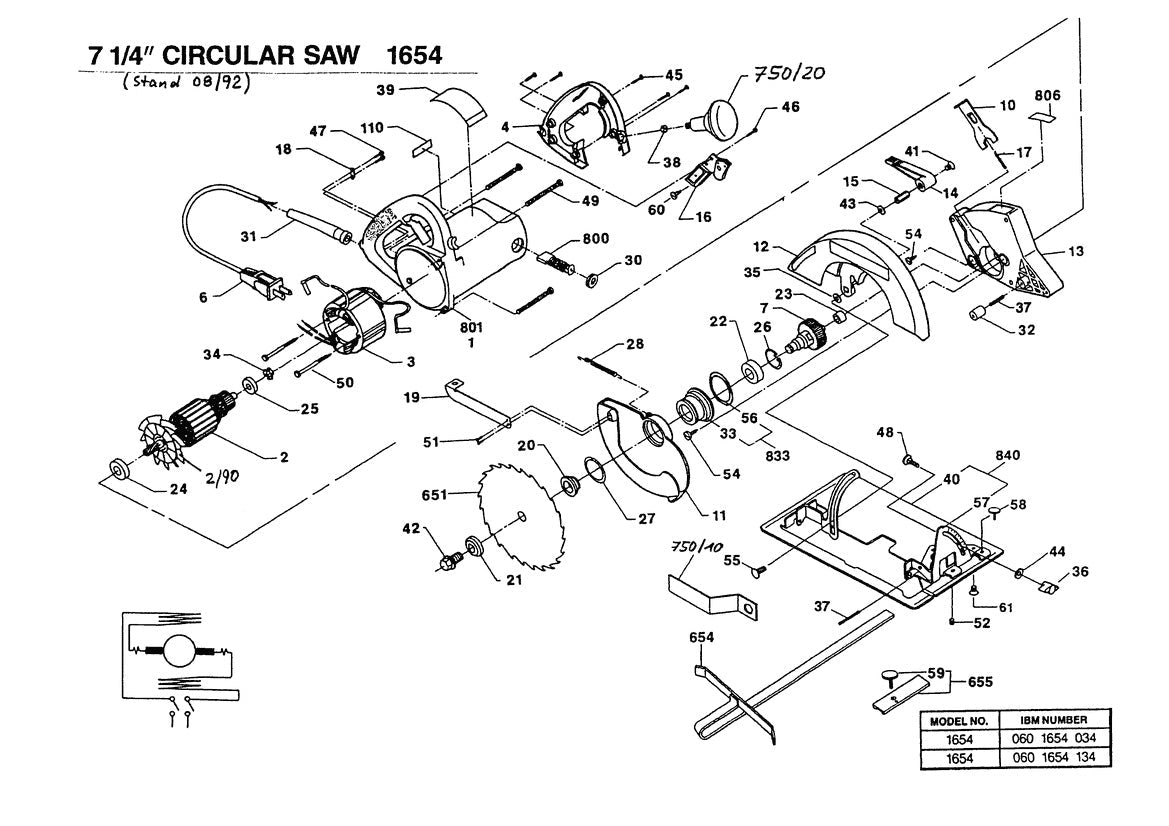

1654 (0601654534) Bosch Circular Saw Parts Diagram

1654 (0601654534) Bosch Circular Saw Parts Diagram

  • 1654 (0601654534) Bosch Circular Saw Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
17
3604613504 Spring | Genuine OEM Bosch Part
$3.91
25
2610904891 Ball Bearing by Bosch
$4.89
31
3600707503 Grommet | Genuine OEM Bosch Part
$4.89
41
2910141197 Hex Socket Head Cap Screw by Bosch
$5.09
44
2916011014 Plain Washer by Bosch
$3.91
46
2910611424 Sheet Metal Screw by Bosch
$3.91
46
1613435009 Sheet Metal Screw by Bosch
$3.91
50
3601016507 Gasket | Genuine OEM Bosch Part
$3.91
56
3603433506 Cheese Head Screw by Bosch
$3.91
60
3603415553 Cheese Head Screw by Bosch
$3.91
61
2602026001 Handle Black by Bosch
$4.89
View full details
