601912460 Bosch Cordless Drill Parts Diagram

601912460 Bosch Cordless Drill Parts Diagram

  • 601912460 Bosch Cordless Drill Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
2
2606316222 Pinion | Genuine OEM Bosch Part
$5.28
1
2606316222 Pinion | Genuine OEM Bosch Part
$5.28
2
2607200456 On-off Switch by Bosch
$69.56
4
2607200456 On-off Switch by Bosch
$69.56
5
2601099112 Adjusting Slide Lever-red by Bosch
$4.89
10
2600508051 Cover | Genuine OEM Bosch Part
$4.89
11
2600508052 Cover | Genuine OEM Bosch Part
$4.89
32
2601099127 Adjusting Slide by Bosch
$6.11
61
2608040190 Support | Genuine OEM Bosch Part
$12.34
101
2603490018 Screw | Genuine OEM Bosch Part
$3.91
101
2603421229 Torx Flat Head Screw by Bosch
$3.91
107
2604690026 Spring Element by Bosch
$3.91
108
2609100101 Cap | Genuine OEM Bosch Part
$3.91
652
2605105916 Housing Section by Bosch
$43.33
801
2607022864 Direct-current Motor by Bosch
$99.23
802
2607034904 Carbon Brush Set by Bosch
$12.46
816
2606200931 Epicycloidal Gear Train by Bosch
$140.42
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

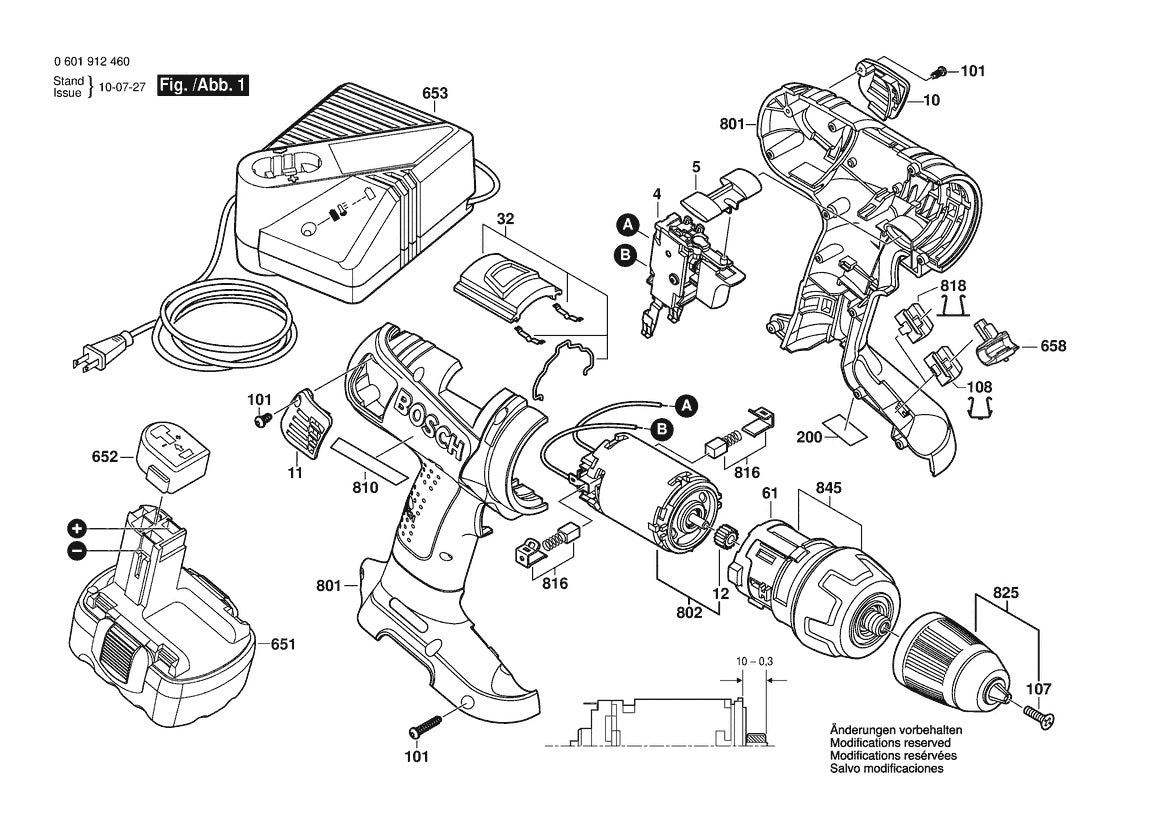

View the Bosch 601912460 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
