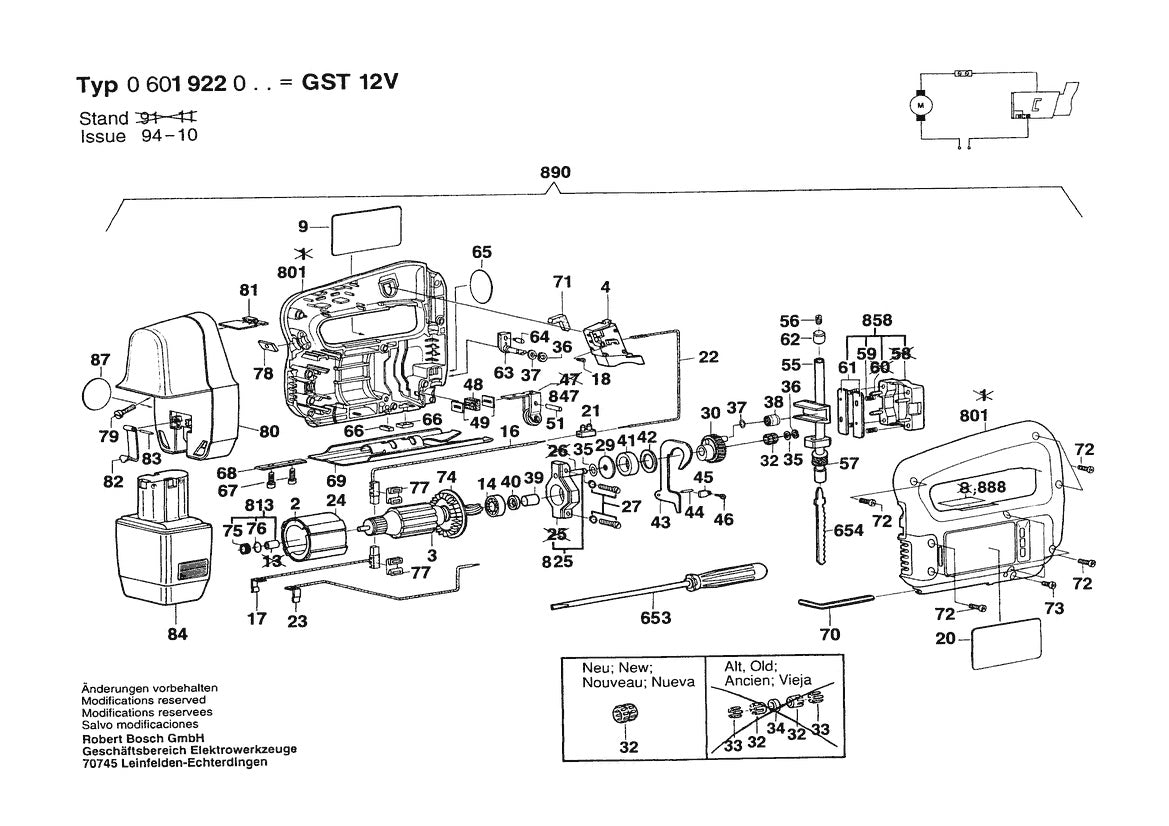

601922039 Bosch Jig Saw Parts Diagram

601922039 Bosch Jig Saw Parts Diagram

  • 601922039 Bosch Jig Saw Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
14
2600905021 Deep-groove Ball Bearing by Bosch
$10.84
18
2603410001 Cheese Head Screw by Bosch
$4.89
32
2600917900 Needle Sleeve by Bosch
$9.41
33
2603201037 Needle Roller by Bosch
$4.89
35
2600100607 Shim | Genuine OEM Bosch Part
$3.91
37
2600100568 Shim | Genuine OEM Bosch Part
$4.89
37
2610914920 Sheet Metal Screw by Bosch
$3.91
38
2917530101 Straight Pin by Bosch
$4.89
46
2603400000 Clamp Screw | Genuine OEM Bosch Part
$4.89
51
2600101612 Shim | Genuine OEM Bosch Part
$4.89
56
2604613000 Compression Spring by Bosch
$3.91
57
2600302006 Bushing | Genuine OEM Bosch Part
$3.91
59
2600590006 Ratchet Cap | Genuine OEM Bosch Part
$4.89
62
2601030006 Fastening Plate by Bosch
$3.91
64
2910021122 Cheese Head Screw by Bosch
$3.91
66
2610921483 Wrench | Genuine OEM Bosch Part
$4.89
67
2601022000 Damping Plate by Bosch
$3.91
70
2910611020 Sheet Metal Screw by Bosch
$4.89
71
2910021162 Screw | Genuine OEM Bosch Part
$3.91
72
1903201044 Pin | Genuine OEM Bosch Part
$3.91
79
1600301900 Sintered-metal Bushing by Bosch
$3.91
View full details
