601942006 Bosch Heat Gun Parts Diagram

601942006 Bosch Heat Gun Parts Diagram

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
3609351500 Housing Set | Genuine OEM Bosch Part
$91.40
2
3609341500 Stator | Genuine OEM Bosch Part
$59.61
3
3609340500 Armature | Genuine OEM Bosch Part
$83.73
4
3609372500 Switch | Genuine OEM Bosch Part
$44.19
5
3609344500 Power Cord | Genuine OEM Bosch Part
$55.00
6
3609307501 Grommet | Genuine OEM Bosch Part
$9.50
7
3609370515 Clamp | Genuine OEM Bosch Part
$7.14
10
2610015670 Carbon-brush Set by Bosch
$31.58
14
3609358500 Bearing Bracket by Bosch
$27.69
15
3609366500 Fan | Genuine OEM Bosch Part
$37.75
16
3609370507 Holder | Genuine OEM Bosch Part
$22.66
19
3609370501 Screw | Genuine OEM Bosch Part
$4.89
23
3609370503 Retaining Ring by Bosch
$3.91
24
3609355500 Lock | Genuine OEM Bosch Part
$37.75
25
3609332500 Knob | Genuine OEM Bosch Part
$5.28
26
3609346500 Spring | Genuine OEM Bosch Part
$3.91
27
3609302500 Retaining Ring by Bosch
$3.91
28
3609334500 Screw | Genuine OEM Bosch Part
$3.91
29
3609334501 Screw | Genuine OEM Bosch Part
$3.91
30
3609302503 Retaining Ring by Bosch
$3.91
31
3609370512 Sleeve | Genuine OEM Bosch Part
$27.69
32
3609307500 Tube | Genuine OEM Bosch Part
$22.66
34
3609334502 Screw | Genuine OEM Bosch Part
$5.38
35
3609334503 Screw | Genuine OEM Bosch Part
$4.89
37
3609370516 Screw | Genuine OEM Bosch Part
$3.91
38
3609310500 Plate | Genuine OEM Bosch Part
$7.01
39
3609314501 Screw | Genuine OEM Bosch Part
$4.89
40
3609370514 Screw | Genuine OEM Bosch Part
$4.89
41
3609351501 Handle | Genuine OEM Bosch Part
$28.24
42
3609370504 Washer | Genuine OEM Bosch Part
$3.91
44
3609370506 Screw | Genuine OEM Bosch Part
$3.91
45
3609370511 Nut | Genuine OEM Bosch Part
$3.91
46
3609314500 Washer | Genuine OEM Bosch Part
$9.32
47
3609302501 Washer | Genuine OEM Bosch Part
$3.91
701
3609390500 Shrinkable Tube by Bosch
$43.33
702
3609390501 Shrinkable Tube by Bosch
$48.23
703
3609390502 Deflector | Genuine OEM Bosch Part
$59.61
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

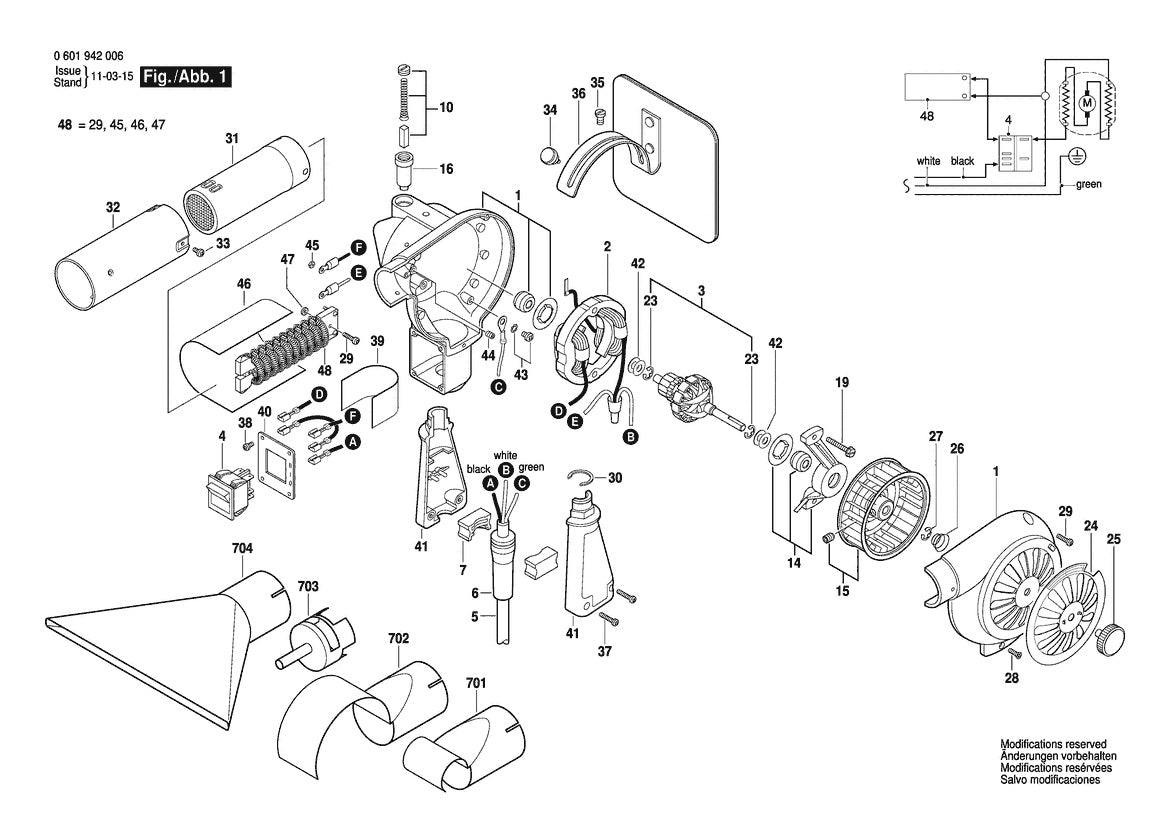

View the Bosch 601942006 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
