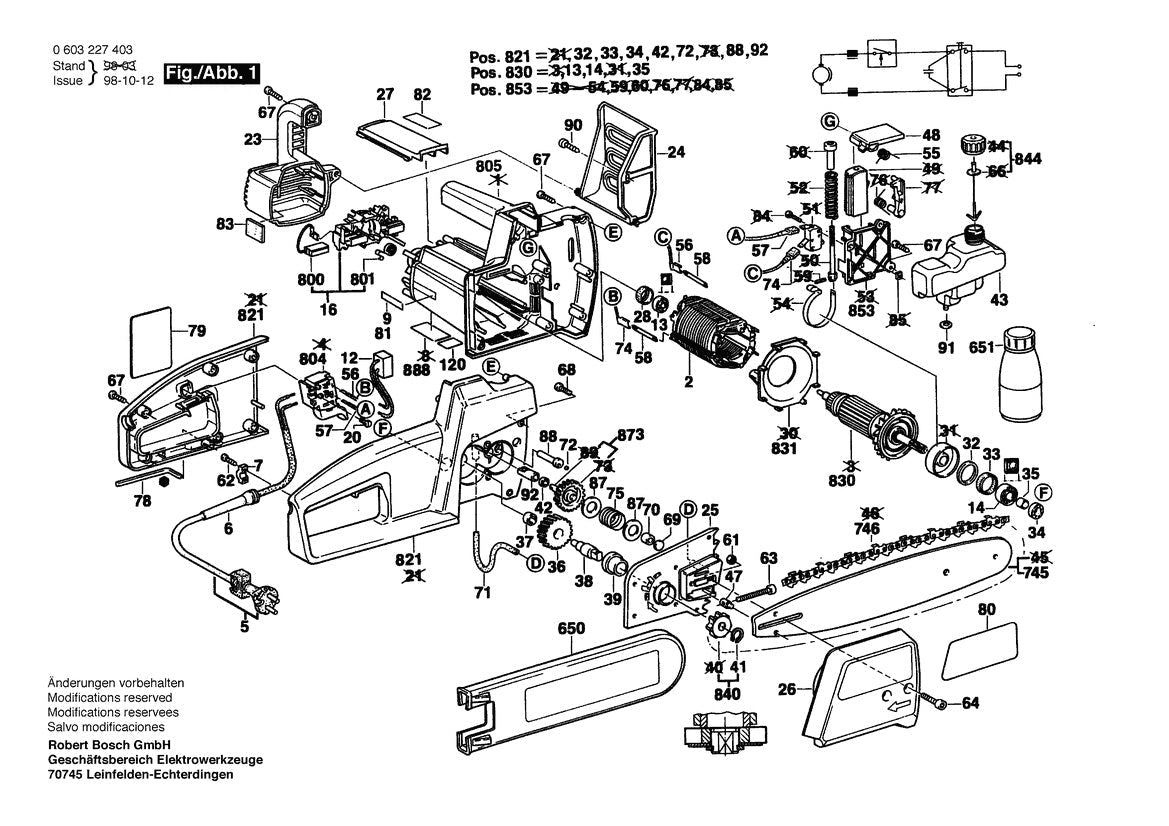

603227439 Bosch Saw Parts Diagram

603227439 Bosch Saw Parts Diagram

  • 603227439 Bosch Saw Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
7
1611035005 Cable Clip | Genuine OEM Bosch Part
$3.91
13
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
14
1900905025 Deep-groove Ball Bearing by Bosch
$22.66
20
2603410001 Cheese Head Screw by Bosch
$4.89
33
1600206026 Intermediate Ring by Bosch
$3.91
34
1600290016 Radial-lip-type Oil Seal by Bosch
$3.91
35
1600300090 Intermediate Ring by Bosch
$3.91
37
1600910018 Needle Bushing by Bosch
$3.91
41
2916650003 C-clip | Genuine OEM Bosch Part
$3.91
58
1604477005 Blade Terminal by Bosch
$3.91
64
2910141203 Hex-socket-head Cap Screw by Bosch
$3.91
67
2910611020 Sheet Metal Screw by Bosch
$4.89
72
1903230007 Ball | Genuine OEM Bosch Part
$4.89
78
2610364015 Allen Wrench by Bosch
$4.89
82
1601110058 Reference Plate by Bosch
$3.91
90
2910211006 Screw | Genuine OEM Bosch Part
$3.91
800
1607014129 Carbon-brush Set by Bosch
$17.61
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
