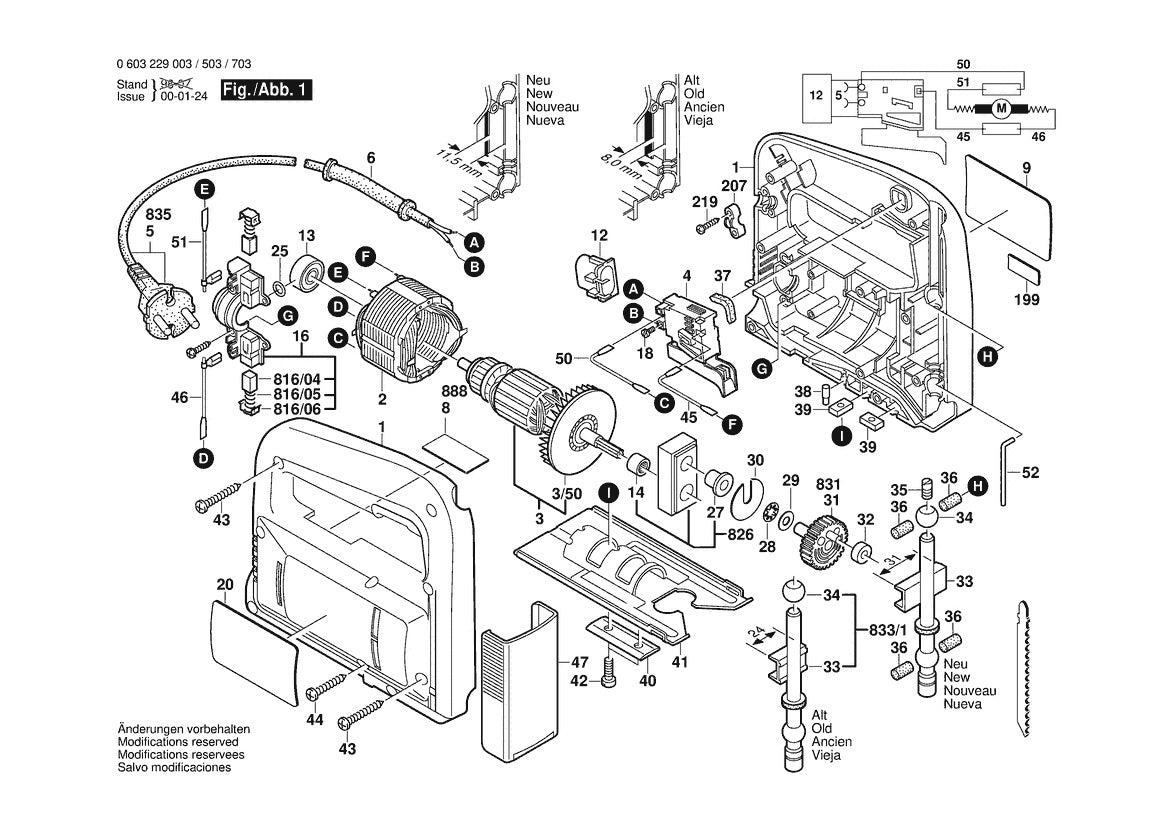

603229039 Bosch Jig Saw Parts Diagram

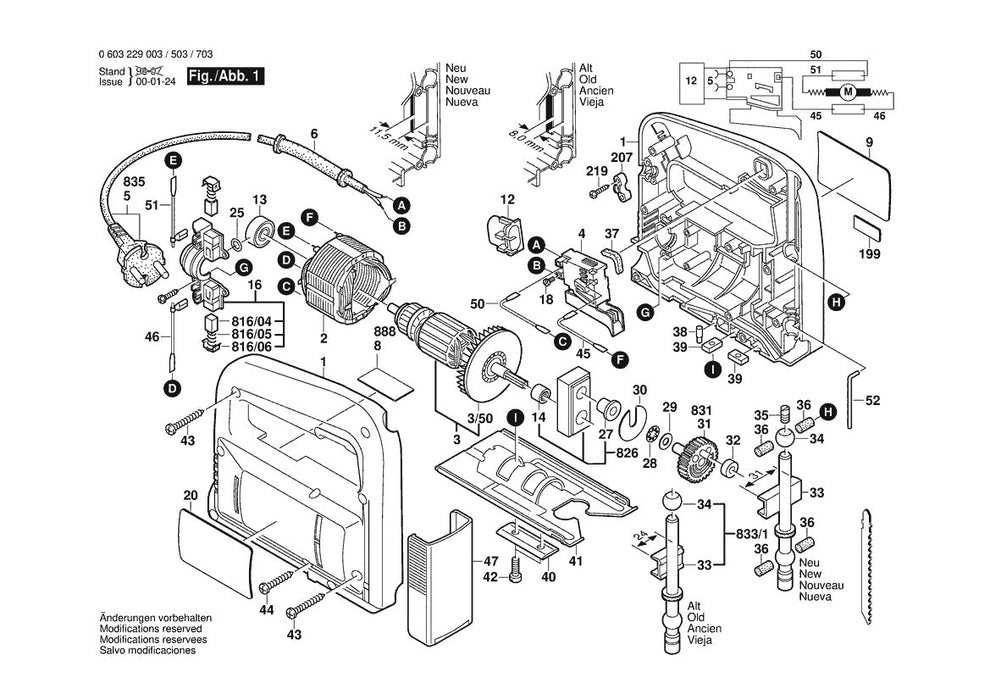

603229039 Bosch Jig Saw Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
1606610116 Fan | Genuine OEM Bosch Part
$3.91
50
1606610116 Fan | Genuine OEM Bosch Part
$3.91
4
2607200260 On-off Switch by Bosch
$12.46
6
2600703008 Grommet | Genuine OEM Bosch Part
$3.91
8
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
13
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
14
1600910018 Needle Bushing by Bosch
$3.91
16
2604337122 Brush Plate | Genuine OEM Bosch Part
$15.93
18
2603410001 Cheese Head Screw by Bosch
$4.89
29
2600100505 Plain Washer by Bosch
$3.91
35
2603400000 Clamp Screw | Genuine OEM Bosch Part
$4.89
37
2601022000 Damping Plate by Bosch
$3.91
39
2601030006 Fastening Plate by Bosch
$3.91
41
2601016012 Base Plate | Genuine OEM Bosch Part
$9.50
42
2910021122 Cheese Head Screw by Bosch
$3.91
43
2603490021 Screw | Genuine OEM Bosch Part
$3.91
45
2604448118 Connecting Cable by Bosch
$3.91
816
2601322017 Ratchet Cap | Genuine OEM Bosch Part
$3.91
060
2601322017 Ratchet Cap | Genuine OEM Bosch Part
$3.91
View full details
