603254039 Bosch Sander Parts Diagram

603254039 Bosch Sander Parts Diagram

  • 603254039 Bosch Sander Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
34
2603410001 Cheese Head Screw by Bosch
$4.89
3
2606610027 Fan | Genuine OEM Bosch Part
$3.91
50
2606610027 Fan | Genuine OEM Bosch Part
$3.91
22
2601022000 Damping Plate by Bosch
$3.91
33
1900905122 Deep-groove Ball Bearing by Bosch
$10.73
810
2604321904 Carbon-brush Set by Bosch
$10.84
41
2916660011 C-clip | Genuine OEM Bosch Part
$3.91
25
2600100041 Plain Washer by Bosch
$3.91
17
2600910005 Needle Bushing by Bosch
$3.91
30
1903230004 Ball 3mm | Genuine OEM Bosch Part
$3.91
39
2910021154 Screw | Genuine OEM Bosch Part
$3.91
33
1900905162 Ball Bearing by Bosch
$21.32
28
2600905013 Ball Bearing by Bosch
$10.73
808
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

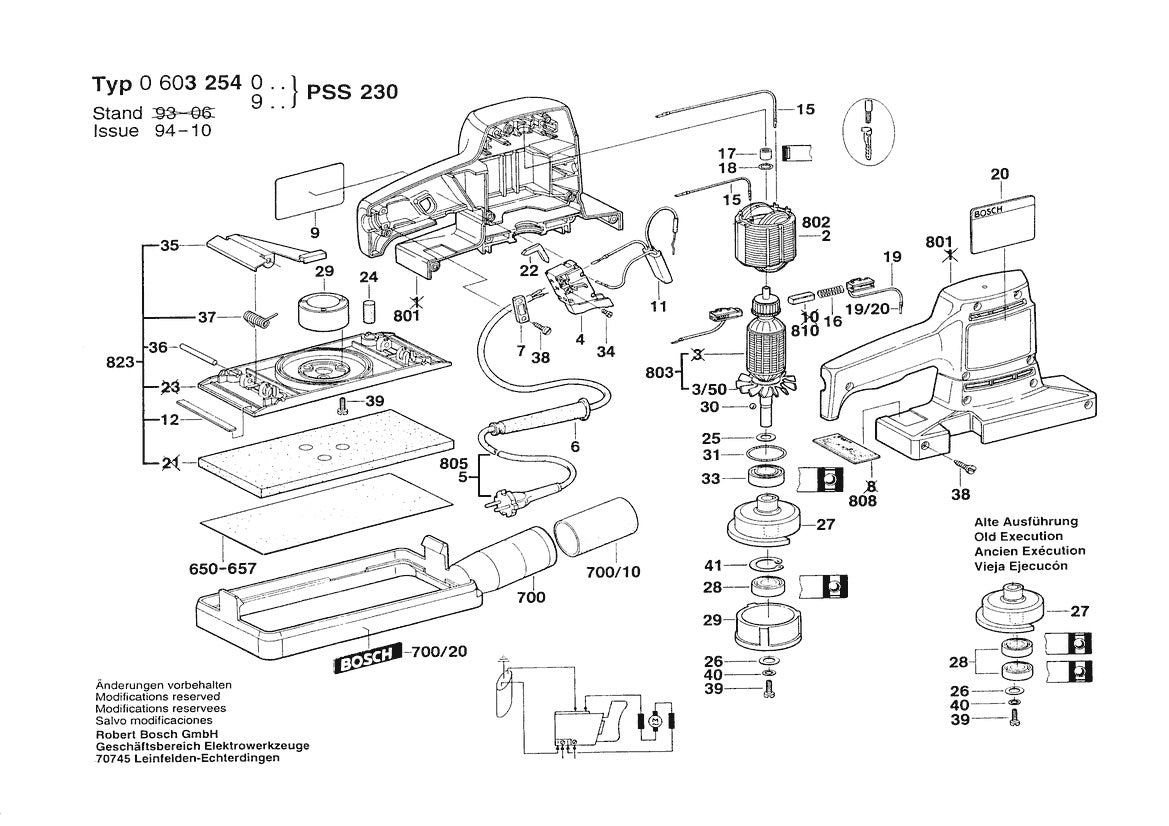

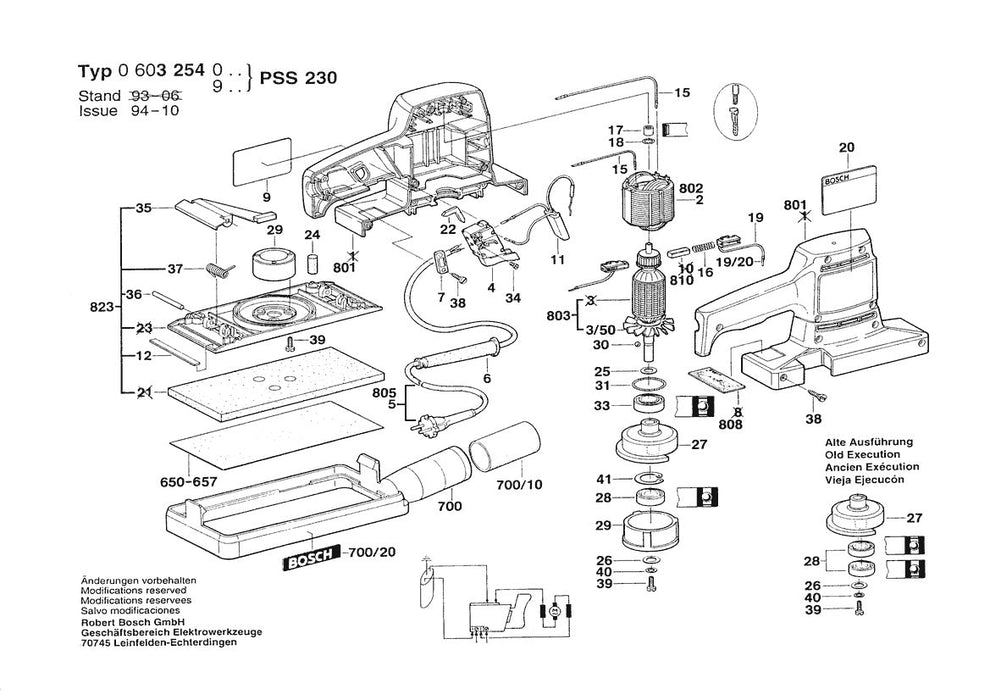

View the Bosch 603254039 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
