603258139 Bosch Planer Parts Diagram

603258139 Bosch Planer Parts Diagram

  • 603258139 Bosch Planer Parts Diagram
  • 603258139 Bosch Planer Parts Diagram
1 2
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
56
2603410001 Cheese Head Screw by Bosch
$4.89
30
2610914920 Sheet Metal Screw by Bosch
$3.91
18
2606610049 Fan | Genuine OEM Bosch Part
$3.91
22
2600910001 Needle Bushing by Bosch
$3.91
42
1604619017 Compression Spring by Bosch
$4.89
49
1610905025 Ball Bearing by Bosch
$7.08
20
2910211019 Sheet Metal Screw by Bosch
$4.89
29
1600206025 Intermediate Ring by Bosch
$3.91
6
2600703013 Grommet | Genuine OEM Bosch Part
$4.89
9
1601110481 Manufacturers Nameplate by Bosch
$3.91
25
2600100588 Plain Washer by Bosch
$3.91
43
3603342003 Adjusting Nut by Bosch
$3.91
38
1608000091 Base Plate | Genuine OEM Bosch Part
$5.38
54
2610921483 Wrench | Genuine OEM Bosch Part
$4.89
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
700
1613480008 Wing Screw 6x20 by Bosch
$4.89
20
1613480008 Wing Screw 6x20 by Bosch
$4.89
704
2916011010 Plain Washer by Bosch
$3.91
90
2916011010 Plain Washer by Bosch
$3.91
700
2916011014 Plain Washer by Bosch
$3.91
30
2916011014 Plain Washer by Bosch
$3.91
704
1610210043 O-ring | Genuine OEM Bosch Part
$4.89
10
1610210043 O-ring | Genuine OEM Bosch Part
$4.89
704
1601332018 Stop Bracket by Bosch
$3.91
40
1601332018 Stop Bracket by Bosch
$3.91
704
2910281203 Round-head Bolt by Bosch
$3.91
50
2910281203 Round-head Bolt by Bosch
$3.91
702
2603490017 Screw | Genuine OEM Bosch Part
$3.91
50
2603490017 Screw | Genuine OEM Bosch Part
$3.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

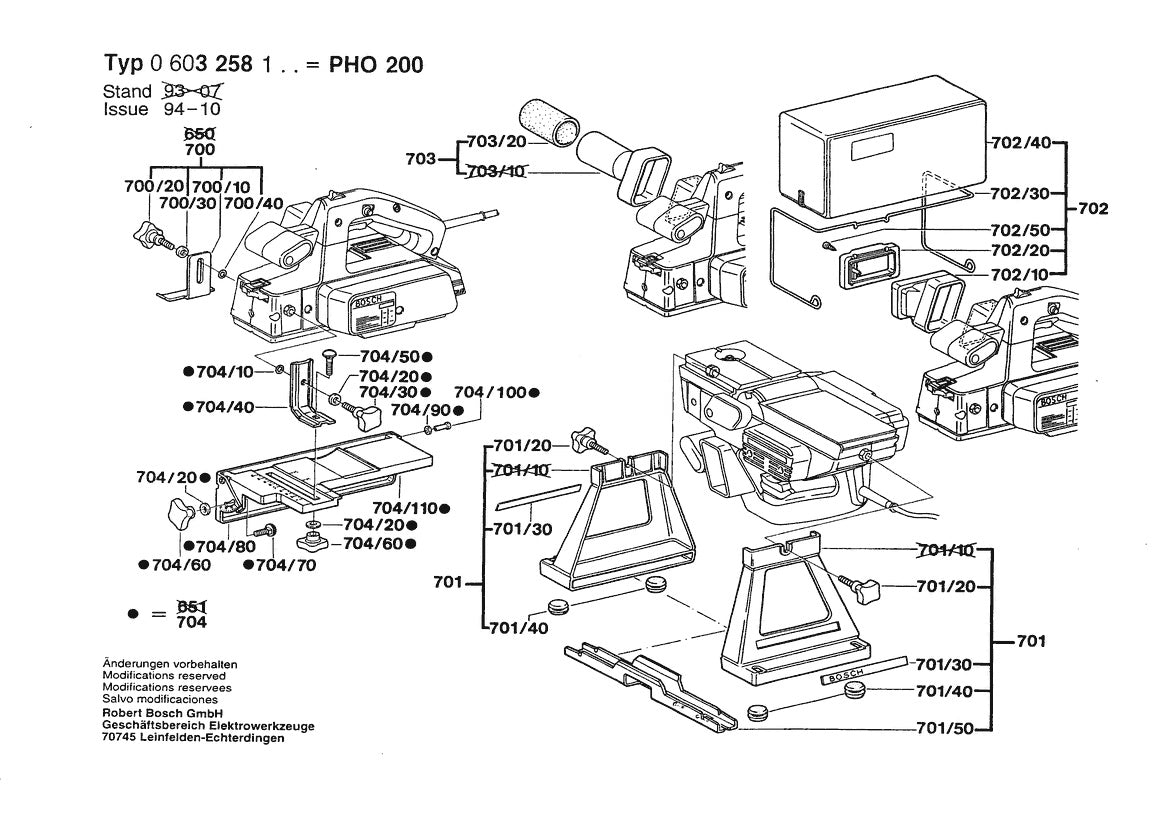

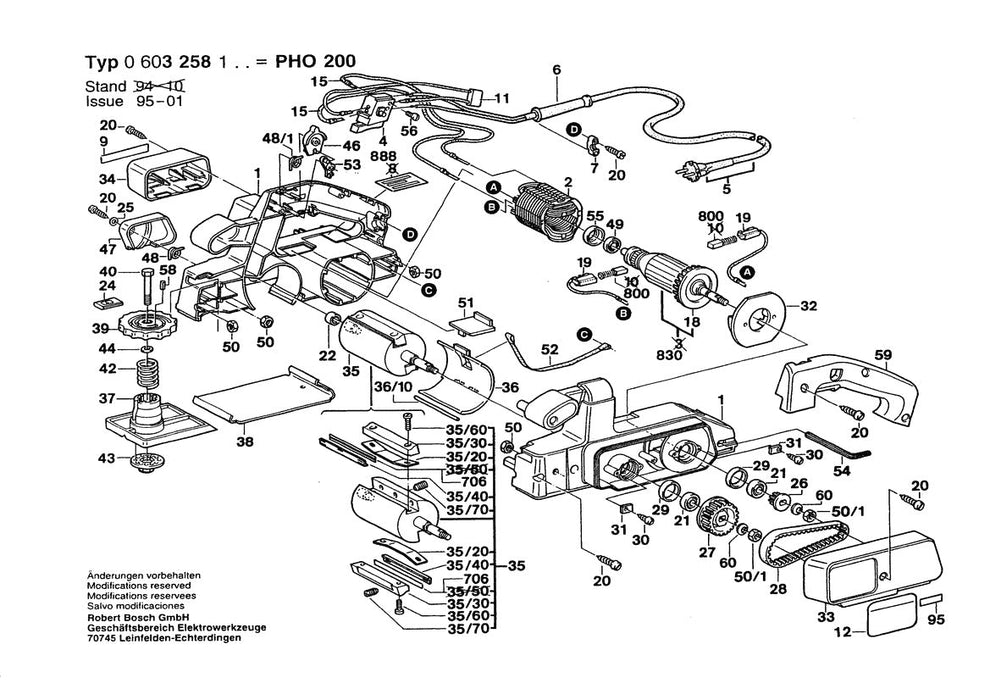

View the Bosch 603258139 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
