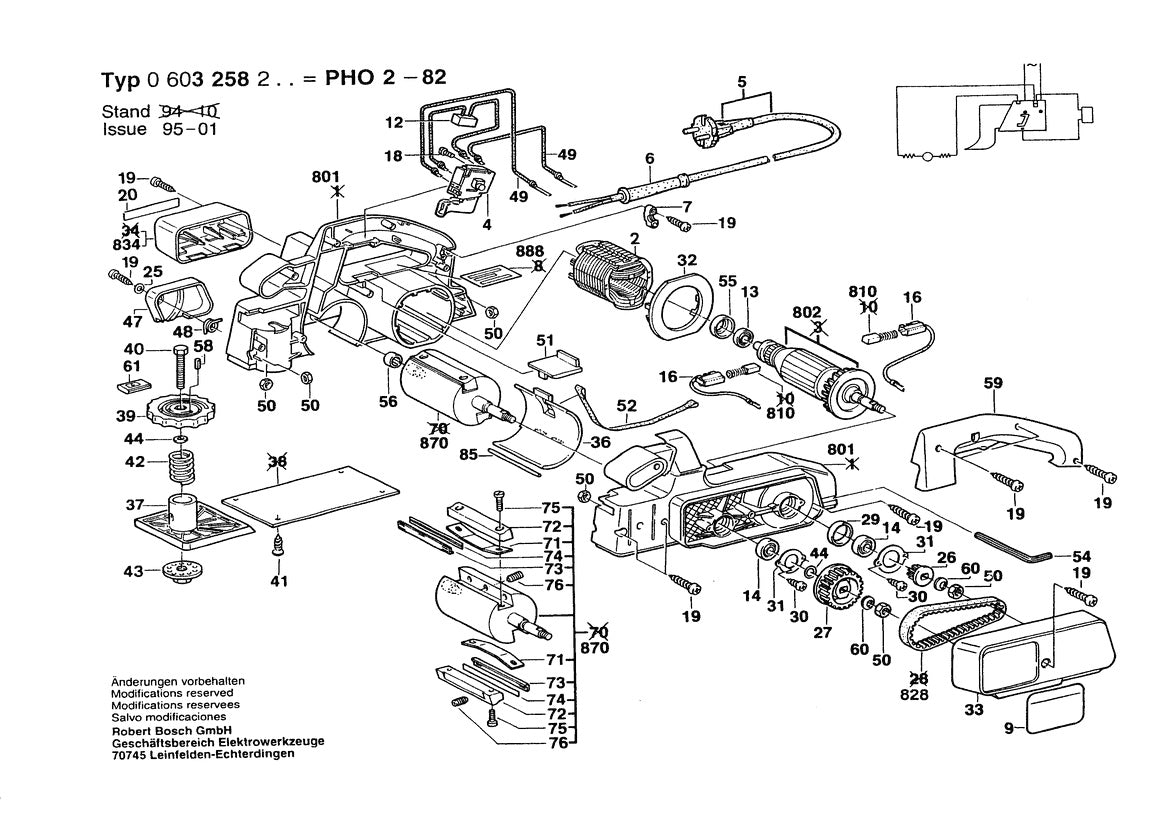

603258239 Bosch Planer Parts Diagram

603258239 Bosch Planer Parts Diagram

  • 603258239 Bosch Planer Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
18
2603410001 Cheese Head Screw by Bosch
$4.89
56
2600910001 Needle Bushing by Bosch
$3.91
42
1604619017 Compression Spring by Bosch
$4.89
75
2910021126 Cheese Head Screw by Bosch
$3.91
4
2607200260 On-off Switch by Bosch
$12.46
13
1610905025 Ball Bearing by Bosch
$7.08
29
1600206025 Intermediate Ring by Bosch
$3.91
2
1604220226 Field | Genuine OEM Bosch Part
$34.71
20
1601110481 Manufacturers Nameplate by Bosch
$3.91
25
2600100588 Plain Washer by Bosch
$3.91
43
3603342003 Adjusting Nut by Bosch
$3.91
49
2604448062 Connecting Cable by Bosch
$3.91
6
2600703008 Grommet | Genuine OEM Bosch Part
$3.91
16
2604449027 Brush Holder by Bosch
$3.91
30
2603490017 Screw | Genuine OEM Bosch Part
$3.91
54
2610921483 Wrench | Genuine OEM Bosch Part
$4.89
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

View the Bosch 603258239 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
