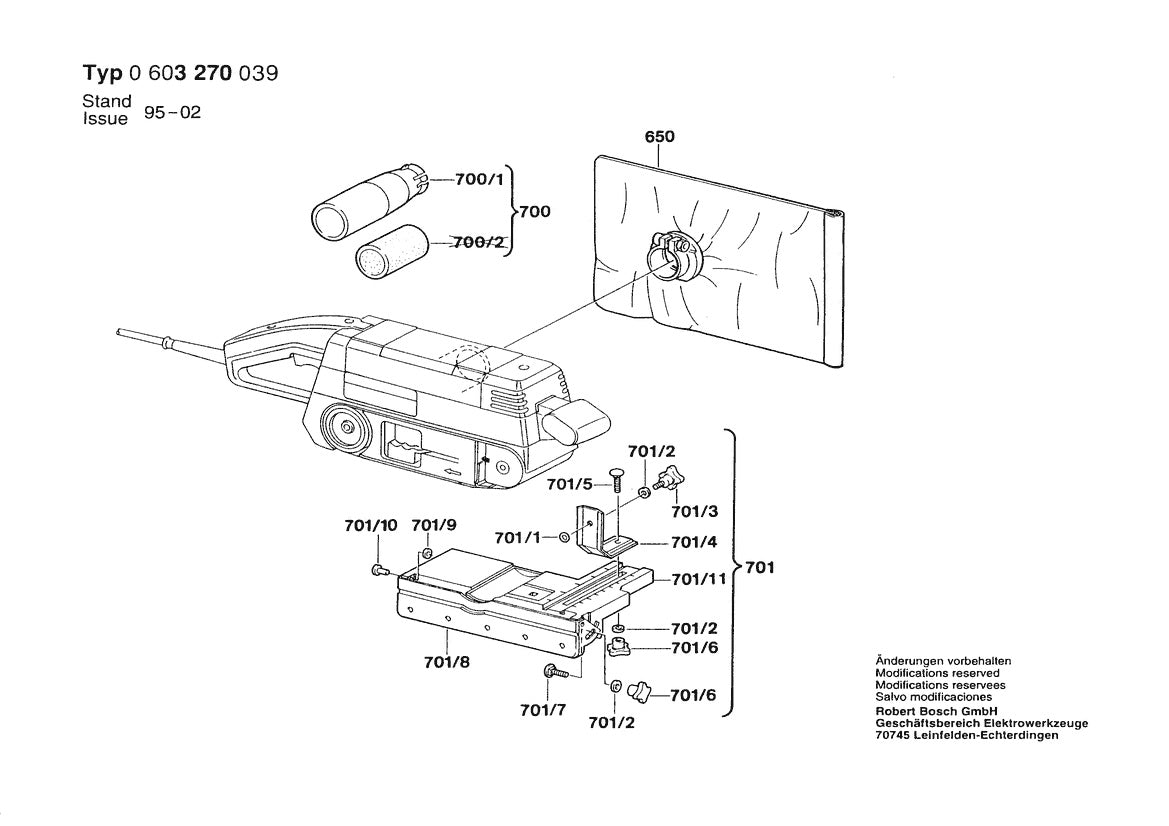

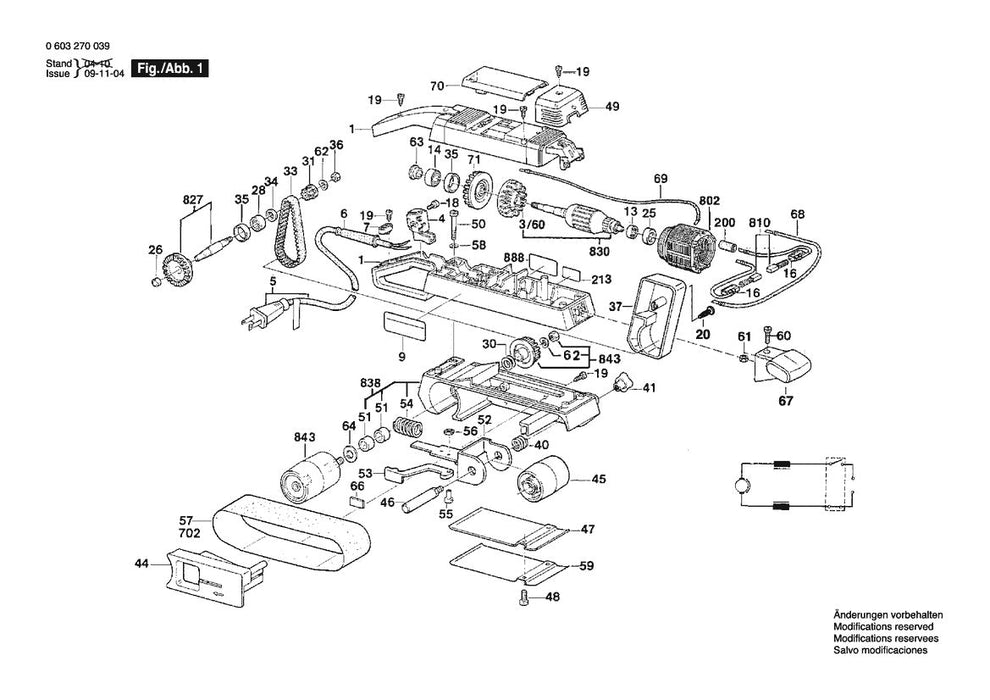

603270039 Bosch Sander Parts Diagram

603270039 Bosch Sander Parts Diagram

Skip to product information
1 of 2
Ref. Details
1
2605104549 Motor Housing by Bosch
$37.75
3
2606610049 Fan | Genuine OEM Bosch Part
$3.91
60
2606610049 Fan | Genuine OEM Bosch Part
$3.91
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600703018 Grommet | Genuine OEM Bosch Part
$4.89
13
2605805008 Flanged Bearing by Bosch
$5.33
14
1610905011 Deep-groove Ball Bearing by Bosch
$17.80
16
2604449026 Brush Holder by Bosch
$3.91
18
2603410001 Cheese Head Screw by Bosch
$4.89
26
2600910001 Needle Bushing by Bosch
$3.91
28
1619P01511 Ball Bearing by Bosch
$4.89
30
2600100099 Shim | Genuine OEM Bosch Part
$3.91
33
1604736005 Toothed Belt by Bosch
$10.84
35
1600206024 Intermediate Ring by Bosch
$3.91
37
1605510150 Hood | Genuine OEM Bosch Part
$4.89
40
2604630002 Compression Spring by Bosch
$3.91
41
2603339005 Wing Nut | Genuine OEM Bosch Part
$4.89
44
1608005004 Base | Genuine OEM Bosch Part
$15.77
45
2606625900 Roller | Genuine OEM Bosch Part
$19.87
46
1603521027 Axle | Genuine OEM Bosch Part
$10.95
48
2603410045 Cheese Head Screw by Bosch
$3.91
49
1605500122 Brush-cover | Genuine OEM Bosch Part
$6.11
50
2910011170 Cheese Head Screw by Bosch
$3.91
51
2600301089 Sintered-metal Bushing by Bosch
$4.89
52
1605807013 Bearing Bracket by Bosch
$9.50
53
1602098006 Tensioning Lever by Bosch
$5.09
54
1604619017 Compression Spring by Bosch
$4.89
58
2916690004 Lock Washer | Genuine OEM Bosch Part
$3.91
60
2910021126 Cheese Head Screw by Bosch
$3.91
64
1600101618 Shim | Genuine OEM Bosch Part
$3.91
66
1601010007 Ceramic Plate by Bosch
$3.91
67
1605133036 Handle | Genuine OEM Bosch Part
$8.18
68
1604438018 Connecting Cable by Bosch
$3.91
69
1604448000 Connecting Cable by Bosch
$3.91
70
1605500120 Housing Cover by Bosch
$4.89
71
1606610120 Fan | Genuine OEM Bosch Part
$3.91
200
1610712034 Shrinkable Tube by Bosch
$3.91
213
1601110058 Reference Plate by Bosch
$3.91
827
2606333900 Crown Gear | Genuine OEM Bosch Part
$23.12
838
2605190900 Housing | Genuine OEM Bosch Part
$59.61
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
700
2600306005 Tailpiece | Genuine OEM Bosch Part
$8.27
1
2600306005 Tailpiece | Genuine OEM Bosch Part
$8.27
701
1610210043 O-ring | Genuine OEM Bosch Part
$4.89
1
1610210043 O-ring | Genuine OEM Bosch Part
$4.89
701
2916011014 Plain Washer by Bosch
$3.91
2
2916011014 Plain Washer by Bosch
$3.91
701
1613480008 Wing Screw 6x20 by Bosch
$4.89
3
1613480008 Wing Screw 6x20 by Bosch
$4.89
701
1601332018 Stop Bracket by Bosch
$3.91
4
1601332018 Stop Bracket by Bosch
$3.91
701
2910281203 Round-head Bolt by Bosch
$3.91
5
2910281203 Round-head Bolt by Bosch
$3.91
701
2916011010 Plain Washer by Bosch
$3.91
9
2916011010 Plain Washer by Bosch
$3.91
650
2610914920 Sheet Metal Screw by Bosch
$3.91
7
2610914920 Sheet Metal Screw by Bosch
$3.91
650
2910011128 Cheese Head Screw by Bosch
$3.91
8
2910011128 Cheese Head Screw by Bosch
$3.91
View full details
