603276039 Bosch Grinder Parts Diagram

603276039 Bosch Grinder Parts Diagram

Skip to product information
1 of 2
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
5
1604460092 Power Cord | Genuine OEM Bosch Part
$17.80
6
3600703011 Cord Protector by Bosch
$4.89
7
1601302013 Fastening Clamp by Bosch
$3.91
13
2600905032 Deep-groove Ball Bearing by Bosch
$3.91
14
3600905131 Ball Bearing by Bosch
$12.34
17
1604652006 Spiral Spring by Bosch
$3.91
20
2910211019 Sheet Metal Screw by Bosch
$4.89
27
1600206026 Intermediate Ring by Bosch
$3.91
34
1600190005 Shim | Genuine OEM Bosch Part
$3.91
39
2600910001 Needle Bushing by Bosch
$3.91
43
1600108055 Sealing Washer by Bosch
$3.91
46
2910021157 Cheese Head Screw by Bosch
$3.91
47
1900905227 Ball Bearing by Bosch
$19.48
50
1603300017 Nut | Genuine OEM Bosch Part
$3.91
53
1601110058 Reference Plate by Bosch
$3.91
57
1601025001 Wire Guide | Genuine OEM Bosch Part
$3.91
59
2610912760 Sheet Metal Screw by Bosch
$3.91
60
2910021118 Cheese Head Screw by Bosch
$4.89
61
2910211038 Sheet Metal Screw by Bosch
$3.91
63
1604477001 Blade Terminal by Bosch
$3.91
65
1900452003 End Splice | Genuine OEM Bosch Part
$4.89
650
1907950007 Offset Screwdriver by Bosch
$5.38
60
1907950007 Offset Screwdriver by Bosch
$5.38
712
2915191007 Wing Nut | Genuine OEM Bosch Part
$3.91
20
2915191007 Wing Nut | Genuine OEM Bosch Part
$3.91
40
2915191007 Wing Nut | Genuine OEM Bosch Part
$3.91
712
2600100041 Plain Washer by Bosch
$3.91
20
2600100041 Plain Washer by Bosch
$3.91
50
2600100041 Plain Washer by Bosch
$3.91
712
1604643003 Compression Spring by Bosch
$7.01
20
1604643003 Compression Spring by Bosch
$7.01
60
1604643003 Compression Spring by Bosch
$7.01
750
1602025030 Auxiliary Handle by Bosch
$19.68
10
1602025030 Auxiliary Handle by Bosch
$19.68
750
2607950511 Wrench | Genuine OEM Bosch Part
$4.89
20
2607950511 Wrench | Genuine OEM Bosch Part
$4.89
801
1607000189 Brush Holder by Bosch
$9.32
817
1600210033 O-ring | Genuine OEM Bosch Part
$3.91
029
1600210033 O-ring | Genuine OEM Bosch Part
$3.91
888
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

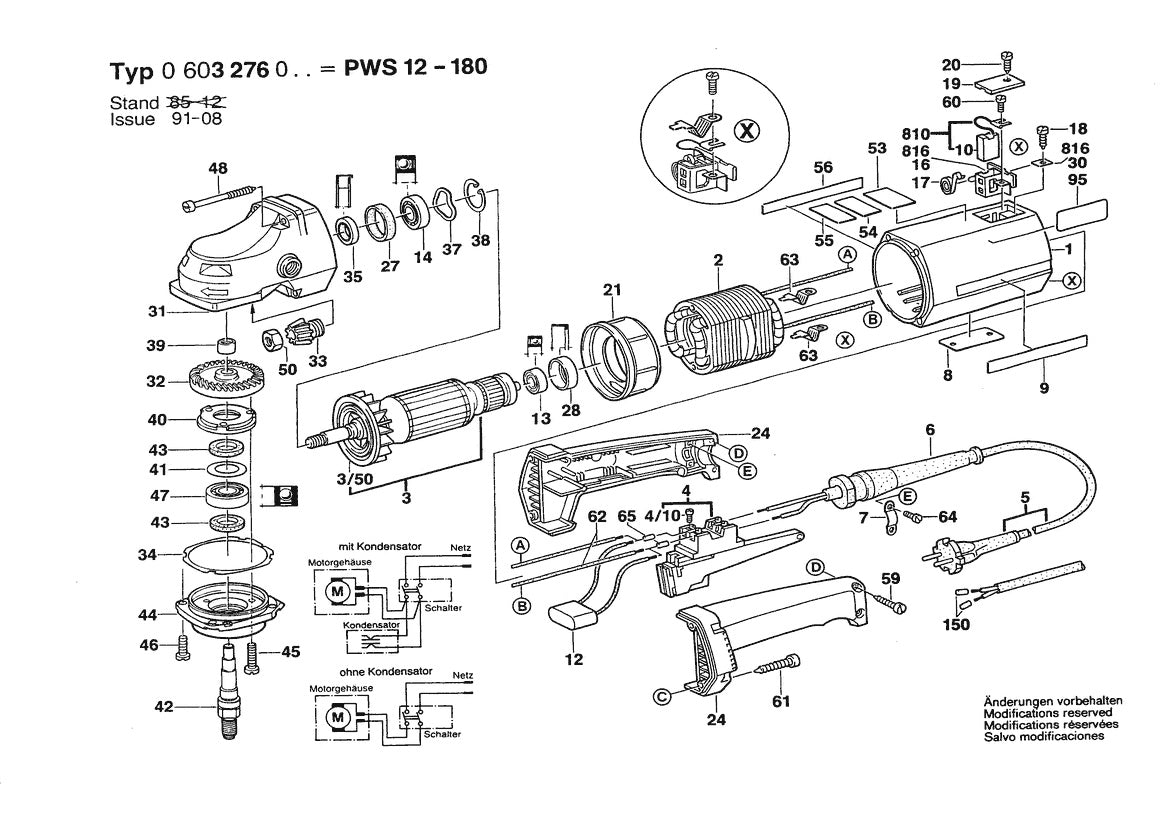

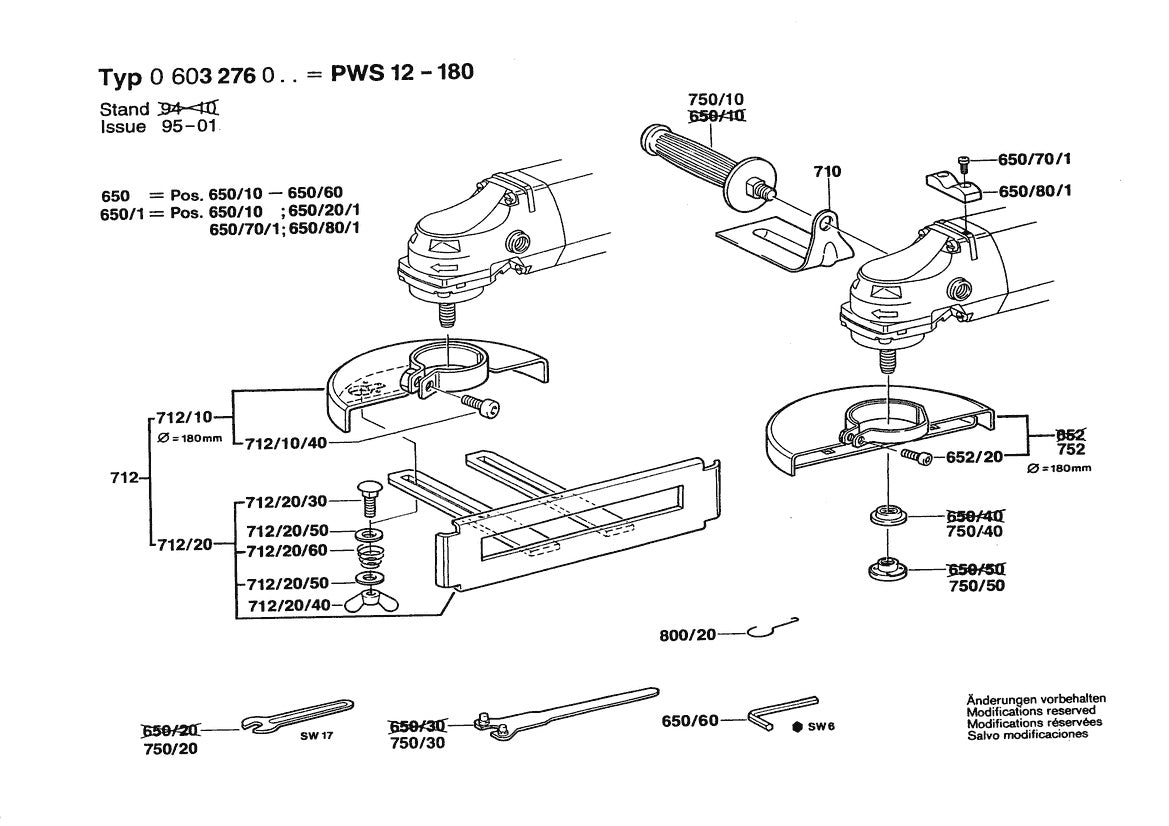

View the Bosch 603276039 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
