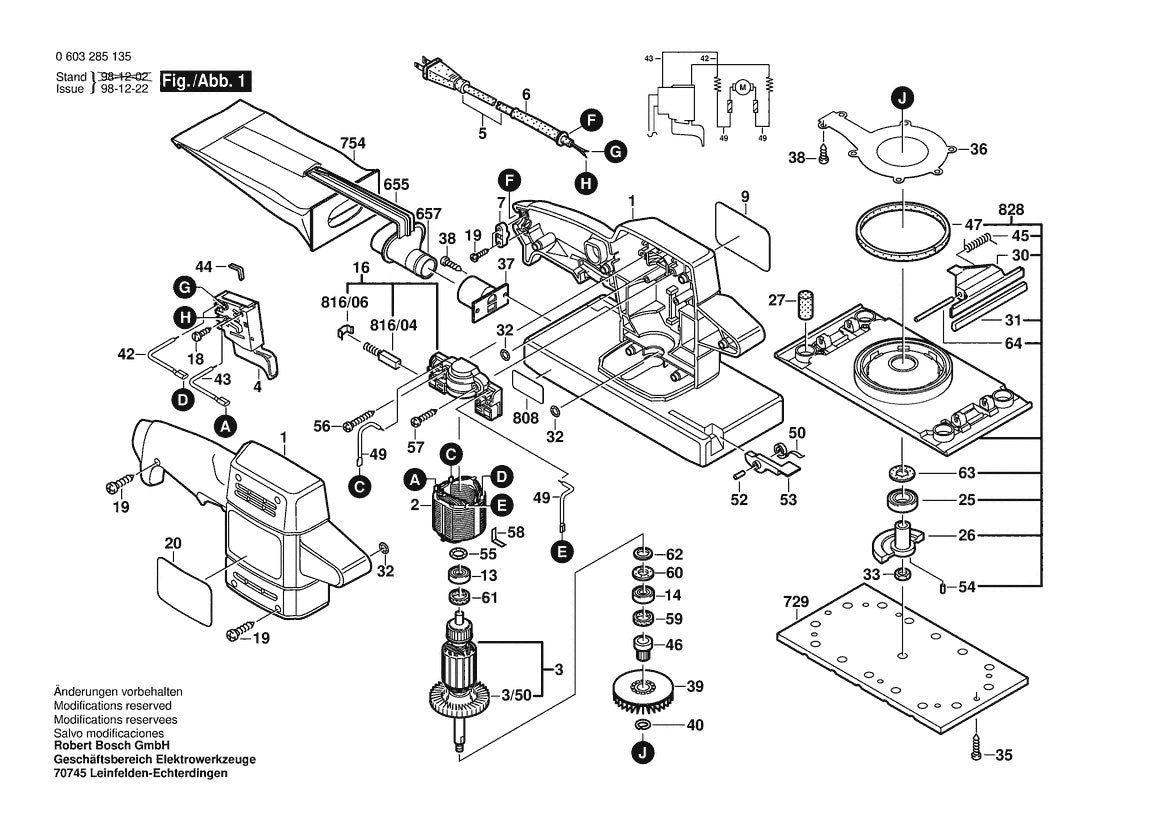

603285135 Bosch Sander Parts Diagram

603285135 Bosch Sander Parts Diagram

  • 603285135 Bosch Sander Parts Diagram
1 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600703008 Grommet | Genuine OEM Bosch Part
$3.91
13
1900905044 Deep-groove Ball Bearing by Bosch
$7.01
14
1619P01511 Ball Bearing by Bosch
$4.89
16
2604337122 Brush Plate | Genuine OEM Bosch Part
$15.93
18
2603410001 Cheese Head Screw by Bosch
$4.89
34
2603490018 Screw | Genuine OEM Bosch Part
$3.91
35
2603410048 Threaded-furrow Screw by Bosch
$3.91
43
2604448118 Connecting Cable by Bosch
$3.91
44
2601022000 Damping Plate by Bosch
$3.91
49
2604448109 Elec. Cable W/connection by Bosch
$3.91
50
1604652004 Spiral Spring by Bosch
$3.91
57
2603490023 Torx Oval-head Screw by Bosch
$4.89
58
2601329057 Contact Strap by Bosch
$3.91
657
1610210075 O-ring | Genuine OEM Bosch Part
$4.89
816
2601322017 Ratchet Cap | Genuine OEM Bosch Part
$3.91
06
2601322017 Ratchet Cap | Genuine OEM Bosch Part
$3.91
