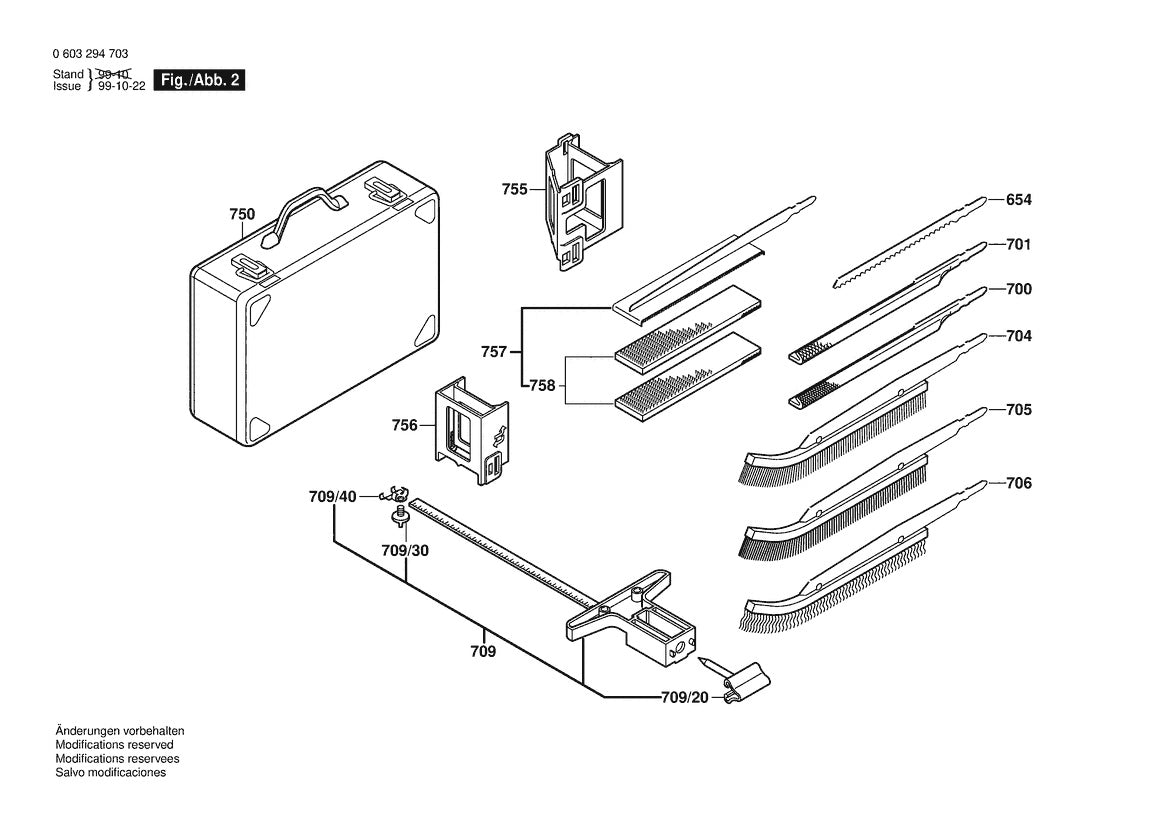

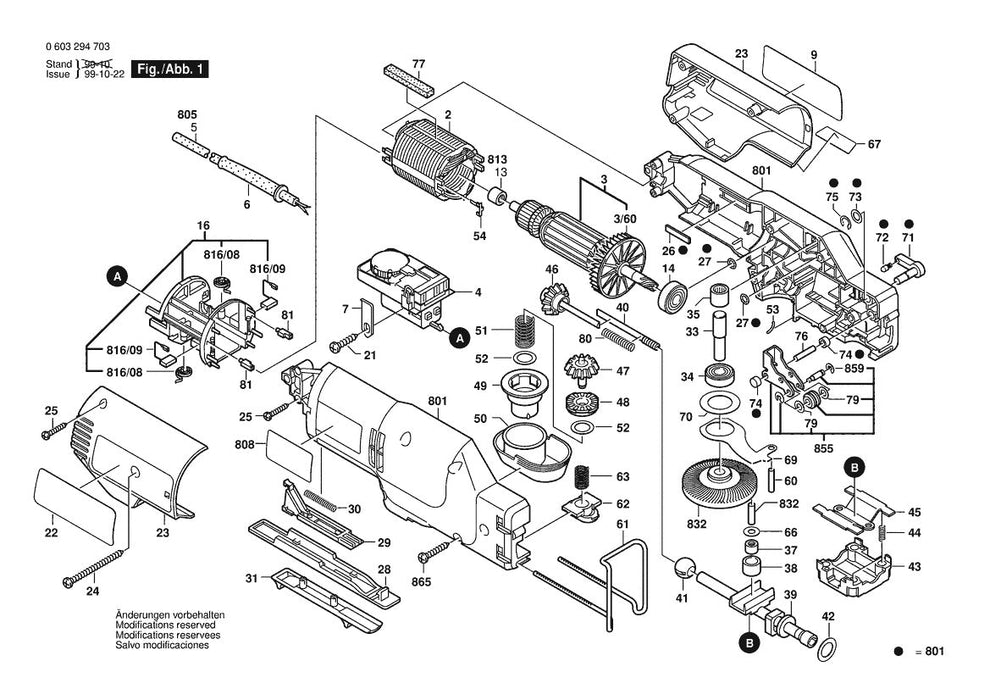

603294735 Bosch Jig Saw Parts Diagram

603294735 Bosch Jig Saw Parts Diagram

Skip to product information
1 of 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
2607200290 On-off Switch by Bosch
$99.23
6
2600703008 Grommet | Genuine OEM Bosch Part
$3.91
7
1601302017 Fastening Clamp by Bosch
$3.91
14
3600905039 Deep-groove Ball Bearing by Bosch
$12.34
21
2914201703 Torx Oval-head Screw by Bosch
$3.91
25
2603490018 Screw | Genuine OEM Bosch Part
$3.91
28
2608001005 Switch Rocker by Bosch
$4.89
29
2608001007 Switch Slide by Bosch
$3.91
30
2604611033 Compression Spring by Bosch
$3.91
31
2608001013 Switch Handle by Bosch
$3.91
35
2600917006 Needle Bushing by Bosch
$4.89
37
2600910005 Needle Bushing by Bosch
$3.91
42
2600101612 Shim | Genuine OEM Bosch Part
$4.89
42
2600116012 Shim | Genuine OEM Bosch Part
$3.91
43
2602316007 Support Plate by Bosch
$3.91
44
2604613000 Compression Spring by Bosch
$3.91
49
2606491008 Coupling | Genuine OEM Bosch Part
$3.91
50
2608040061 Rotary Handle by Bosch
$3.91
54
2601329037 Contact Spring by Bosch
$3.91
60
2917550099 Straight Pin by Bosch
$3.91
66
2600100613 Shim | Genuine OEM Bosch Part
$3.91
67
3601110243 Reference Plate by Bosch
$5.28
72
2600590006 Ratchet Cap | Genuine OEM Bosch Part
$4.89
73
2600100568 Shim | Genuine OEM Bosch Part
$4.89
73
2600100607 Shim | Genuine OEM Bosch Part
$3.91
74
2600506008 Tube | Genuine OEM Bosch Part
$3.91
76
2603100057 Straight Pin by Bosch
$3.91
79
2600100032 Shim | Genuine OEM Bosch Part
$3.91
81
2602099009 Holding-down-appliance by Bosch
$3.91
709
2601314004 Support Clamp by Bosch
$3.91
40
2601314004 Support Clamp by Bosch
$3.91
808
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
813
2600917002 Needle Bushing by Bosch
$3.91
816
160701417J Carbon Brush Set by Bosch
$9.41
09
160701417J Carbon Brush Set by Bosch
$9.41
865
2910611020 Sheet Metal Screw by Bosch
$4.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
