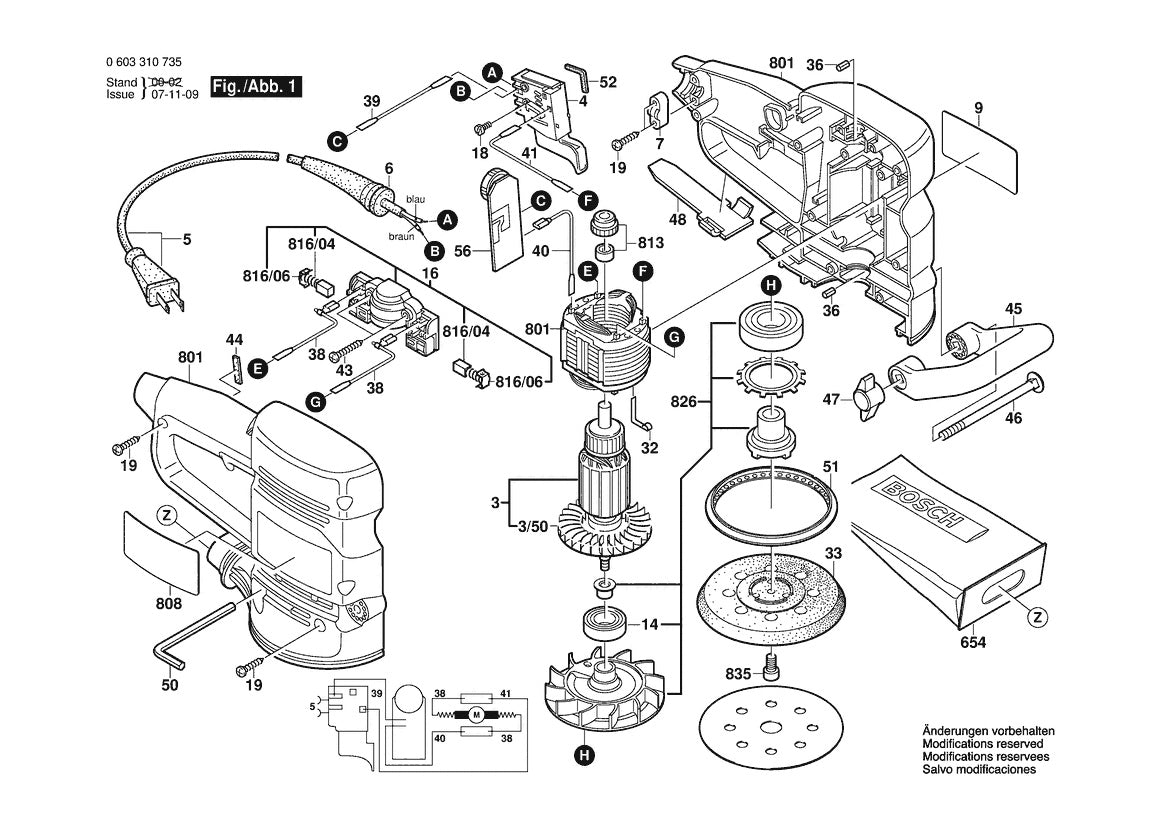

603310735 Bosch Sander Parts Diagram

603310735 Bosch Sander Parts Diagram

  • 603310735 Bosch Sander Parts Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2604011264 Armature | Genuine OEM Bosch Part
$69.56
3
2606610077 Fan | Genuine OEM Bosch Part
$5.28
50
2606610077 Fan | Genuine OEM Bosch Part
$5.28
4
2607200260 On-off Switch by Bosch
$12.46
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
2600703018 Grommet | Genuine OEM Bosch Part
$4.89
14
2600905034 Deep-groove Ball Bearing by Bosch
$19.68
16
2604337122 Brush Plate | Genuine OEM Bosch Part
$15.93
18
2603410001 Cheese Head Screw by Bosch
$4.89
32
2601329057 Contact Strap by Bosch
$3.91
35
2603414062 Hex Socket Head Cap Screw by Bosch
$4.89
36
1603100036 Rubber Buffer by Bosch
$3.91
38
2604448180 Connecting Cable by Bosch
$3.91
39
2604448181 Connecting Cable by Bosch
$3.91
40
2604448183 Connecting Cable by Bosch
$3.91
41
2603490023 Torx Oval-head Screw by Bosch
$4.89
43
2602380003 Seal Strip | Genuine OEM Bosch Part
$3.91
44
2910285226 Hex-socket-head Cap Screw by Bosch
$3.91
46
2608005043 Slide | Genuine OEM Bosch Part
$3.91
48
2610364015 Allen Wrench by Bosch
$4.89
50
2601022000 Damping Plate by Bosch
$3.91
52
2607230120 Speed Governor by Bosch
$31.26
56
2610917408 Hook And Loop Sander Pad by Bosch
$25.15
733-A
2610917407 Sander Pad - Extra Soft (hook by Bosch
$23.75
733-B
2610917409 Hook And Loop Sander Pad by Bosch
$25.15
733-C
2605104802 Housing Section by Bosch
$37.75
733-D
2605805005 Needle Bearing by Bosch
$5.38
801
2601322017 Ratchet Cap | Genuine OEM Bosch Part
$3.91
