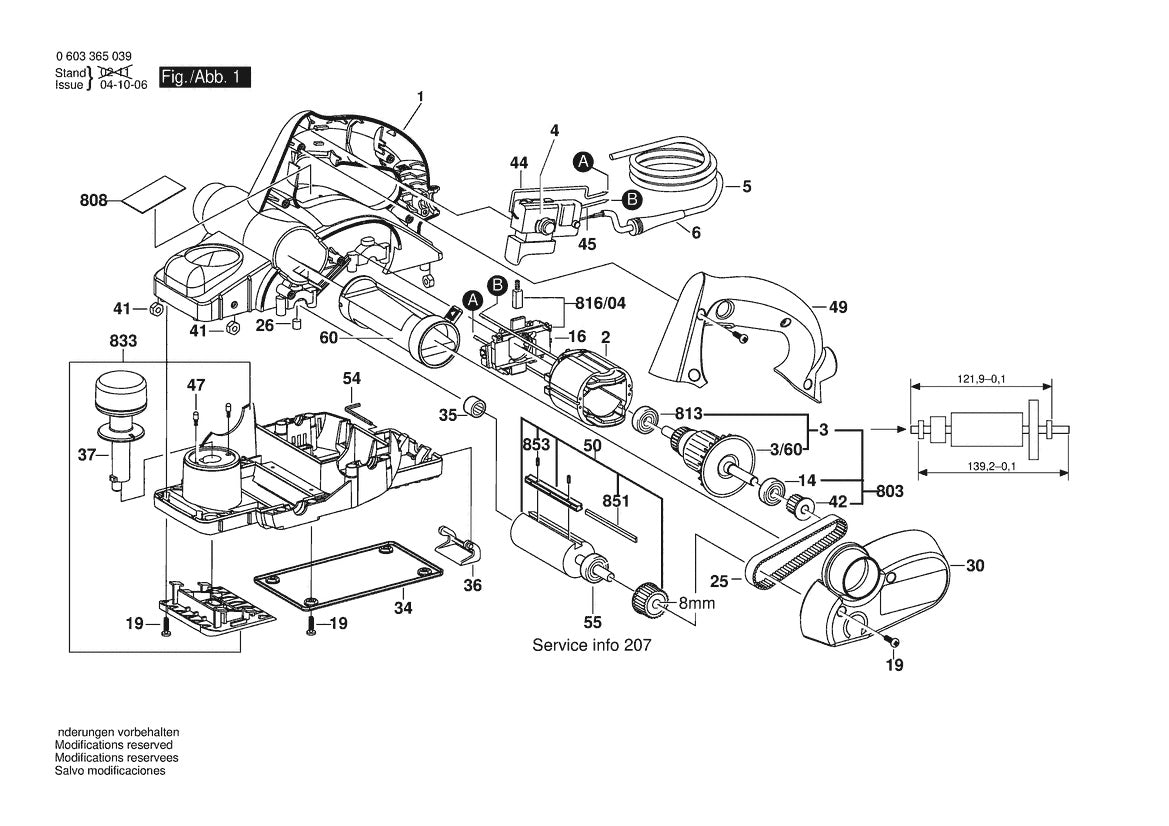

603365039 Bosch Planer Parts Diagram

603365039 Bosch Planer Parts Diagram

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2605105036 Housing | Genuine OEM Bosch Part
$43.33
2
2604220644 Field | Genuine OEM Bosch Part
$22.66
3
2604011214 Armature | Genuine OEM Bosch Part
$48.23
6
2600703018 Grommet | Genuine OEM Bosch Part
$4.89
9
2610998874 Manufacturers Nameplate by Bosch
$3.91
16
2604337087 Brush Plate | Genuine OEM Bosch Part
$12.34
25
2604736001 Toothed Belt by Bosch
$10.84
26
2603100056 Rubber Buffer by Bosch
$3.91
30
2605500194 Gear Cover | Genuine OEM Bosch Part
$12.57
34
2608000225 Base Plate | Genuine OEM Bosch Part
$9.32
35
1610910057 Needle Bushing by Bosch
$4.89
36
2601329104 Knife Guard | Genuine OEM Bosch Part
$4.89
42
2606625030 Toothed Belt Wheel by Bosch
$3.91
44
2604448221 Connecting Cable by Bosch
$3.91
45
2604448222 Connecting Cable by Bosch
$3.91
47
2600590006 Ratchet Cap | Genuine OEM Bosch Part
$4.89
49
2605133027 Handle Cover by Bosch
$10.73
50
2608584003 Planer Head | Genuine OEM Bosch Part
$55.00
54
1907950003 Hexagon-socket Key by Bosch
$3.91
803
2604010992 Armature With Fan by Bosch
$99.23
805
3604460555 Cord | Genuine OEM Bosch Part
$10.84
813
1610905025 Ball Bearing by Bosch
$7.08
851
PA1202 Micrograin Blades by Bosch
$32.20
853
2603400016 Adjusting Screw by Bosch
$3.91
900
2605411035 Dust Bag | Genuine OEM Bosch Part
$71.31
View full details
