607661102 Bosch Impact Wrench Parts Diagram

607661102 Bosch Impact Wrench Parts Diagram

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
6
2600905039 Deep-groove Ball Bearing by Bosch
$14.04
107
2916660009 C-clip | Genuine OEM Bosch Part
$3.91
129
1903230007 Ball | Genuine OEM Bosch Part
$4.89
76
2910611006 Sheet Metal Screw by Bosch
$3.91
81
1900210103 O-ring | Genuine OEM Bosch Part
$3.91
34
2600100586 Shim 0.2mm | Genuine OEM Bosch Part
$3.91
56
3603458008 Air Valve | Genuine OEM Bosch Part
$9.32
60
3600002000 Screen | Genuine OEM Bosch Part
$3.91
804
3607030030 Rotor Vanes | Genuine OEM Bosch Part
$27.69
5
3605700076 Bearing Flange by Bosch
$37.75
8
1900905028 Ball Bearing by Bosch
$34.04
44
2600210018 O-ring | Genuine OEM Bosch Part
$3.91
47
3600700032 Sleeve | Genuine OEM Bosch Part
$22.66
49
3601010006 Silencer Ring by Bosch
$3.91
53
3603201050 Needle | Genuine OEM Bosch Part
$3.91
74
3604611006 Spring | Genuine OEM Bosch Part
$3.91
55
3603132000 Valve Cone | Genuine OEM Bosch Part
$3.91
57
3600206006 Gasket | Genuine OEM Bosch Part
$3.91
64
2916011006 Washer | Genuine OEM Bosch Part
$3.91
65
2600210007 O-ring | Genuine OEM Bosch Part
$3.91
66
3600210036 O-ring | Genuine OEM Bosch Part
$3.91
68
1903230528 Ball | Genuine OEM Bosch Part
$3.91
69
3604616008 Spring | Genuine OEM Bosch Part
$3.91
70
3600105002 Gasket | Genuine OEM Bosch Part
$9.32
77
3601902001 Lever | Genuine OEM Bosch Part
$5.28
78
2917700040 Pin | Genuine OEM Bosch Part
$3.91
82
3608750027 Air Sleeve | Genuine OEM Bosch Part
$17.61
96
3601110039 Label (bosch) by Bosch
$5.28
877
3607030032 Lever Assembly by Bosch
$10.73
61
1900210306 O-ring 10x2 Mm by Bosch
$3.91
  • Due to uncertain tariff environment, certain dropship products may be subject to price changes post ordering.
View full details

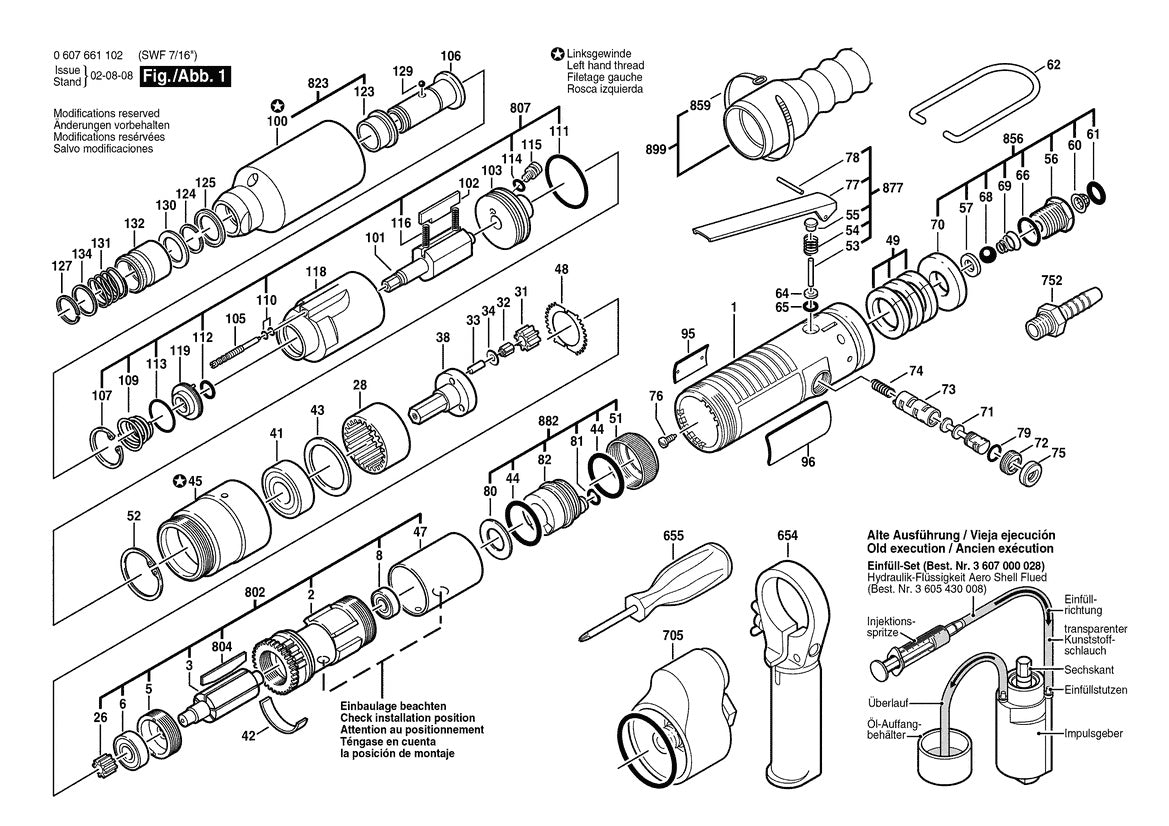

View the Bosch 607661102 parts diagram with labeled components and matching parts list. Easily find the part number you need to order.
