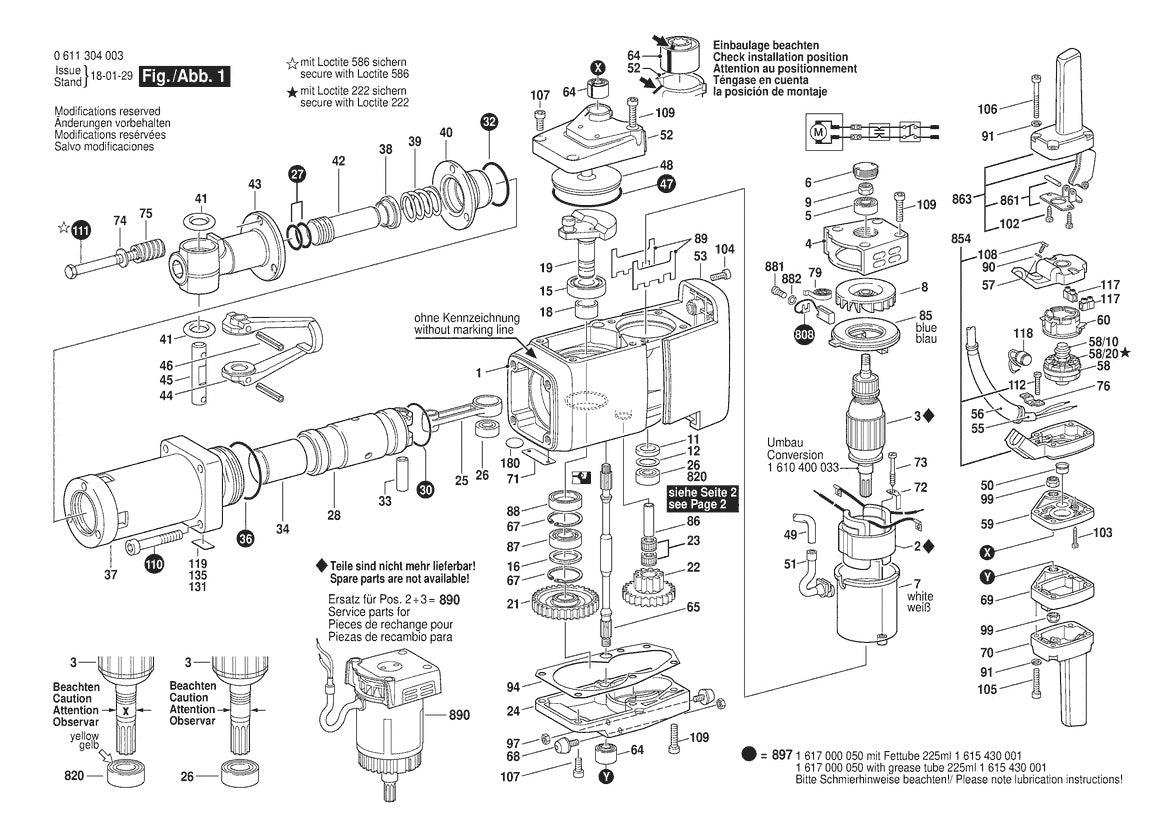

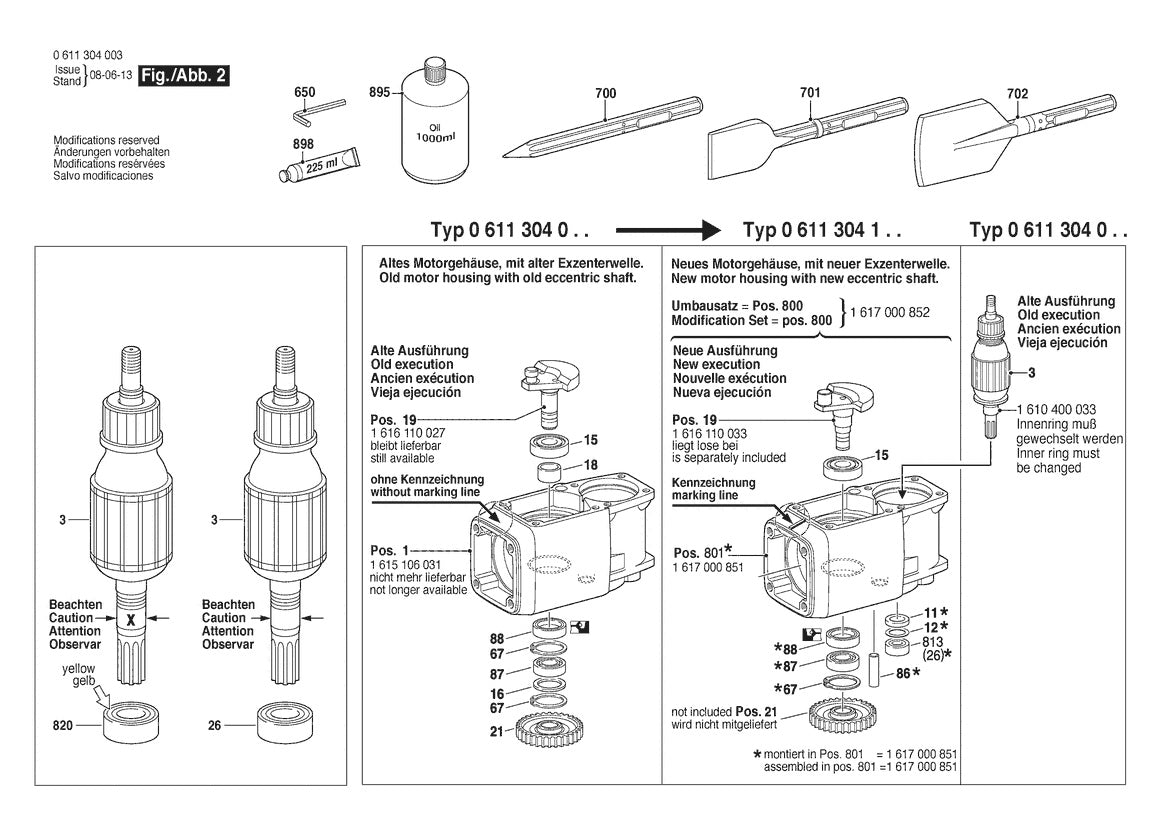

611304034 Bosch Hammer Drill Parts Diagram

611304034 Bosch Hammer Drill Parts Diagram

  • 611304034 Bosch Hammer Drill Parts Diagram
  • 611304034 Bosch Hammer Drill Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
1900452003 End Splice | Genuine OEM Bosch Part
$4.89
3
1900452003 End Splice | Genuine OEM Bosch Part
$4.89
4
1615805054 Bearing Housing by Bosch
$92.33
5
1610900015 Deep-groove Ball Bearing by Bosch
$43.77
6
1615500214 Screw Plug | Genuine OEM Bosch Part
$25.15
7
1615108006 Field Housing by Bosch
$34.04
9
1613313000 Hexagon Nut | Genuine OEM Bosch Part
$4.89
11
1610108013 Felt Washer | Genuine OEM Bosch Part
$4.89
12
1610102616 Supporting Disc by Bosch
$4.89
19
1616110027 Eccentric Shaft by Bosch
$245.09
21
1616318009 Cylindrical Gear by Bosch
$182.82
22
1616328036 Cylindrical Gear by Bosch
$157.65
23
1610913005 Needle-roller Assembly by Bosch
$8.27
25
1612001040 Connecting Rod by Bosch
$112.83
26
1610910035 Needle-roller Bearing by Bosch
$38.13
27
1610210033 O-ring | Genuine OEM Bosch Part
$4.89
28
1618700043 Hammer Piston by Bosch
$411.94
30
1614601039 Retainer | Genuine OEM Bosch Part
$4.89
32
1900210156 O-ring | Genuine OEM Bosch Part
$9.41
33
3613101500 Piston Pin | Genuine OEM Bosch Part
$8.27
34
1618710039 Striker | Genuine OEM Bosch Part
$60.81
36
1900210166 O-ring | Genuine OEM Bosch Part
$5.33
38
1610220009 Guide Bushing by Bosch
$25.39
39
1614619005 Compression Spring by Bosch
$7.08
40
1615700017 Intermediate Flange by Bosch
$110.62
41
1610210008 O-ring | Genuine OEM Bosch Part
$6.16
42
1613123003 Striker Pin | Genuine OEM Bosch Part
$93.23
43
1617000428 Tool Holder | Genuine OEM Bosch Part
$699.69
44
1618045026 Retaining Bracket by Bosch
$247.57
45
1613103004 Locking Bolt by Bosch
$60.21
46
2917760187 Clamping Sleeve by Bosch
$4.89
47
1900210172 O-ring | Genuine OEM Bosch Part
$10.95
48
1610516007 Locking Cover by Bosch
$19.87
49
1610707000 Insulation Tubing by Bosch
$3.91
50
3600421500 Protection Sleeve by Bosch
$3.91
52
1615500324 Fan Cover | Genuine OEM Bosch Part
$85.41
53
1600A00C0N Hood | Genuine OEM Bosch Part
$75.21
55
1610703011 Grommet | Genuine OEM Bosch Part
$17.80
1
1610703011 Grommet | Genuine OEM Bosch Part
$17.80
56
1615500212 Switch Cover by Bosch
$10.84
57
1617200108 On-off Switch by Bosch
$70.27
58
1610591001 Protective Cap by Bosch
$22.89
58
2910091118 Slotted Pan-head Screw by Bosch
$3.91
10
2910091118 Slotted Pan-head Screw by Bosch
$3.91
58
1615500330 Insulating Cap by Bosch
$4.89
20
1615500330 Insulating Cap by Bosch
$4.89
60
1617000429 Mounting Plate by Bosch
$14.18
61
1612026011 Switch-pawl | Genuine OEM Bosch Part
$7.08
62
1615132010 Handle | Genuine OEM Bosch Part
$43.77
63
1616334000 Rubber Torsion Bar by Bosch
$22.89
64
1613060005 Toothed Shaft by Bosch
$70.27
65
2916660023 C-clip | Genuine OEM Bosch Part
$4.89
67
1613465001 Rubber Buffer by Bosch
$6.16
68
1615700042 Intermediate Plate by Bosch
$157.65
69
1615132011 Handle | Genuine OEM Bosch Part
$15.93
70
1603435024 Sheet Metal Screw by Bosch
$3.91
73
2916160009 Disc Spring | Genuine OEM Bosch Part
$3.91
74
3614640501 Compression Spring by Bosch
$8.18
75
3611034500 Fastening Plate by Bosch
$4.89
76
1614652001 Spiral Spring by Bosch
$5.09
79
1610300033 Axle Pin | Genuine OEM Bosch Part
$22.66
86
1610283004 Oil Seal | Genuine OEM Bosch Part
$6.11
88
1611099004 Insulating Plate by Bosch
$3.91
89
2916681005 Spring Lock Washer by Bosch
$4.89
90
1611015021 Sealing Plate by Bosch
$5.09
94
3613313500 Hexagon Nut | Genuine OEM Bosch Part
$4.89
99
2910211025 Sheet Metal Screw by Bosch
$3.91
102
2910211022 Sheet Metal Screw by Bosch
$3.91
103
2910141201 Hex-socket-head Cap Screw by Bosch
$4.89
104
2914551188 Screw | Genuine OEM Bosch Part
$4.89
105
2910141215 Screw | Genuine OEM Bosch Part
$4.89
106
2910141242 Hex-socket-head Cap Screw by Bosch
$4.89
107
2910611020 Sheet Metal Screw by Bosch
$4.89
108
2910021126 Cheese Head Screw by Bosch
$3.91
108.1
2910141248 Hex-socket-head Cap Screw by Bosch
$4.89
109
2910141356 Hex-socket-head Cap Screw by Bosch
$3.91
110
2914550034 Microencapsulated Screw by Bosch
$3.91
111
2910211236 Sheet Metal Screw by Bosch
$3.91
112
2910021154 Screw | Genuine OEM Bosch Part
$3.91
112.1
1617014113 Brush Set | Genuine OEM Bosch Part
$19.68
116
1617000426 Service Pack by Bosch
$84.57
800
1617000858 Switch Housing by Bosch
$43.77
801
1617000851 Motor Housing by Bosch
$950.50
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
