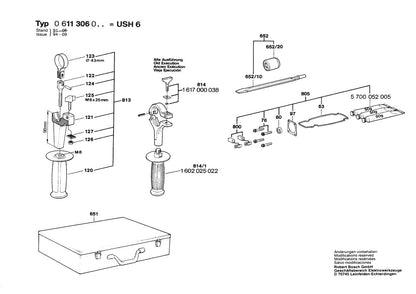

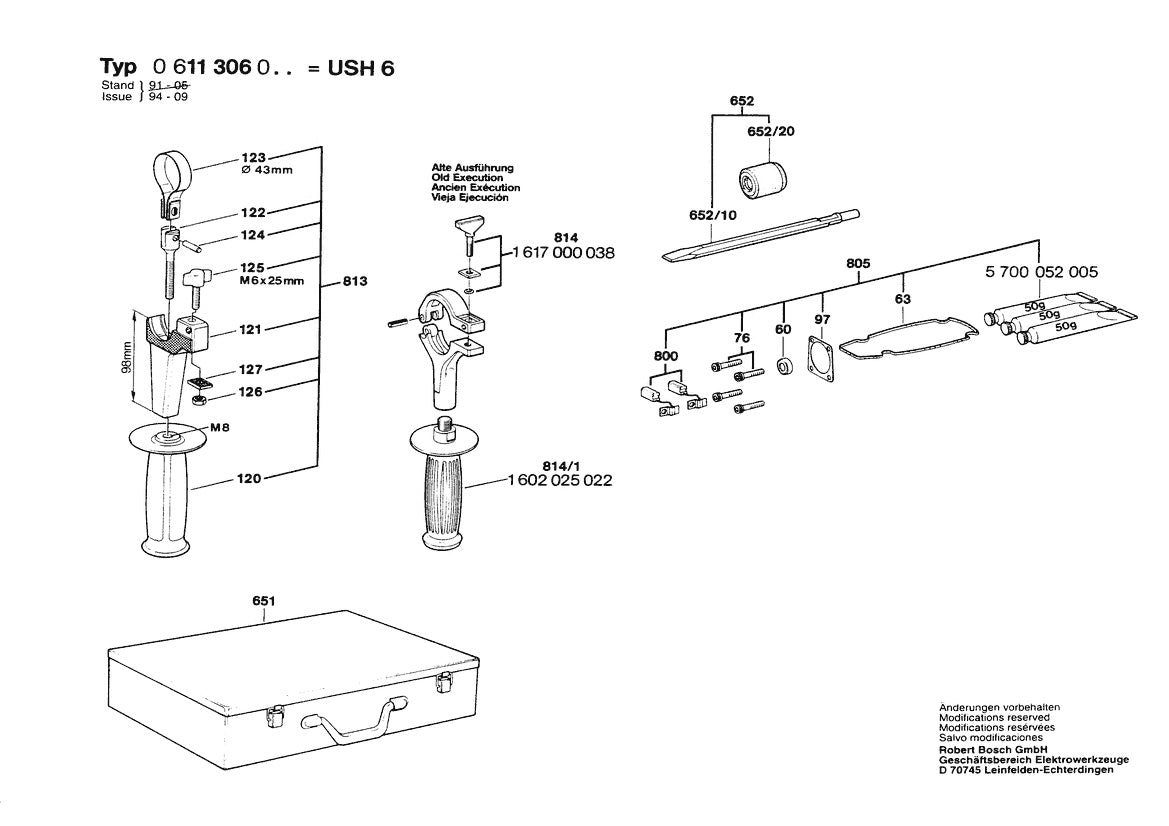

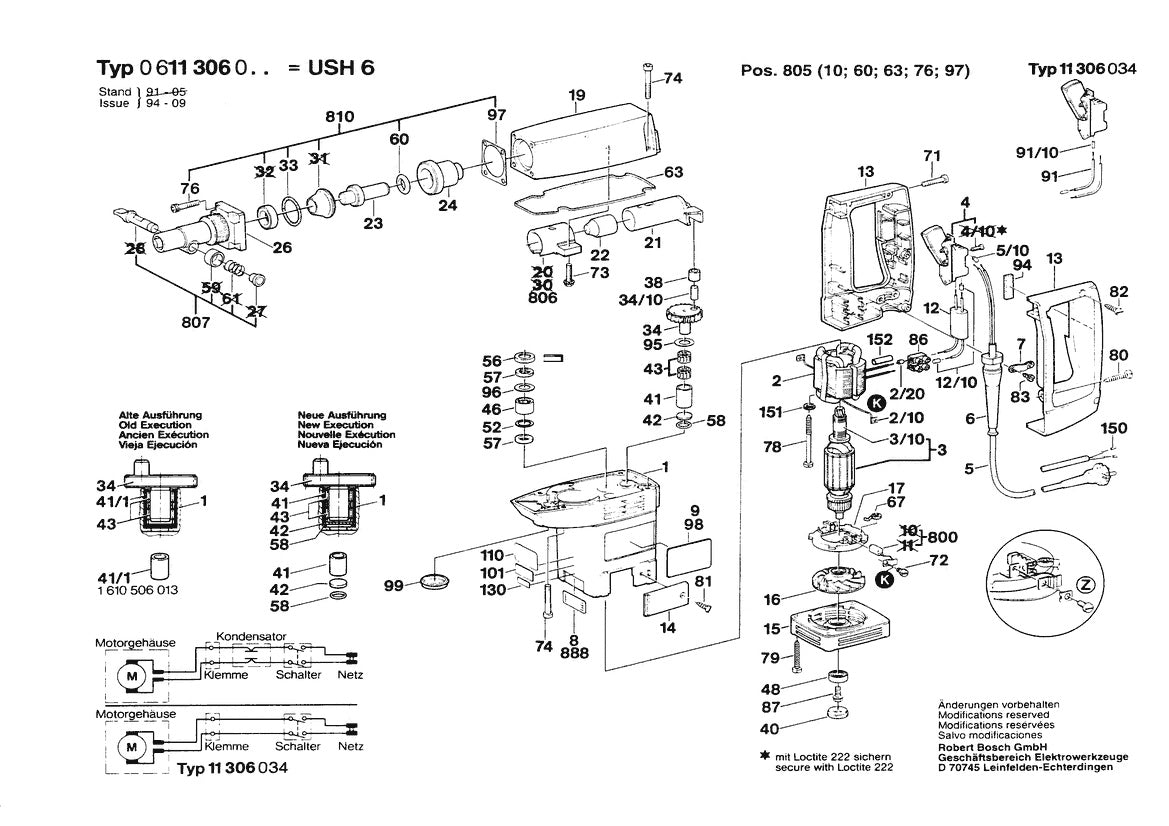

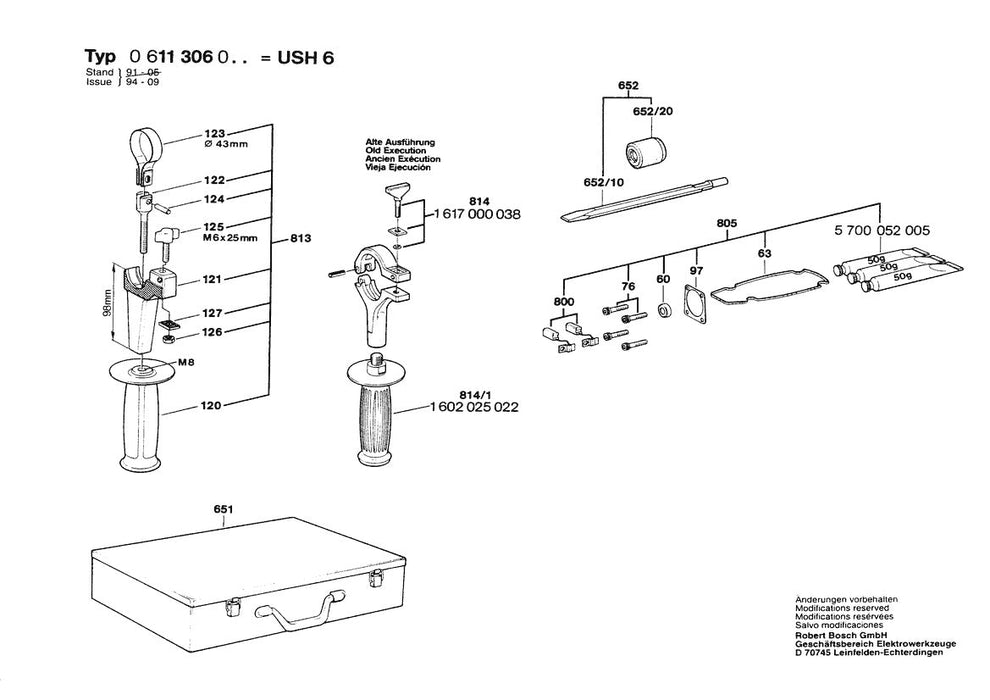

611306034 Bosch Demolition Hammer Parts Diagram

611306034 Bosch Demolition Hammer Parts Diagram

  • 611306034 Bosch Demolition Hammer Parts Diagram
  • 611306034 Bosch Demolition Hammer Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
4
2603410001 Cheese Head Screw by Bosch
$4.89
10
2603410001 Cheese Head Screw by Bosch
$4.89
5
1604460092 Power Cord | Genuine OEM Bosch Part
$17.80
5
1900452003 End Splice | Genuine OEM Bosch Part
$4.89
20
1900452003 End Splice | Genuine OEM Bosch Part
$4.89
6
3600703011 Cord Protector by Bosch
$4.89
12
2910021118 Cheese Head Screw by Bosch
$4.89
17
1614336000 Brush Holder by Bosch
$19.48
43
1610913029 Needle-roller Assembly by Bosch
$4.89
46
1600910011 Needle Bearing by Bosch
$19.48
48
1900905025 Deep-groove Ball Bearing by Bosch
$22.66
57
1610205002 Felt Seal | Genuine OEM Bosch Part
$3.91
58
1610210075 O-ring | Genuine OEM Bosch Part
$4.89
67
1604652006 Spiral Spring by Bosch
$3.91
74
2910141168 Cheese Head Screw by Bosch
$4.89
78
1603435024 Sheet Metal Screw by Bosch
$3.91
79
2912401037 Sheet Metal Screw by Bosch
$3.91
80
2910211036 Sheet Metal Screw by Bosch
$3.91
82
2910211011 Sheet Metal Screw by Bosch
$4.89
96
1610102017 Washer | Genuine OEM Bosch Part
$3.91
97
1611015020 Gasket | Genuine OEM Bosch Part
$3.91
101
1601110058 Reference Plate by Bosch
$3.91
A120
1612025019 Auxiliary Handle by Bosch
$6.23
121
1618040077 Support Clamp by Bosch
$19.48
122
1613521001 Threaded Pin by Bosch
$4.89
123
1611316003 Clamping Band by Bosch
$3.91
124
1613100012 Straight Pin by Bosch
$4.89
800
1617014108 Carbon-brush Set by Bosch
$21.54
A813
1612025020 Auxiliary Handle by Bosch
$25.15
