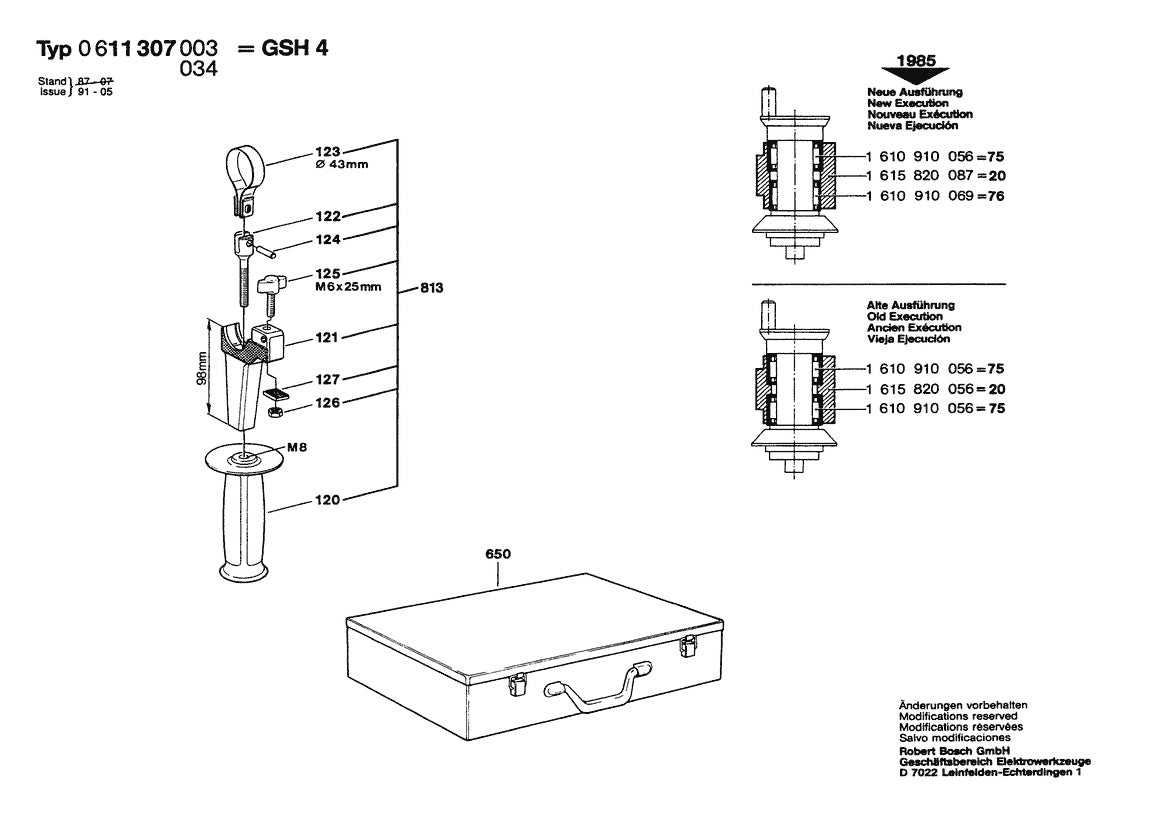

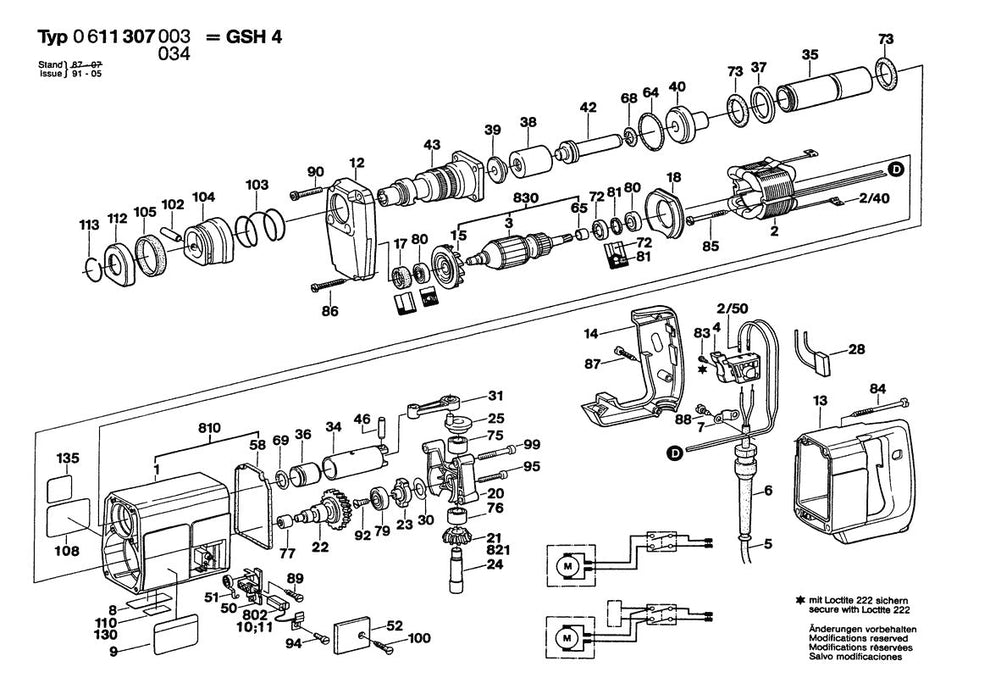

611307034 Bosch Demolition Hammer Parts Diagram

611307034 Bosch Demolition Hammer Parts Diagram

  • 611307034 Bosch Demolition Hammer Parts Diagram
  • 611307034 Bosch Demolition Hammer Parts Diagram
1 2
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
5
3604460555 Cord | Genuine OEM Bosch Part
$10.84
6
3600703011 Cord Protector by Bosch
$4.89
7
1601302013 Fastening Clamp by Bosch
$3.91
8
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
50
1604336017 Brush Holder by Bosch
$7.01
51
1604652006 Spiral Spring by Bosch
$3.91
58
1611015025 Sealing Frame by Bosch
$4.89
64
1900210145 Seal Ring | Genuine OEM Bosch Part
$3.91
68
1610210034 O-ring | Genuine OEM Bosch Part
$3.91
69
1610210058 O-ring | Genuine OEM Bosch Part
$3.91
72
1610283014 Radial-lip-type Oil Seal by Bosch
$14.04
77
1610910057 Needle Bushing by Bosch
$4.89
83
2603410001 Cheese Head Screw by Bosch
$4.89
84
1613412001 Sheet Metal Screw by Bosch
$3.91
86
2912401037 Sheet Metal Screw by Bosch
$3.91
87
2610912760 Sheet Metal Screw by Bosch
$3.91
90
2910141166 Hex-socket-head Cap Screw by Bosch
$3.91
94
2910021118 Cheese Head Screw by Bosch
$4.89
95
2910021134 Oval-head Screw by Bosch
$3.91
105
1610206016 Rubber Ring | Genuine OEM Bosch Part
$3.91
802
1617014108 Carbon-brush Set by Bosch
$21.54
813
1612025020 Auxiliary Handle by Bosch
$25.15
120
1612025019 Auxiliary Handle by Bosch
$6.23
121
1618040077 Support Clamp by Bosch
$19.48
122
1613521001 Threaded Pin by Bosch
$4.89
123
1611316003 Clamping Band by Bosch
$3.91
124
1613100012 Straight Pin by Bosch
$4.89
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
