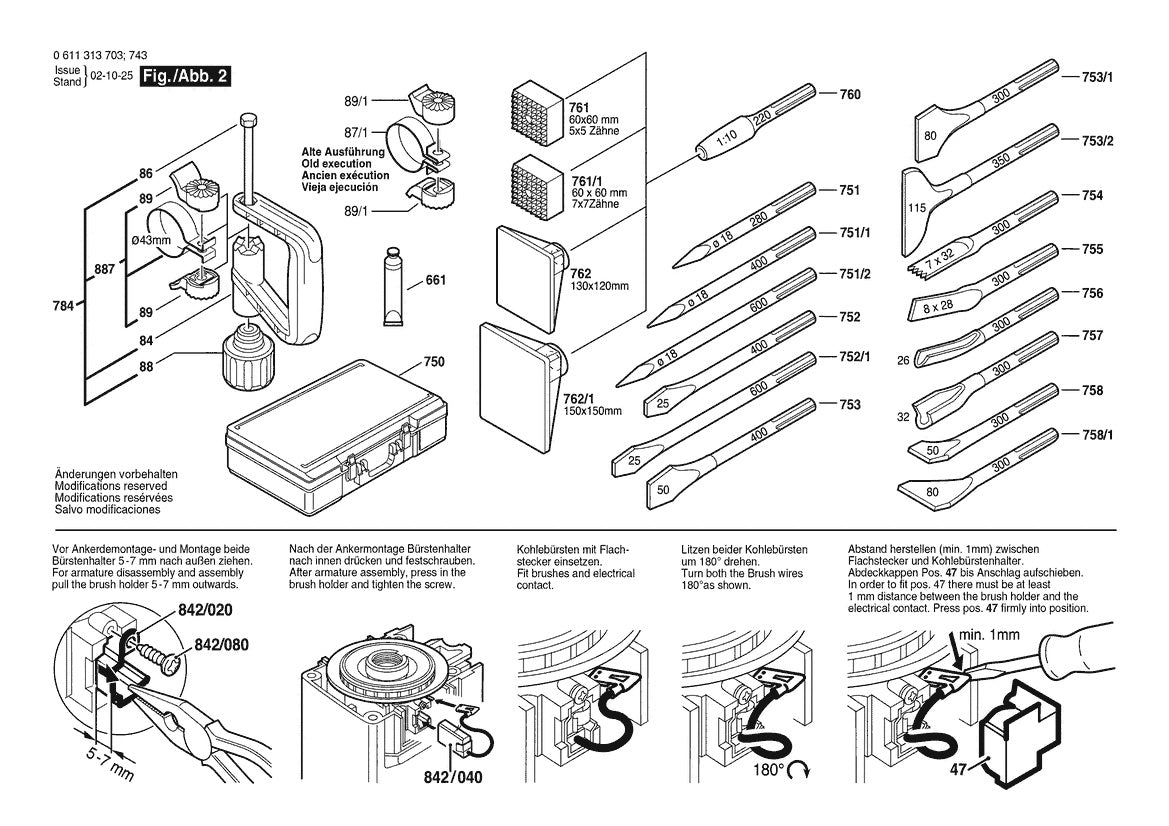

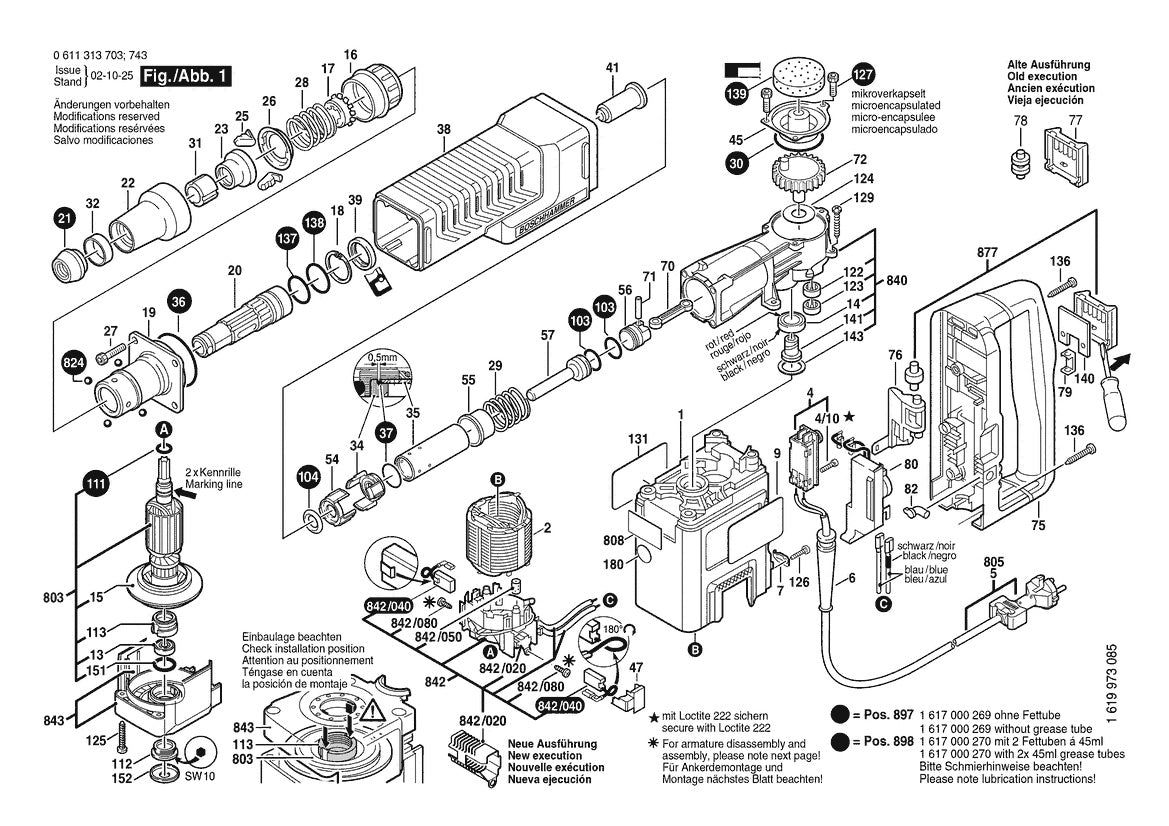

611313703 Bosch Demolition Hammer Parts Diagram

611313703 Bosch Demolition Hammer Parts Diagram

Skip to product information
1 of 2
Ref. Details
1
1615102142 Motor Housing by Bosch
$22.66
4
1617200048 Switch | Genuine OEM Bosch Part
$17.80
4
2910011088 Cheese Head Screw by Bosch
$4.89
10
2910011088 Cheese Head Screw by Bosch
$4.89
6
1610703053 Grommet | Genuine OEM Bosch Part
$4.89
6
3600703011 Cord Protector by Bosch
$4.89
7
1601302018 Fastening Clamp by Bosch
$4.89
13
1610900025 Deep-groove Ball Bearing by Bosch
$16.08
16
1610499016 Ratchet Sleeve by Bosch
$3.91
17
1610590002 Retaining Ring by Bosch
$3.91
18
2916660016 C-clip | Genuine OEM Bosch Part
$3.91
21
1610508017 Protective Cap by Bosch
$3.91
22
1610499015 Protection Sleeve by Bosch
$5.28
23
1610520001 Stop Sleeve | Genuine OEM Bosch Part
$14.18
25
1612300027 Stopping Device by Bosch
$10.84
26
1610290025 Indexing Disk by Bosch
$7.08
27
2910141201 Hex-socket-head Cap Screw by Bosch
$4.89
28
1614621000 Compression Spring by Bosch
$5.33
29
1614615002 Compression Spring by Bosch
$3.91
36
1610210022 O-ring | Genuine OEM Bosch Part
$3.91
37
1900210131 O-ring | Genuine OEM Bosch Part
$3.91
38
1615190073 Hood | Genuine OEM Bosch Part
$15.77
39
1610283027 Shaft Sealing Ring by Bosch
$5.28
41
1618710052 Striker Pin | Genuine OEM Bosch Part
$21.32
45
1615500294 Housing Cover by Bosch
$9.32
71
1613101005 Straight Pin by Bosch
$3.91
76
1612026029 Control Lever by Bosch
$5.28
80
1617233026 Speed Control by Bosch
$69.56
82
1615510000 Light Conductor by Bosch
$3.91
84
1615132044 Strap-shaped Handle by Bosch
$17.61
86
2911011270 Hexagon Screw by Bosch
$5.09
103
1610210091 O-ring | Genuine OEM Bosch Part
$3.91
104
1610210093 O-ring | Genuine OEM Bosch Part
$3.91
111
1610210081 O-ring | Genuine OEM Bosch Part
$4.89
113
1610501036 Bushing | Genuine OEM Bosch Part
$9.32
122
1610910088 Needle Bushing by Bosch
$6.11
125
2912401036 Sheet Metal Screw by Bosch
$3.91
126
2910211019 Sheet Metal Screw by Bosch
$4.89
127
2914551117 Microencapsulated Screw by Bosch
$3.91
129
2910211236 Sheet Metal Screw by Bosch
$3.91
136
1610210101 O-ring | Genuine OEM Bosch Part
$3.91
137
1610210103 O-ring | Genuine OEM Bosch Part
$3.91
138
2600210028 O-ring | Genuine OEM Bosch Part
$4.89
151
1615430010 Grease Tube | Genuine OEM Bosch Part
$6.16
661
2602025063 Auxiliary Handle by Bosch
$83.73
784
1607000227 Cord | Genuine OEM Bosch Part
$28.24
805
160111A3H3 Nameplate | Genuine OEM Bosch Part
$4.89
808
1617000239 Ball | Genuine OEM Bosch Part
$3.91
824
1617014122 Carbon-brush Set by Bosch
$17.80
842
1613212004 Rubber Buffer by Bosch
$3.91
040
1613212004 Rubber Buffer by Bosch
$3.91
842
2912401005 Sheet Metal Screw by Bosch
$3.91
050
2912401005 Sheet Metal Screw by Bosch
$3.91
