Description

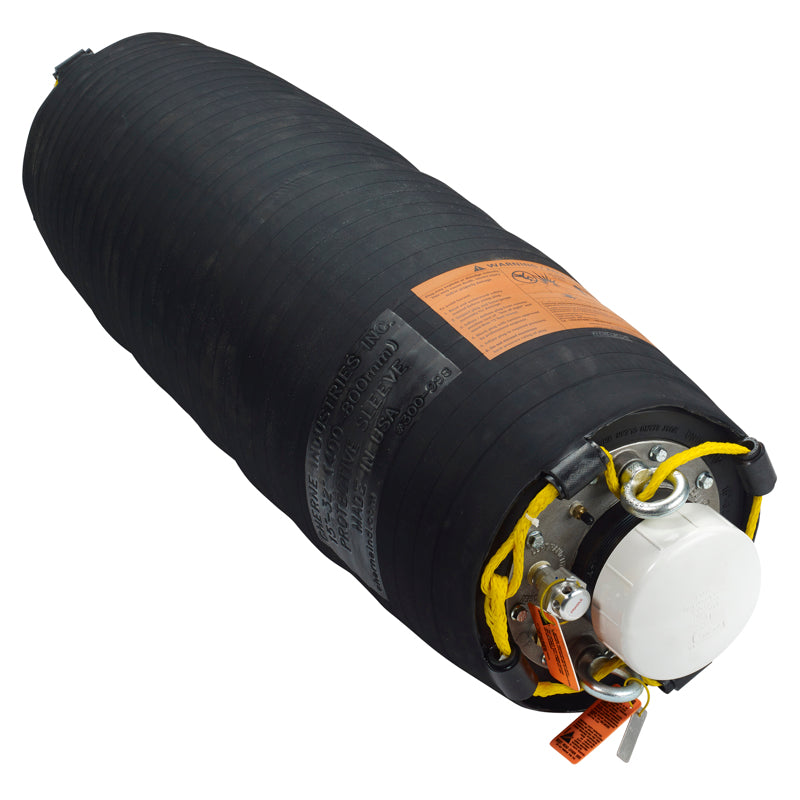

616328 I-Series Muni-Ball 15-32 In. I-Series W/6 In. Bypass, W/Sleeve By Cherne
Cherne I-Series Muni Ball Plugs are designed to meet the needs of U.S. and international markets in terms of size and expansion range. Cherne Industries is a global leader in pipe plugs and testing.
Features:
- Superior expansion range
- Full body cording for added durability
- Small deflated diameters
- All plugs through 24-60 in. easily fit through a 24 in. manhole frame
- 48-72 in. & 54-96 in. plugs fit through a 36 in. opening
- Aluminum end plates minimize rust
- 3/4 in. eyebolts on 15-32 in. and larger plugs
- Pressure relief valve on 15-32 in. and larger protects plugs from over inflation
- Flexible bypass hoses
Specifications:
| Nominal Size: |
15 in. - 32 in. (380 - 800 mm) |
| Deflated Length: |
48 in. (1219 mm) |
| Maximum Back Pressure: |
12.2 PSI |
| Deflated Diameter: |
14.30 in. |
| Inflation Thread: |
0.25in. & 0.5 in. |
| Inflation Pressure: |
25 psi (1,72 bar) |
| Usage Range: |
15 in. - 32 in. (375 - 800 mm) |
| Chain Eye Bolts: |
0.75 in. Eyebolt |
| Brand: |
Cherne |
| Product Type: |
I-Series Muni-Ball |
| Color: |
Black |
