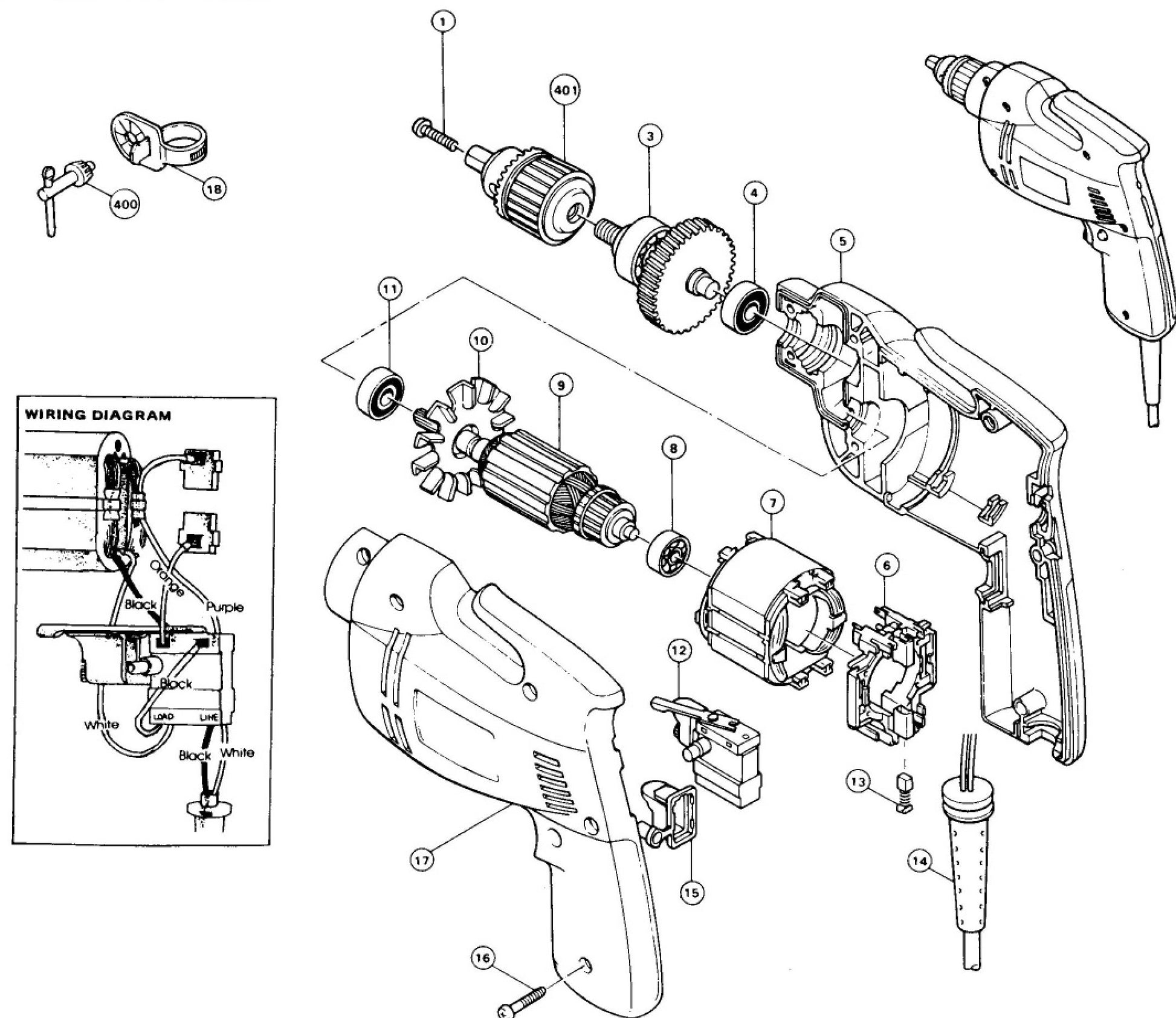

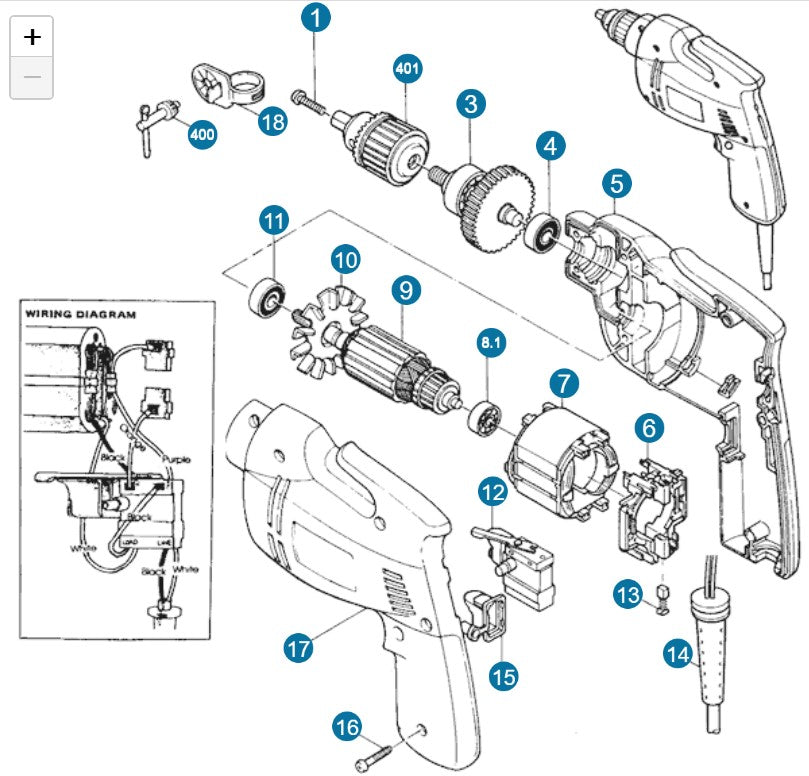

6404 Drill Assembly Parts By Makita

6404 Drill Assembly Parts By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2514481 SCREW M5X18, NHP1030 BY MAKITA
$3.99
3
1531179 GEAR, DP3720(T1) BY MAKITA
$24.84
3
1531153 GEAR COMPLETE, 6406 BY MAKITA
$33.01
4
2100258 BALL BEARING 627LLB, XWT04 BY MAKITA
$9.98
11
2100258 BALL BEARING 627LLB, XWT04 BY MAKITA
$9.98
5
A000018 HOUSING SET, 6404 BY MAKITA
$18.10
17
A000018 HOUSING SET, 6404 BY MAKITA
$18.10
6
6320684 BRUSH HOLDER RING, 6404 BY MAKITA
$16.56
7
6330360 FIELD, 6404 BY MAKITA
$28.06
8.1
2110162 B. BEARING 626LLB, DS4011 BY MAKITA
$12.13
8.2
2110219 BALL BEARING 607LLB, HR2475 BY MAKITA
$12.80
9
6117168 ARMATURE, 6404,T1 BY MAKITA
$33.93
9.1
6170910 ARMATURE, 6406 BY MAKITA
$41.52
10
2415037 FAN 52, 6404 BY MAKITA
$11.22
12
6518683 SWITCH, 6404 BY MAKITA
$21.57
13
CB70 CARBON BRUSH SET, 1949704 BY MAKITA
$10.11
14
6640644 CORD (2X18X8 SJ), BO4556 BY MAKITA
$17.64
15
4215645 DUST COVER, NHP1310 BY MAKITA
$16.52
16
2658756 TAPPING SCREW BT4X25, N1900B BY MAKITA
$0.34
18
4117807 KEY HOLDER,6402 BY MAKITA
$3.99
400
Call for Price call for price call for price
401
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
