8401 Drill Assembly Parts By Makita

8401 Drill Assembly Parts By Makita

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
1825524 HOUSING SET, 8401 BY MAKITA
$51.00
36
1825524 HOUSING SET, 8401 BY MAKITA
$51.00
3
6825024 CORD GUARD 885, HP2010N BY MAKITA
$5.99
4
6642133 CORD (2X16X8 SJT), 5900B BY MAKITA
$10.76
5
5310038 REV. SWITCH, 6510LVR BY MAKITA
$17.79
6
6870011 STRAIN RELIEF, 6013BR BY MAKITA
$3.99
7
9111335 P.H. SCREW M4X18, N9501B BY MAKITA
$3.99
8
CB401 CARBON BRUSH SET, 1950054 BY MAKITA
$12.79
9
6512556 SWITCH, 4014NV BY MAKITA
$55.77
11
1523550 CAM HOLDER COMPL., 8401 BY MAKITA
$53.70
12
2160028 STEEL BALL 4.8, WT01W BY MAKITA
$3.99
13
2230851 CAM B, 8401 BY MAKITA
$16.56
14
2539869 WASHER 13, 8401 BY MAKITA
$3.99
15
2539877 CUP WASHER 13, 8401 BY MAKITA
$5.99
22
2539877 CUP WASHER 13, 8401 BY MAKITA
$5.99
16
2314770 COMP. SPRING 25, 8401 BY MAKITA
$3.99
21
2314770 COMP. SPRING 25, 8401 BY MAKITA
$3.99
17
2262137 SPUR GEAR 41, 8401 BY MAKITA
$40.94
18
2571596 RING 24, 8401 BY MAKITA
$5.99
19
2262129 SPUR GEAR 32, 8401 BY MAKITA
$33.01
20
2141599 PLANE BEARING 13, 8401 BY MAKITA
$10.25
23
2112300 BALL BEARING, AC6202LLB,8401 BY MAKITA
$22.54
24
3222966 SPINDLE, 8401 BY MAKITA
$42.09
26
2514253 FLAT SCREW M6X22, NHP1310 BY MAKITA
$3.99
27
2564305 PIN 5.5, 8401 BY MAKITA
$11.39
28
2110162 B. BEARING 626LLB, DS4011 BY MAKITA
$12.13
30
2110162 B. BEARING 626LLB, DS4011 BY MAKITA
$12.13
29
2261173 GEAR COMPLETE 91834, 8401 BY MAKITA
$53.48
31
2110316 BALL BEARING 608LLB, 9227C BY MAKITA
$11.91
32
2418441 FAN, 6310 BY MAKITA
$5.99
33
5119915 ARMATURE ASS'Y 115V, 8401 BY MAKITA
$91.90
34
2100258 BALL BEARING 627LLB, XWT04 BY MAKITA
$9.98
35
6332118 FIELD 115V, 8401 BY MAKITA
$32.50
37
3222974 SHIFT ROD, 8401 BY MAKITA
$10.25
38
4144379 PUSH BUTTON, 8401 BY MAKITA
$3.99
43
4144379 PUSH BUTTON, 8401 BY MAKITA
$3.99
39
2160078 STEEL BALL 6.4, LXWT01 BY MAKITA
$3.99
40
4151439 GEAR SHIFT PIN, 8401 BY MAKITA
$3.99
41
4151421 GEAR SHIFT LEVER, 8401 BY MAKITA
$5.99
42
9111288 P.H. SCREW M4X16, LXPK01 BY MAKITA
$3.99
44
9111432 P.H. SCREW M4X22, 6211D BY MAKITA
$3.99
45
2538423 F. WASHER 14, HR2410 BY MAKITA
$3.99
1
Call for Price call for price call for price
25
Call for Price call for price call for price
View full details

Frequently asked questions

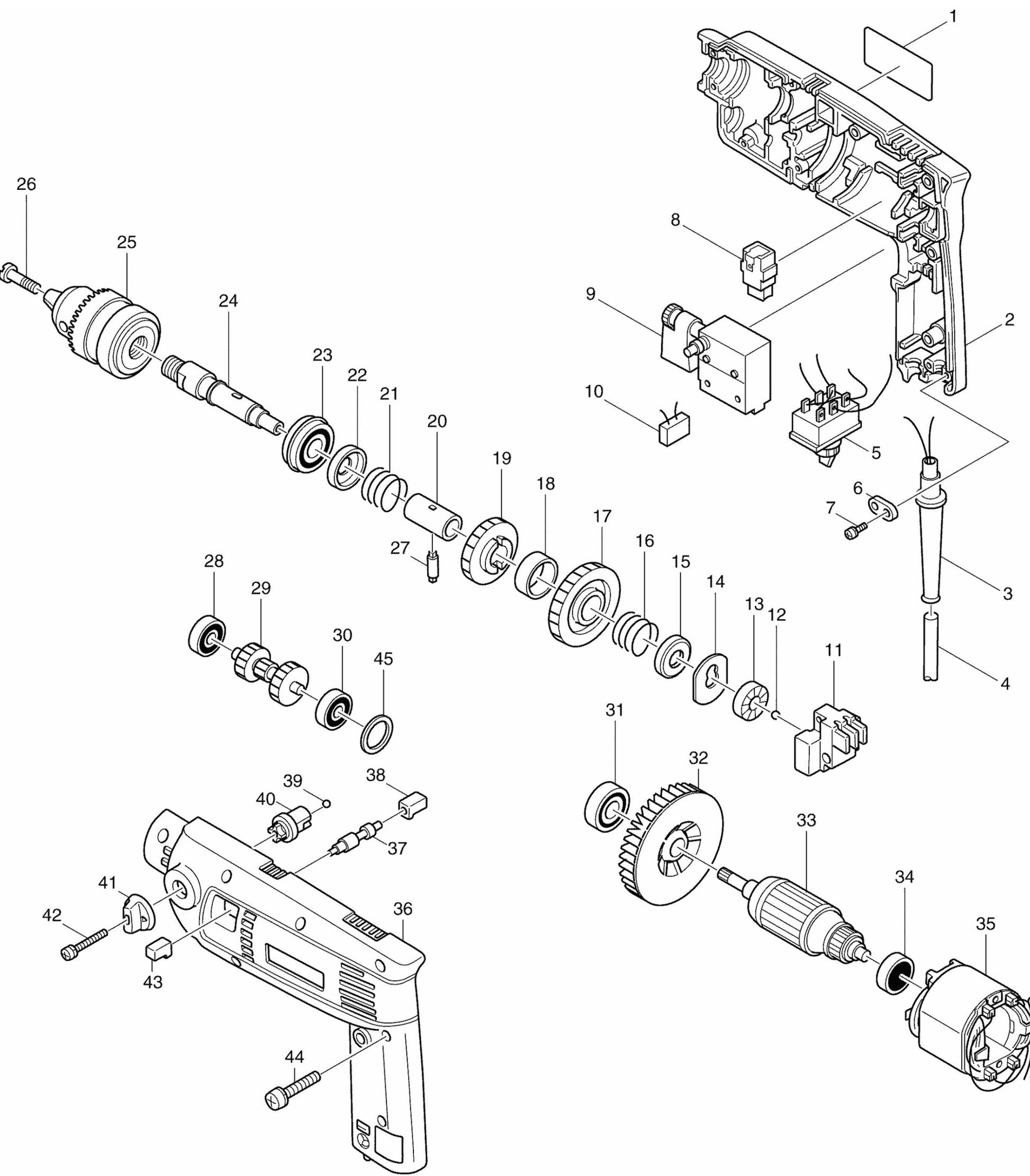

How do I use this diagram?
