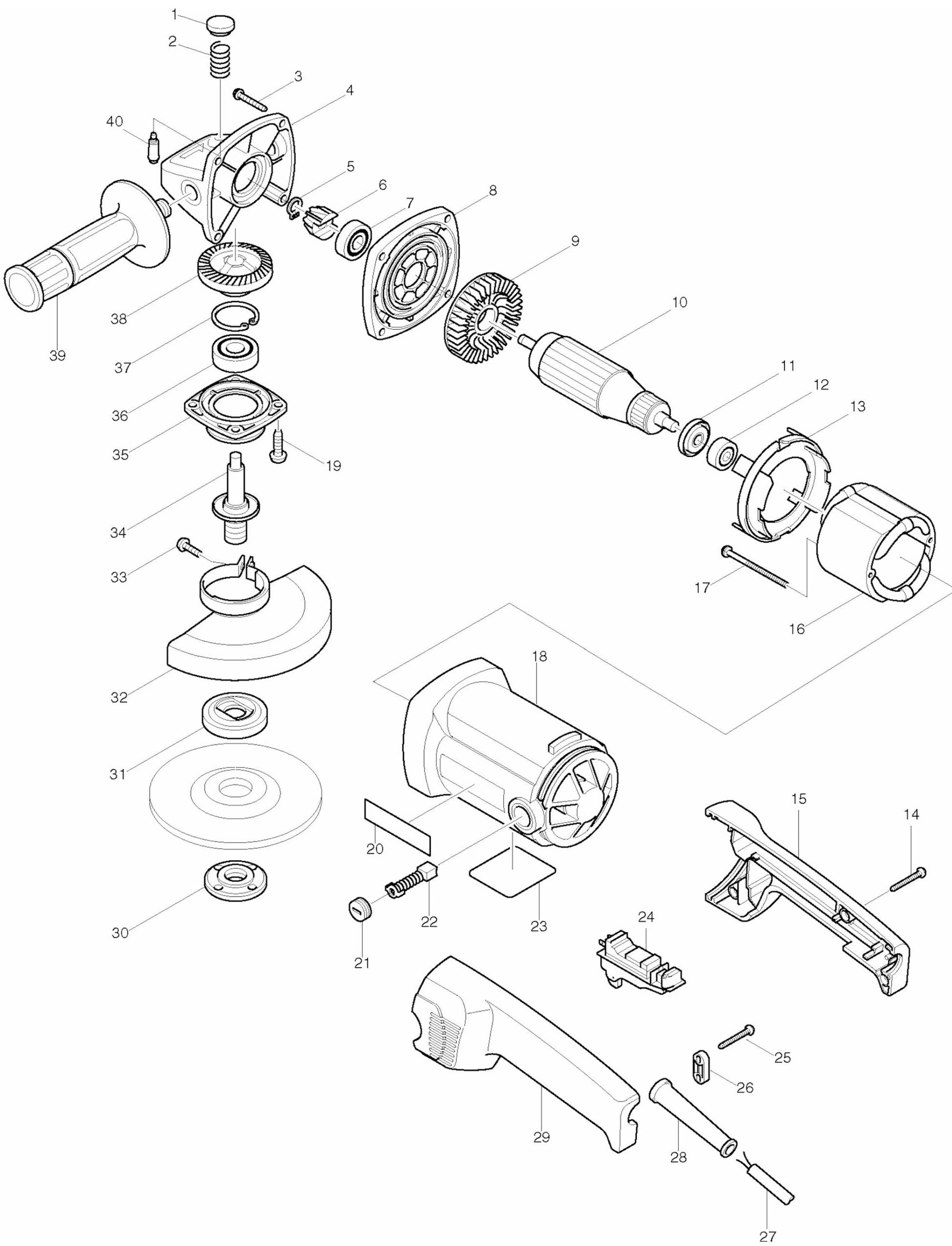

9015DB Angle Grinder Assembly Parts By Makita

9015DB Angle Grinder Assembly Parts By Makita

Skip to product information
1 of 1
100% genuine product
100% genuine product
Authorised dealer
Authorised dealer
Ref. Product details Price Qty Action
1
4164498 PIN CAP, 9015B BY MAKITA
$3.99
2
2330895 COMP. SPRING 12, 6832 BY MAKITA
$3.99
3
2661731 T. SCREW FLANGE PT5X3, GA7011C BY MAKITA
$3.99
4
1533749 GEAR HOUSING COMPLETE, 9015B BY MAKITA
$32.19
-
1599955 GEAR HOUSING CPL., 9015B BY MAKITA
$18.98
5
9610038 RETAINING RING S7, LXMT02 BY MAKITA
$3.99
6
1830535 SPIRAL BEVEL GEAR, 9015B BY MAKITA
$31.29
-
1830179 SPIRAL BEVEL GEAR, 9015DB,T1 BY MAKITA
$20.13
7
2111312 BALL BEARING 6001DDW,BO4556 BY MAKITA
$16.29
8
3173232 GEAR HOUSING COVER,9015B BY MAKITA
$20.22
-
3169926 GEAR HOUSING COVER, 9015BT1 BY MAKITA
$12.73
9
2400107 FAN 70, 9015A BY MAKITA
$5.99
10
5163312 ARMATURE ASS'Y 115V, 9015B BY MAKITA
$92.32
11
6816441 INSULATED WASHER, 9227C BY MAKITA
$3.99
12
2100054 BALL BEARING 608DDW, LS1016L BY MAKITA
$16.53
13
4164480 BAFFLE PLATE, 9015B BY MAKITA
$3.99
14
265995-6 2659956 Tapping Screw - Kett fits Makita HM0860C Demolition Hammer
$3.99
15
1832749 HANDLE SET, 9015A BY MAKITA
$22.10
-
1830103 HANDLE SET, 9016DB BY MAKITA
$12.50
16
5228469 FIELD ASS'Y 115V, 9016DB BY MAKITA
$49.88
17
2660298 T. SCREW FLANGE PT 5X65, 9005B BY MAKITA
$3.99
18
1835755 MOTOR HOUSING SET,9015A BY MAKITA
$29.60
-
1831599 MOTOR HOUSING, 9015A BY MAKITA
$18.98
-
1599963 MOTOR HOUSING CPL.,T1 BY MAKITA
$17.83
19
2650960 P.H. SCREW M5X16, 9015A BY MAKITA
$3.99
-
2660272 TAPPING SCREW M5X16, 5402NA BY MAKITA
$3.99
21
6437500 BRUSH HOLDER CAP, HM1100C BY MAKITA
$3.99
22
CB303 CARBON BRUSH SET, 1949966 BY MAKITA
$10.03
24
6511665 SWITCH,9015DB BY MAKITA
$31.51
-
6511283 SWITCH, 9005B BY MAKITA
$35.60
14
6870639 STRAIN RELIEF, BO5030 BY MAKITA
$3.99
26
6642654 CORD (2X16X8;SJ), 5007NBA BY MAKITA
$21.20
27
682505-8 6825058 Cord Guard, 5007F fits Makita HM1100C Demolition Hammer
$5.99
28
2513914 P.H.SCREW M5X16, 9564CV BY MAKITA
$3.99
15
1525730 SPINDLE CPL., 9015B BY MAKITA
$18.00
-
3169918 HOUSING W/O BEARING, 9015B BY MAKITA
$10.96
33
2111299 BALL BEARING 6201DDW, GA4030 BY MAKITA
$16.29
34
9621516 RETAINING RING R32, 9005B BY MAKITA
$3.99
35
1524920 GRIP 36 COMP. 9005BT2 BY MAKITA
$6.90
36
2564460 PIN 6, 9015A BY MAKITA
$5.99
37
2620864 RUBBER RING 29, 9015B BY MAKITA
$3.99
6
4421266 GASKET, 9015A BY MAKITA
$3.99
-
1634349 SWITCH LEVER, 9015DB BY MAKITA
$13.61
39
4173136 SWITCH BASE, 9015A BY MAKITA
$5.99
