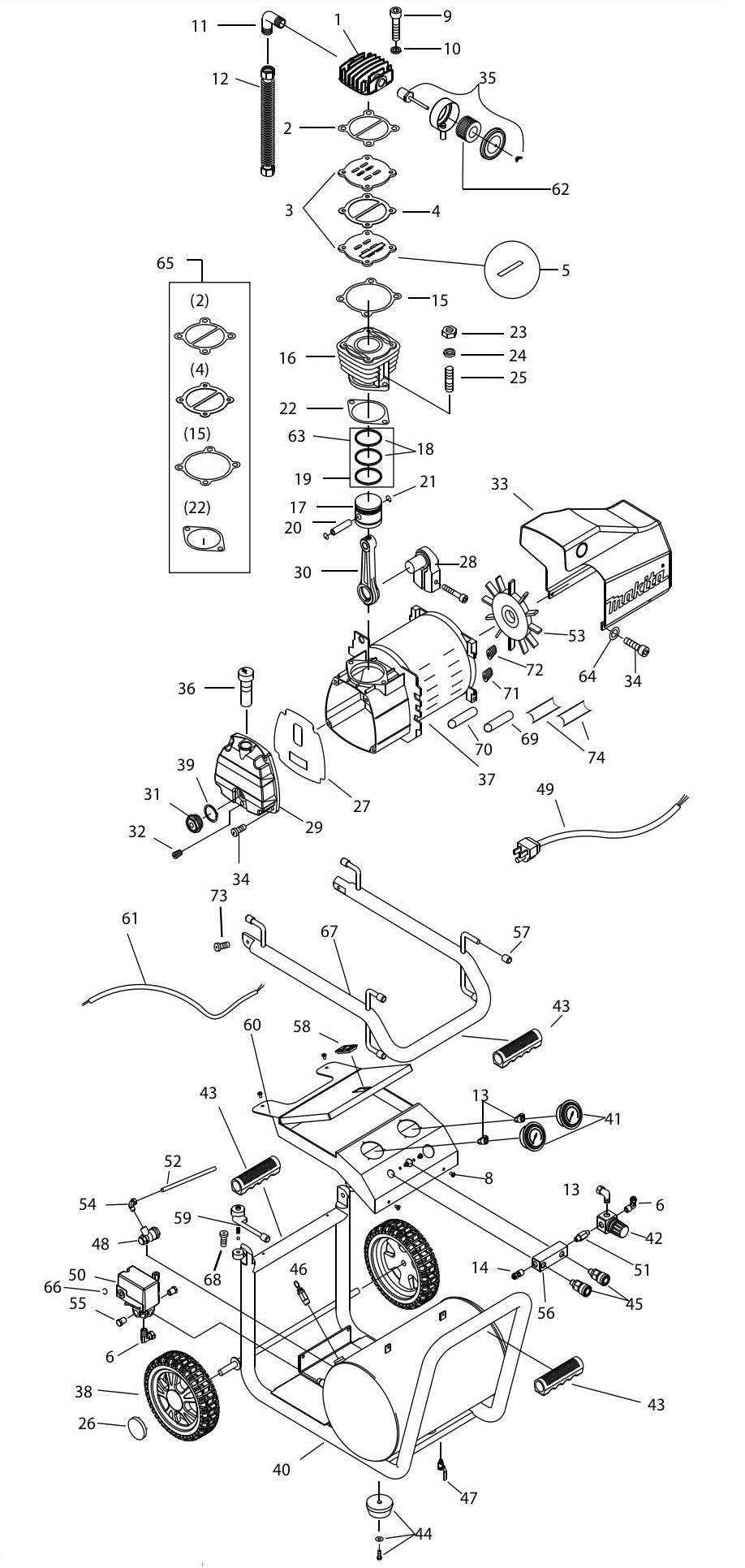

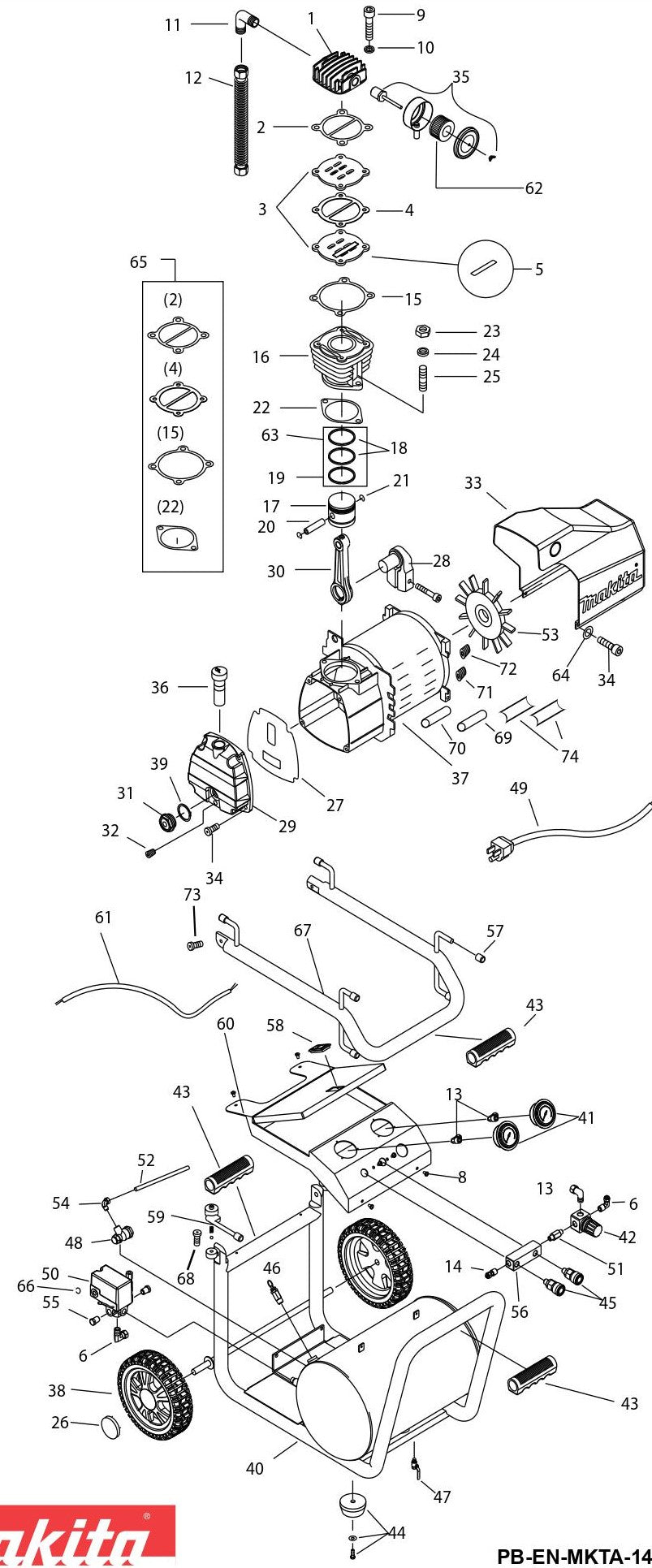

MAC5200 Air Compressor Assembly Parts

MAC5200 Air Compressor Assembly Parts

  • MAC5200 Air Compressor Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
101001-E 101001E Cylinder Head fits Makita MAC5200 Air Compressor
$30.71
2
211001-E 211001E Valve Seat To Head Gasket fits Makita MAC5200 Air Compressor
$11.96
3
104005-E 104005E Inlet & Exhaust Valve Seat fits Makita MAC5200 Air Compressor
$20.13
4
212006-E 212006E Inlet & Exhaust Valve Seat Gasket fits Makita MAC5200 Air Compressor
$11.96
5
125004-E 125004E Inlet & Exhaust Valve Plate fits Makita MAC5200 Air Compressor
$11.96
6
151209-E 151209E Elbow fits Makita MAC5200 Air Compressor
$11.96
8
365003-E 365003E Bolt For Console fits Makita MAC5200 Air Compressor
$5.75
9
352087-E 352087E Cylinder Head Bolt fits Makita MAC5200 Air Compressor
$5.75
10
382011-E 382011E Spring Washer For Head Bolt fits Makita MAC5200 Air Compressor
$3.85
11
151404-E 151404E Exhaust Elbow fits Makita MAC5200 Air Compressor
$11.96
12
230092S-E 230092SE Discharge Tube Assembly fits Makita MAC5200 Air Compressor
$34.16
13
151001-E 151001E Unloading Elbow fits Makita MAC5200 Air Compressor
$11.96
14
441025-E 441025E Nipple fits Makita MAC5200 Air Compressor
$11.96
15
213009-E 213009E Valve Seat To Cylinder Gasket fits Makita MAC5200 Air Compressor
$11.96
16
201013-E 201013E Cylinder fits Makita MAC5200 Air Compressor
$49.45
17
203002-E 203002E Piston fits Makita MAC5200 Air Compressor
$27.26
18
206002-E 206002E Compression Ring fits Makita MAC5200 Air Compressor
$11.96
19
207002-E 207002E Oil Control Ring fits Makita MAC5200 Air Compressor
$10.24
20
204002-E 204002E Piston Pin fits Makita MAC700 Air Compressor
$11.96
21
205001-E 205001E Piston Pin Snap Ring fits Makita MAC2400 Air Compressor
$11.96
22
214001-E 214001E Cylinder To Crankcase Gasket fits Makita MAC2400 Air Compressor
$11.96
23
371005-E 371005E Set Nut (Cylinder To Crankcase) fits Makita MAC2400 Air Compressor
$11.85
24
382005-E 382005E Spring Washer (Cyl To Crankcase) fits Makita MAC2400 Air Compressor
$11.96
25
358001-E 358001E Double Head Screw fits Makita MAC2400 Air Compressor
$6.79
26
403002-E 403002E Retainer Cap For Wheel fits Makita MAC5200 Air Compressor
$4.95
27
215001-E 215001E Crankcase Cover Gasket fits Makita MAC2400 Air Compressor
$11.96
28
302001-E 302001E Crankshaft fits Makita MAC5200 Air Compressor
$49.45
29
304014E CRANKCASE COVER, MAC5200 BY MAKITA
$29.55
30
316001-E 316001E Connecting Rod fits Makita MAC2400 Air Compressor
$27.26
31
321001-E 321001E Oil Sight Gauge fits Makita MAC2400 Air Compressor
$11.96
32
360001-E 360001E Oil Draining Plug fits Makita MAC2400 Air Compressor
$11.96
33
433011-E 433011E Motor Cover fits Makita MAC5200 Air Compressor
$27.26
34
352071-E 352071E Motor / Crankcase Cover Bolt fits Makita MAC5200 Air Compressor
$5.75
35
170013-E 170013E Air Filter Assembly fits Makita MAC5200 Air Compressor
$32.43
36
324003-E 324003E Oil Filler/Crankcase Breather fits Makita MAC5200 Air Compressor
Call for Price call for price call for price
37
251209-E 251209E Electric Motor / Crankcase fits Makita MAC5200 Air Compressor
$310.00
38
402015-E 402015E Wheel fits Makita MAC5200 Air Compressor
$27.26
39
217001-E 217001E Oil Gauge Gasket fits Makita MAC5200 Air Compressor
$11.96
40
401125-E 401125E Air Tank With Frame fits Makita MAC5200 Air Compressor
$353.00
41
411029-E 411029E Pressure Gauge fits Makita MAC5200 Air Compressor
$18.75
42
410029-E 410029E Regulator fits Makita MAC5200 Air Compressor
$83.80
43
435016-E 435016E Rubber Handle fits Makita MAC5200 Air Compressor
$11.96
44
434006-E 434006E Tank Foot Assembly fits Makita MAC5200 Air Compressor
$11.96
45
447013-E 447013E Quick Coupler (1/4”) fits Makita MAC5200 Air Compressor
$5.75
46
407001-E 407001E Safety Valve (1/4”) fits Makita MAC5200 Air Compressor
$18.75
47
413008-E 413008E Drain Cock fits Makita MAC5200 Air Compressor
$11.96
48
409004-E 409004E Check Valve fits Makita MAC5200 Air Compressor
$32.43
49
452015-E 452015E Power Cord fits Makita MAC5200 Air Compressor
$20.47
50
412025-E 412025E Pressure Switch fits Makita MAC5200 Air Compressor
$51.90
51
441001-E 441001E Regulator Nipple fits Makita MAC5200 Air Compressor
$11.96
52
228070-E 228070E Unloading Tube Assembly (1/4”) fits Makita MAC5200 Air Compressor
$11.96
53
431010-E 431010E Motor Fan fits Makita MAC5200 Air Compressor
$11.96
54
151002-E 151002E Unloading Elbow fits Makita MAC5200 Air Compressor
$11.96
55
360002-E 360002E Plug For Pr.Switch Manifold fits Makita MAC2400 Air Compressor
$11.96
56
421006-E 421006E Manifold Block fits Makita MAC5200 Air Compressor
$27.26
57
439008-E 439008E Rubber Cup fits Makita MAC5200 Air Compressor
$11.96
58
435015-E 435015E Tool Box Lock fits Makita MAC5200 Air Compressor
$13.80
59
435010-E 435010E Folding Handle Lock Set (L&R) fits Makita MAC5200 Air Compressor
$51.18
60
480039-E 480039E Tool Box fits Makita MAC5200 Air Compressor
$92.00
61
453076-E 453076E Wiring Harness (Motor -Pr. Switch) fits Makita MAC5200 Air Compressor
$27.26
62
171006-E 171006E Air Filter (Element Only) fits Makita MAC5200 Air Compressor
$20.47
63
RK5200-E RK5200E Ring Kit (#18 And 19) fits Makita MAC5200 Air Compressor
$32.43
64
382004-E 382004E Spring Washer For Motor Cover fits Makita MAC5200 Air Compressor
$3.85
65
GK5200-E GK5200E Gasket Kit (#2,4,15 And 22) fits Makita MAC5200 Air Compressor
$23.92
66
457002-E 457002E Strain Relief Clip fits Makita MAC5200 Air Compressor
$11.96
67
435006-E 435006E Folding Handle fits Makita MAC5200 Air Compressor
$93.40
68
351074-E 351074E Bolt For Folding Handle Lock fits Makita MAC5200 Air Compressor
$8.51
69
460008-E 460008E Start Capacitor fits Makita MAC5200 Air Compressor
$49.45
70
462009-E 462009E Run Capacitor fits Makita MAC5200 Air Compressor
$60.80
71
458003-E 458003E Overload Switch fits Makita MAC5200 Air Compressor
$31.74
72
459002-E 459002E Centrifugal Switch fits Makita MAC5200 Air Compressor
$27.26
73
353145-E 353145E Bolt fits Makita MAC5200 Air Compressor
$10.24
74
455015-E 455015E Capacitor Cover fits Makita MAC5200 Air Compressor
$28.98
-
181122-A 181122A Compressor Oil (1 Quart) fits Makita MAC5200 Air Compressor
$15.41
-
Call for Price call for price call for price
